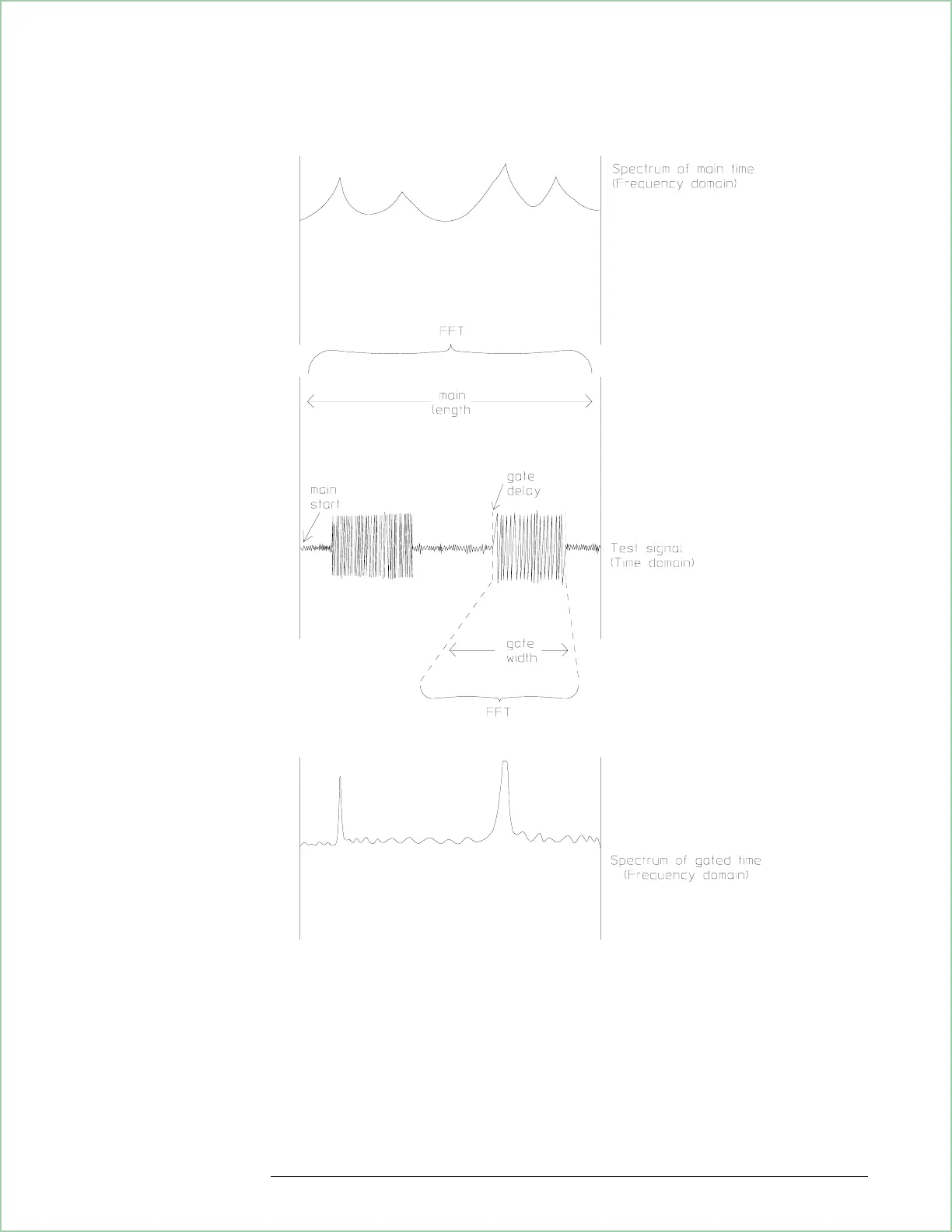

Time gating isolates a portion of a time domain signal.

In this example the gated portion contains two of the four spectral

components included within the total (main) test signal.

Note that gating has minimized leakage, resulting in more

distinct signals in the frequency domain.

Gating Concepts

21 - 3
