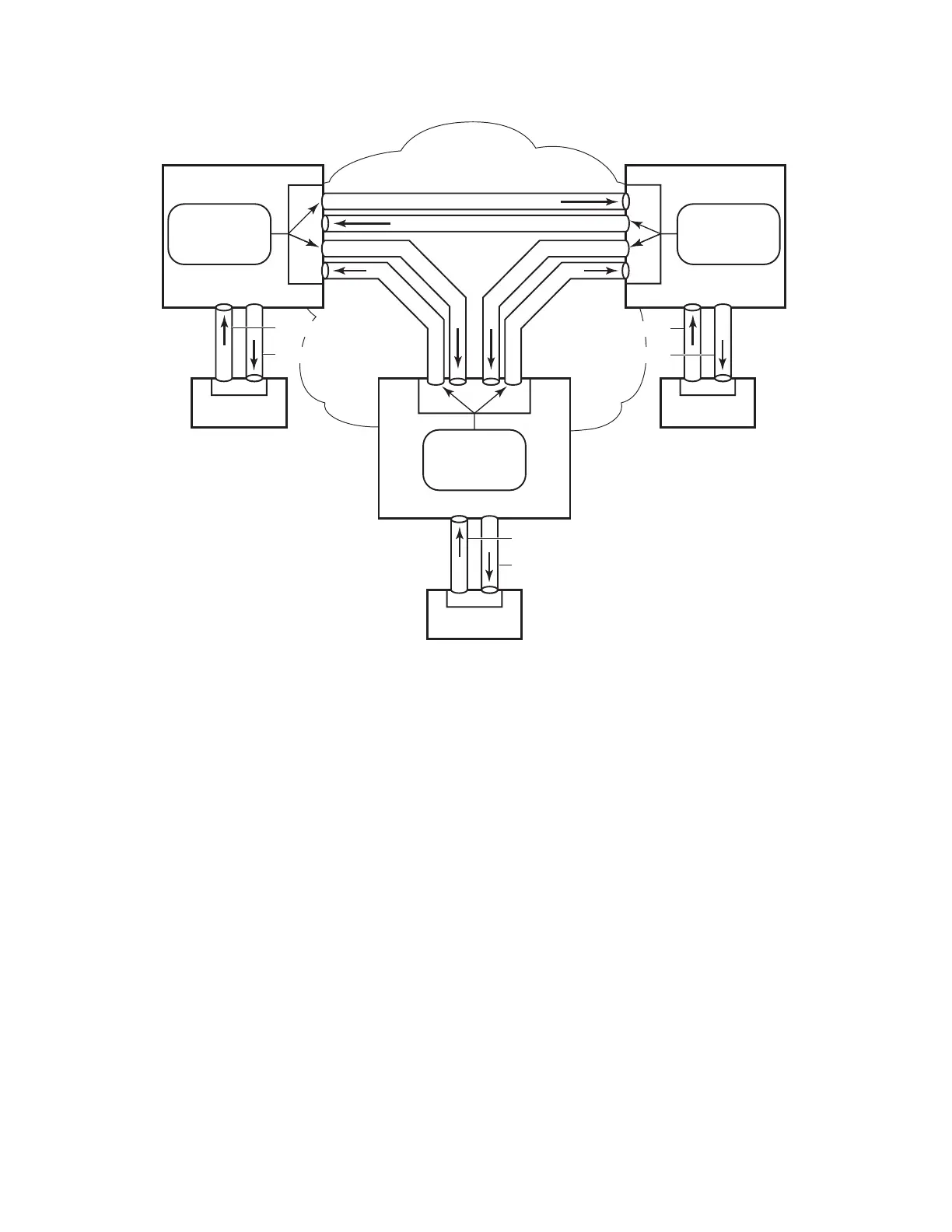

Figure 1: SDPs — Uni-Directional Tunnels
Use the following CLI syntax to create a mesh or spoke SDP bindings with a distributed VPLS
service. SDPs must be configured prior to binding. Refer to Configuring an SDP on page 68 for
information about creating SDPs.
Use the following CLI syntax to configure mesh SDP bindings:
CLI Syntax: config>service# vpls service-id
Mesh SD P
mesh-sdp sdp-id[:vc-id] [vc-type {ether|vlan}]
egress
filter {ip ip-filter-id|mac mac-filter-id}
mfib-allowed-mda-destinations
mda mda-id
vc-label egress-vc-label
ingress
filter {ip ip-filter-id|mac mac-filter-id}
vc-label ingress-vc-label
no shutdown
static-mac ieee-address
vlan-vc-tag 0..4094
