Alienware Area-51 AAT2250

To Next Page

To Previous Page

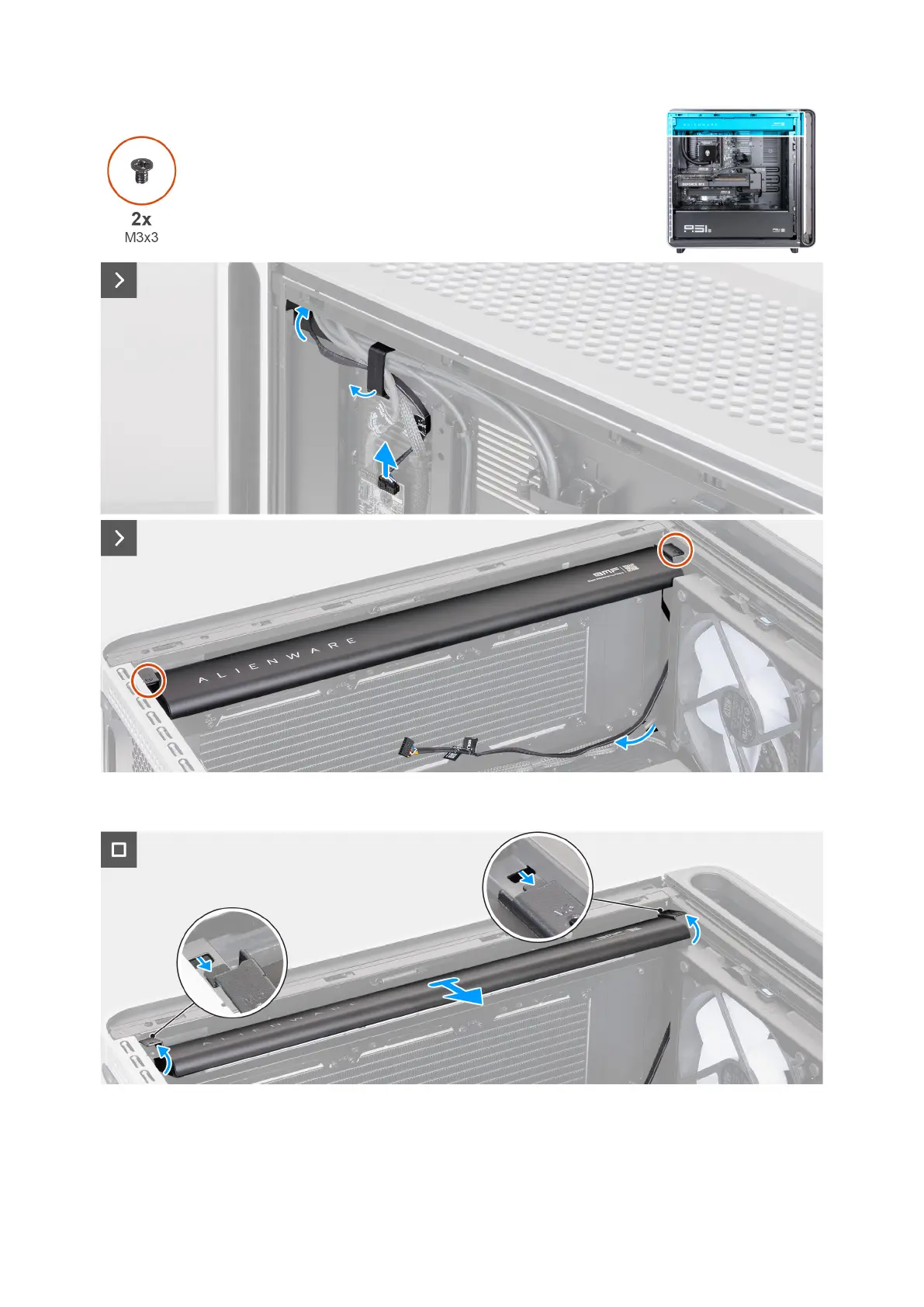

Figure 92. Removing the side light

Figure 93. Removing the side light

Steps

1. Disconnect the side-light cable from the connector (SIDE_LIGHT) on the AlienFX board on the right side of the chassis.

Removing and installing Field Replaceable Units (FRUs) 107
