2. Unlock the securing clip and remove the side-light cable from the securing clip.
3. Route the side-light cable through the opening on the chassis.
4. Lay the computer on the right side.
5. Remove the two screws (M3x3) that secure the side light to the chassis.
6. Rotate the side light to remove the tabs on the side light from the slots on the chassis.
7. Remove the side light off the chassis.
Installing the side light
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the side light and provide a visual representation of the installation procedure.

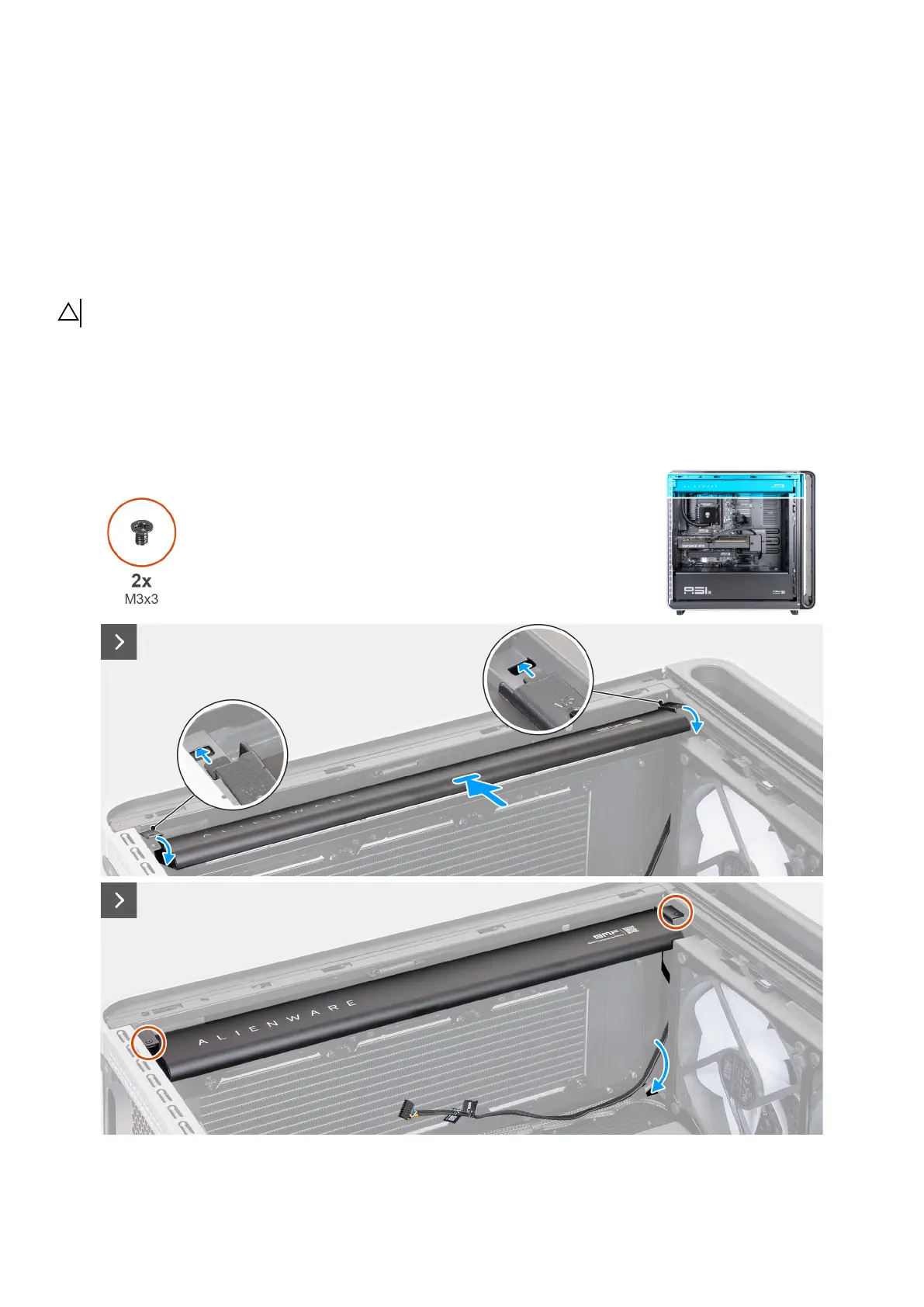

Figure 94. Installing the side light
108 Removing and installing Field Replaceable Units (FRUs)
