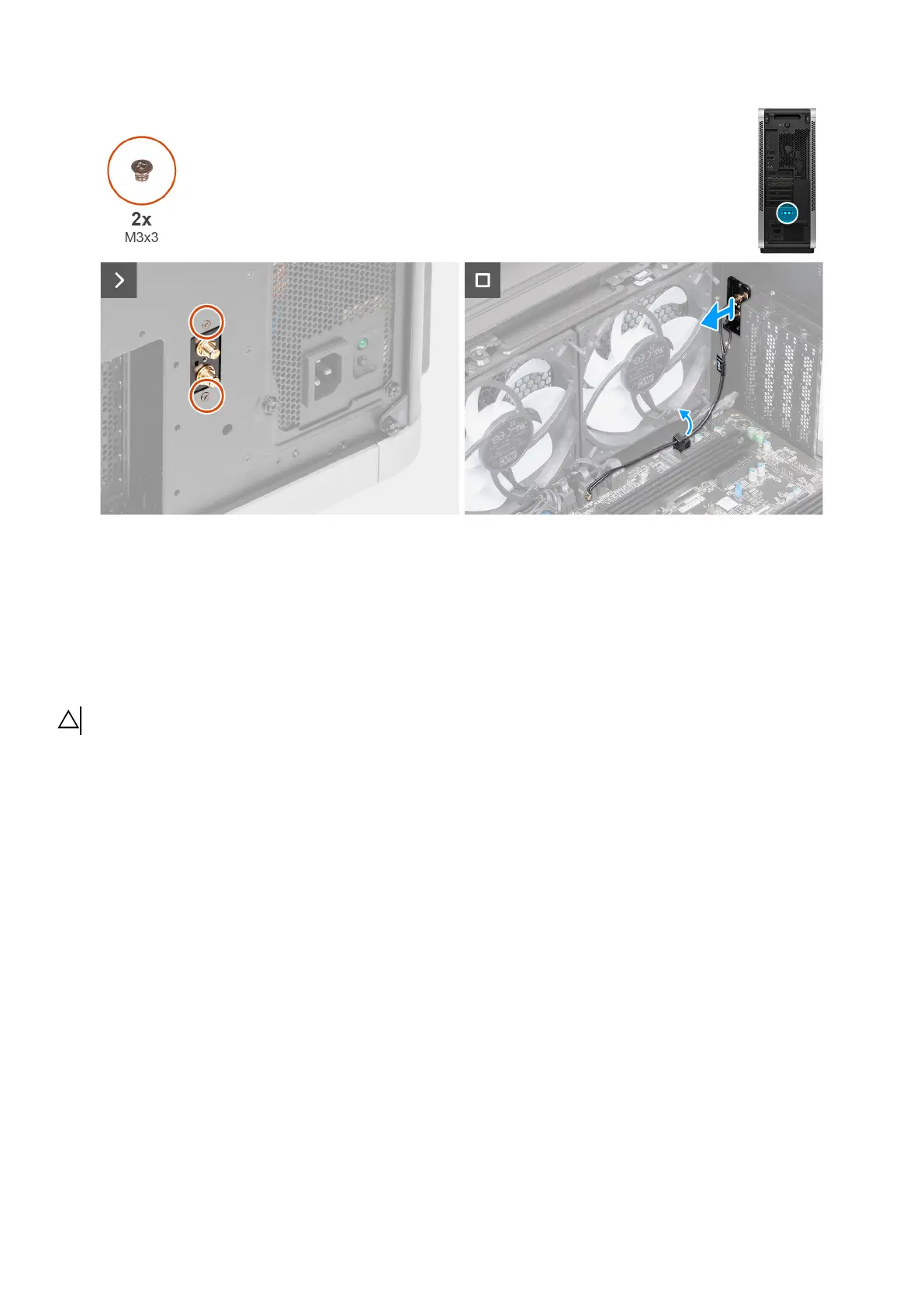

Figure 116. Removing the SMA cable
Steps
1. Remove the two screws (M3x3) that secure the SMA cable to the chassis.
2. Remove the SMA cable off the chassis and remove the SMA cable from the securing clip on the system board.
Installing the SMA cable
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the SMA cable and provide a visual representation of the installation procedure.
Removing and installing Field Replaceable Units (FRUs) 129
