NOTE: You can set dust filter maintenance reminder in the BIOS under Integrated Devices menu. By default, the Dust Filter
Maintenance is disabled. Select the interval from the list to enable the Dust Filter Maintenance option. For more information,
see Setting the Dust Filter Maintenance interval in the BIOS.
NOTE: To clean the fan filter, use the compressed air to remove the dust. Then, use a microfiber cloth to wipe away any
remaining surface dust.
About this task

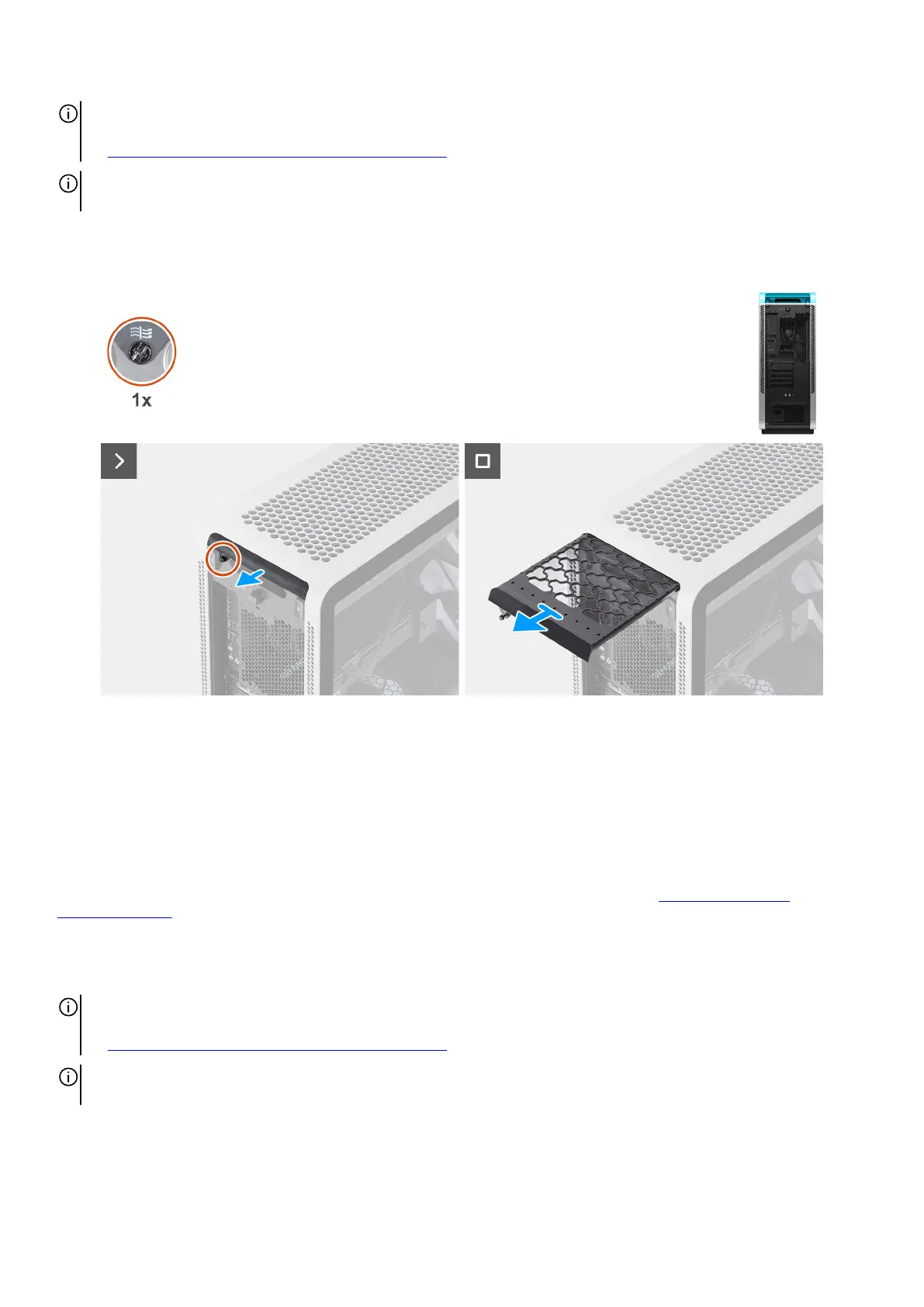

The following images indicate the location of the top fan filter and provide a visual representation of the removal procedure.
Figure 31. Removing the top fan filter
Steps
1. Loosen the captive screw that secures the top fan filter to the chassis.
2. Pull the top fan filter away from the top cover.
Installing the top fan filter
You can view the video to maintain the top, bottom, and front fan filters. For more information, see QR code for fan filter
maintenance video.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
NOTE: You can set dust filter maintenance reminder in the BIOS under Integrated Devices menu. By default, the Dust Filter
Maintenance is disabled. Select the interval from the list to enable the Dust Filter Maintenance option. For more information,
see Setting the Dust Filter Maintenance interval in the BIOS.
NOTE: To clean the fan filter, use the compressed air to remove the dust. Then, use a microfiber cloth to wipe away any
remaining surface dust.
About this task
The following images indicate the location of the top fan filter and provide a visual representation of the installation procedure.
50 Removing and installing Customer Replaceable Units (CRUs)
