Installing the AlienFX board
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
NOTE: The service warranty for the AlienFX board is valid only if it is used with the system board that comes with the factory
shipment. Dell does not offer technical support for system boards that are purchased outside of Dell.
About this task
The following images indicate the location of the AlienFX board and provide a visual representation of the installation procedure.

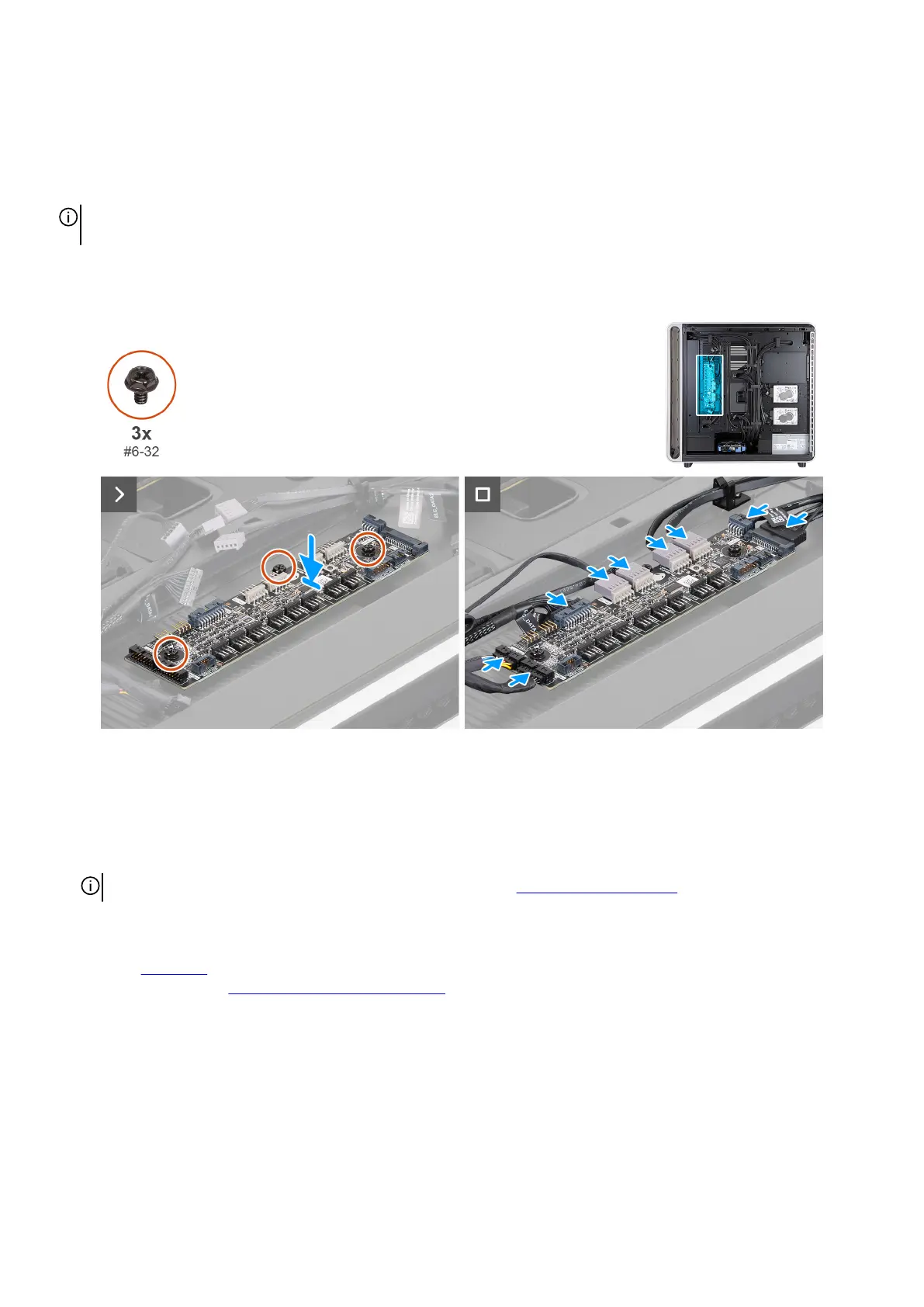

Figure 79. Installing the AlienFX board
Steps
1. Using the alignment posts, place the AlienFX board on the slot on the chassis.
2. Replace the three screws (#6-32) that secure the AlienFX board to the chassis.
3. Connect all the cables to the AlienFX board.
NOTE: For more information about AlienFX-board connectors, see AlienFX-board connectors.
Next steps
1. Install the right cover.
2. Follow the procedure in After working inside your computer.
92 Removing and installing Customer Replaceable Units (CRUs)
