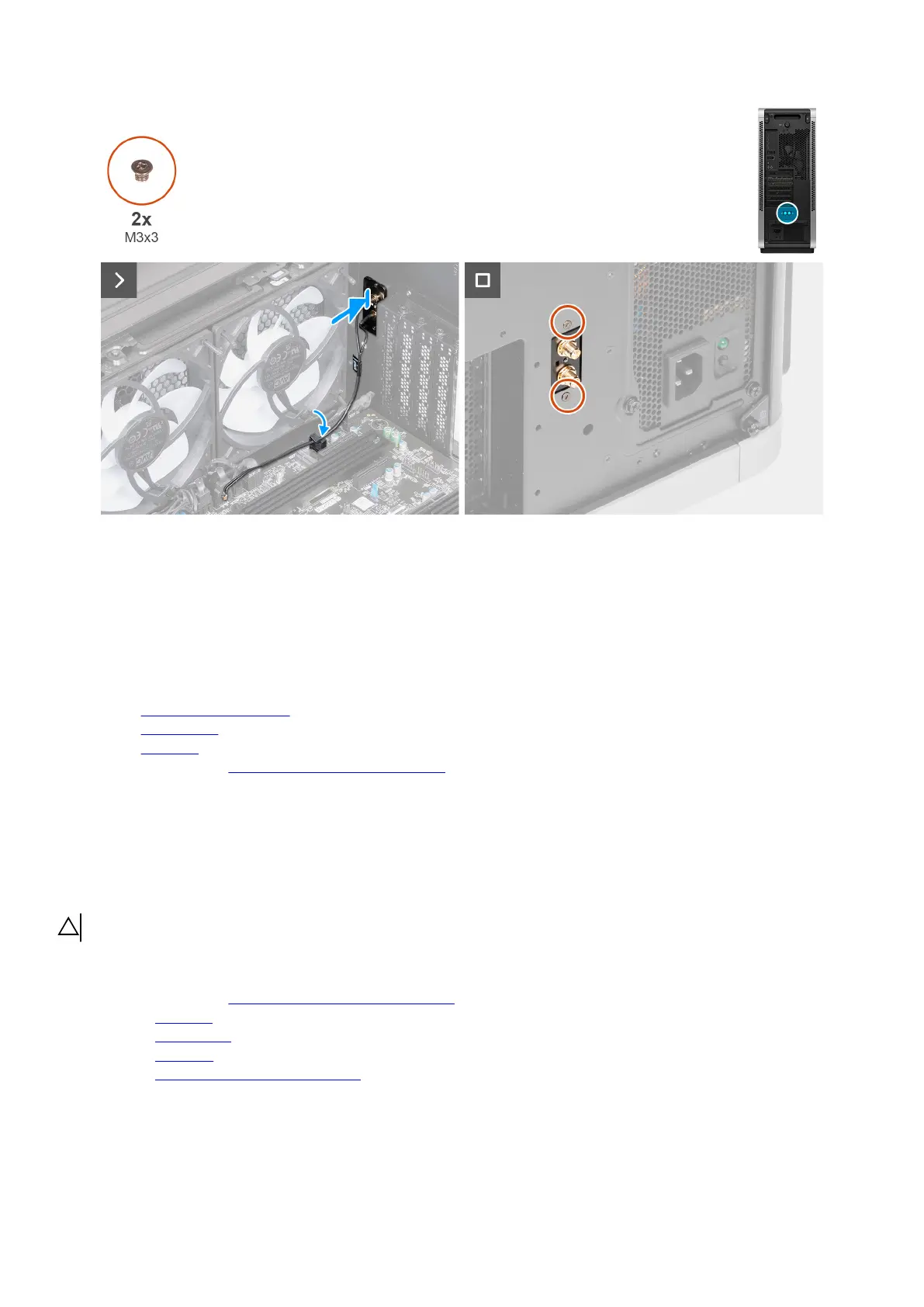

Figure 117. Installing the SMA cable
Steps
1. Align and place the SMA cable connector on the chassis.
2. Replace the two screws (M3x3) that secure the SMA cable connector to the chassis.
3. Insert the SMA cable into the securing clip on the system board.
Next steps
1. Install the power-supply unit cover.
2. Install the wireless card.
3. Install the left cover.
4. Follow the procedure in After working inside your computer.
Processor
Removing the processor
CAUTION: The information in this removal section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the left cover.
3. Remove the top fan filter.
4. Remove the top cover.
5. Remove the processor liquid-cooling assembly.
About this task
The following images indicate the location of the processor and provide a visual representation of the removal procedure.
