Power-supply unit connectors (850 W)

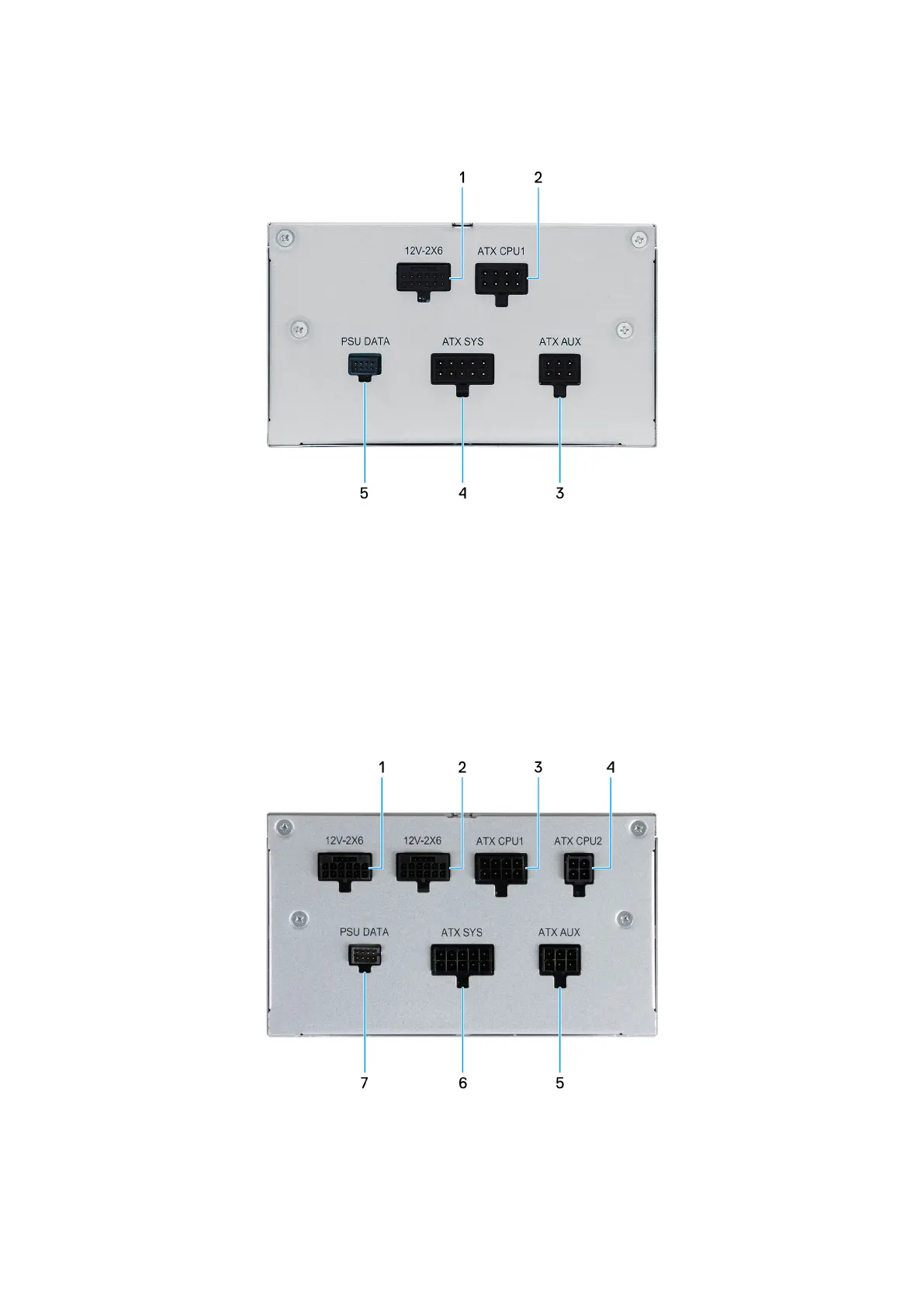

Figure 76. Power-supply unit connectors (850 W)
1. 12-pin + 4-pin connector for the graphics card
2. 8-pin connector for the processor
3. 6-pin connector for AUX
4. 10-pin connector for the system board
5. 8-pin connector for DATA
Power-supply unit connectors (1500 W)
Figure 77. Power-supply unit connectors (1500 W)
1. 12-pin + 4-pin connector for the graphics card
90 Removing and installing Customer Replaceable Units (CRUs)
