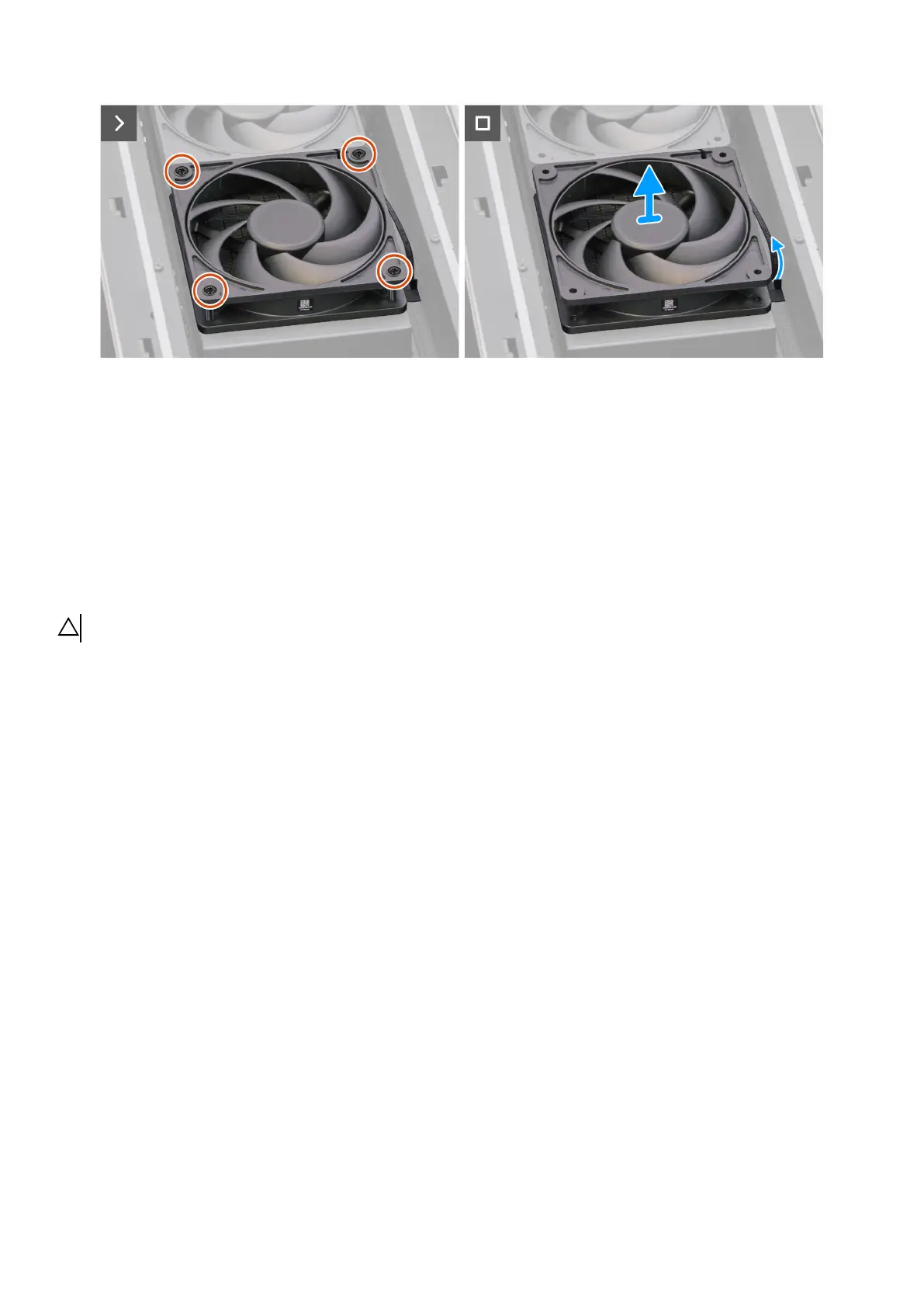

Figure 101. Removing the top fan
Steps
1. Disconnect the top fan cable from the top fan cable connector (FAN1, FAN2, and FAN3) system board.
2. Lift the top fan cable cover from one edge and lift the top fan cable cover off the cables.
3. Slide out the cable from the cable bracket.
4. Remove the screw (#6-32) that secures the top fan to the chassis.
5. Slide and lift the top fan off the chassis.
Installing the top fan
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the top fan and provide a visual representation of the installation procedure.
Removing and installing Field Replaceable Units (FRUs) 115
