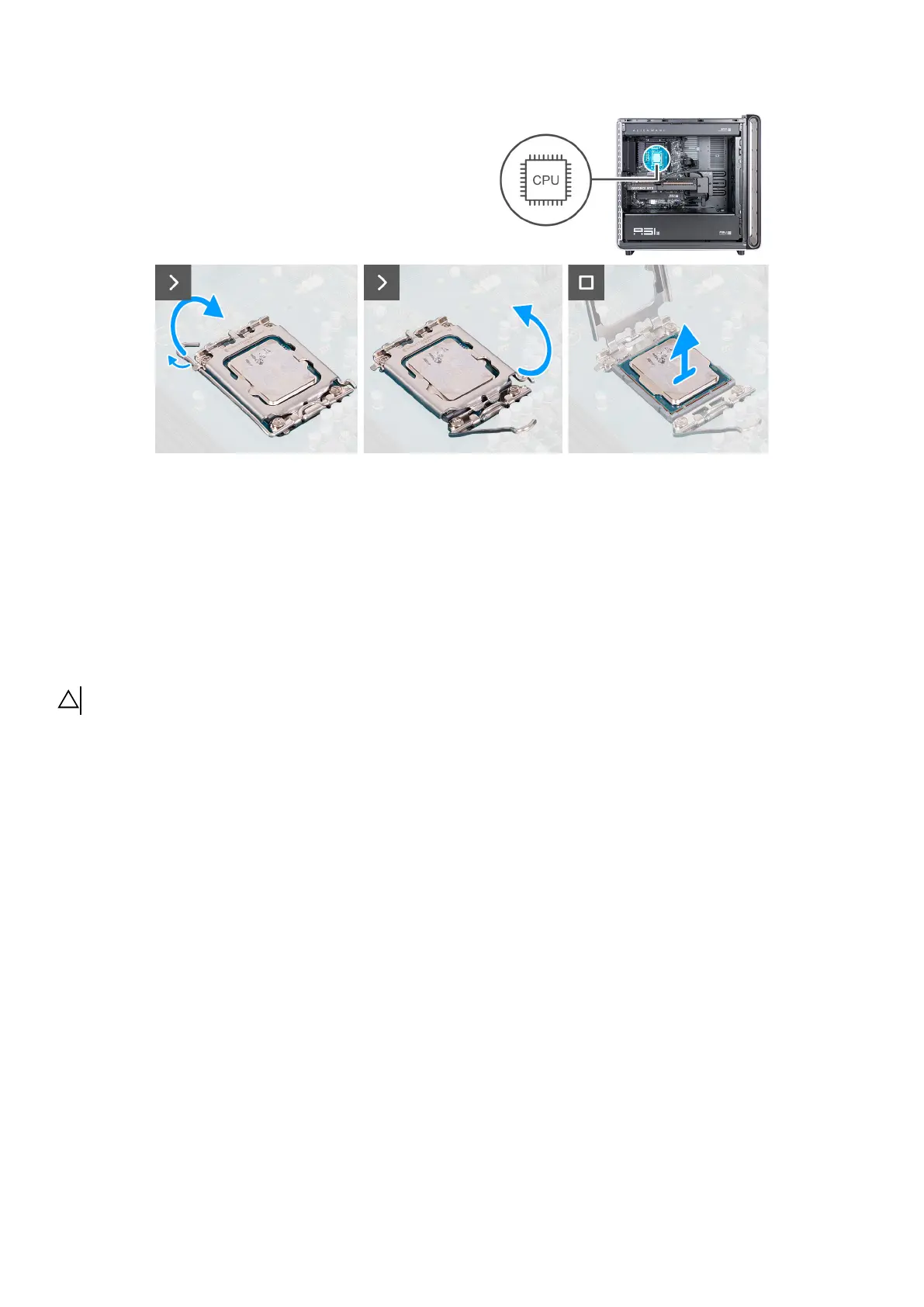

Figure 118. Removing the processor
Steps
1. Lay the computer on the right side.
2. Press the release lever down and then push it away from the processor to release it from the tab.
3. Extend the release lever completely and open the processor cover.
4. Lift the processor off the processor socket.
Installing the processor
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the processor and provide a visual representation of the installation procedure.
Removing and installing Field Replaceable Units (FRUs) 131
