About this task
The following images indicate the location of the power-supply unit cover and provide a visual representation of the removal
procedure.

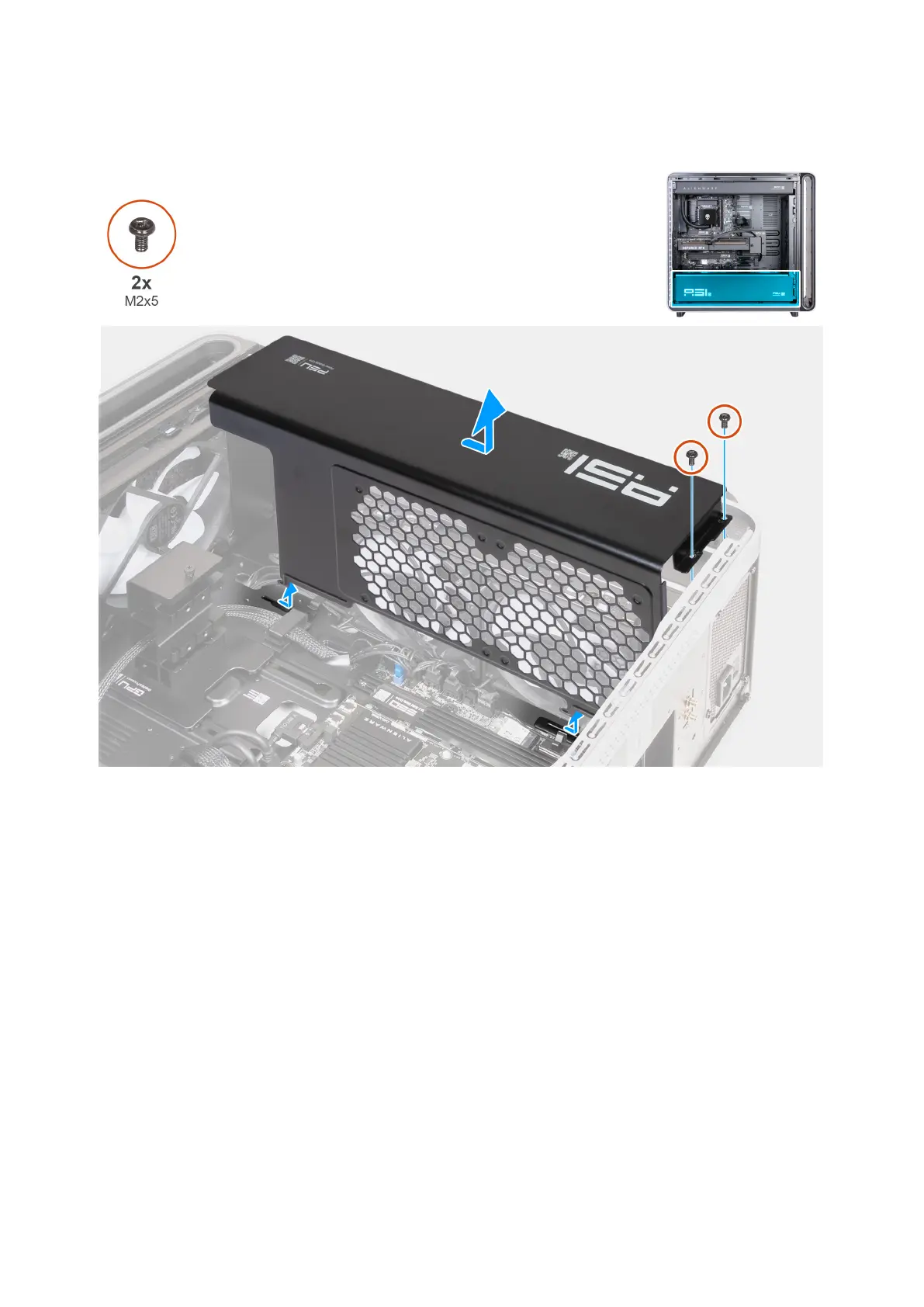

Figure 69. Removing the power-supply unit cover
Steps
1. Remove the two screws (M2x5) that secure the power-supply unit cover to the chassis.
2. Slide the power-supply unit cover to remove from the tabs on the top and bottom of the chassis.
3. Lift the power-supply unit cover off the chassis.
Installing the power-supply unit cover
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the power-supply unit cover and provide a visual representation of the installation
procedure.
