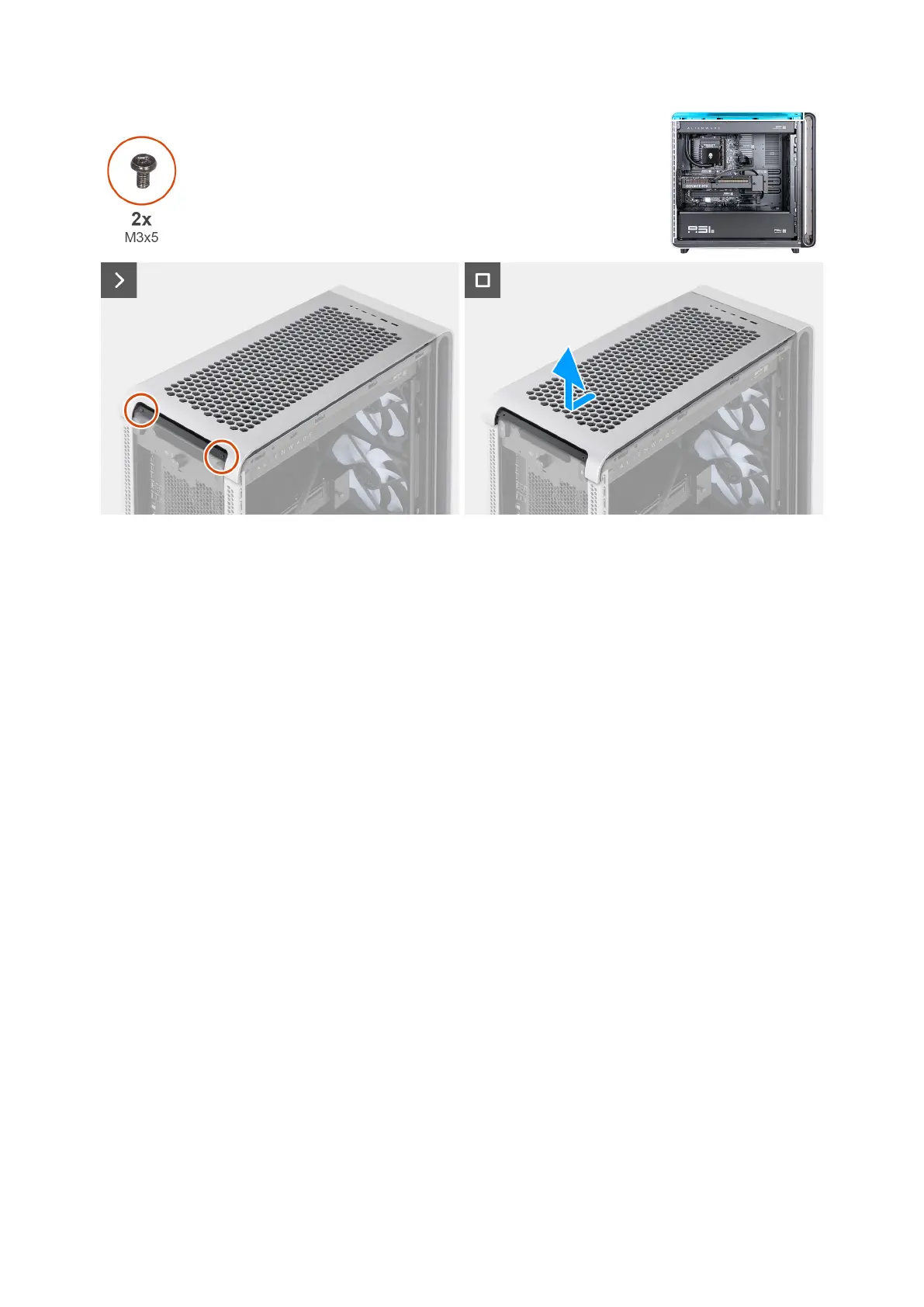

Figure 47. Removing the top cover
Steps
1. Remove the two screws (M3x5) that secure the top cover to the chassis.
2. Slide and lift the top cover away from the chassis.
Installing the top cover
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the top cover and provide a visual representation of the installation procedure.
