System-board components

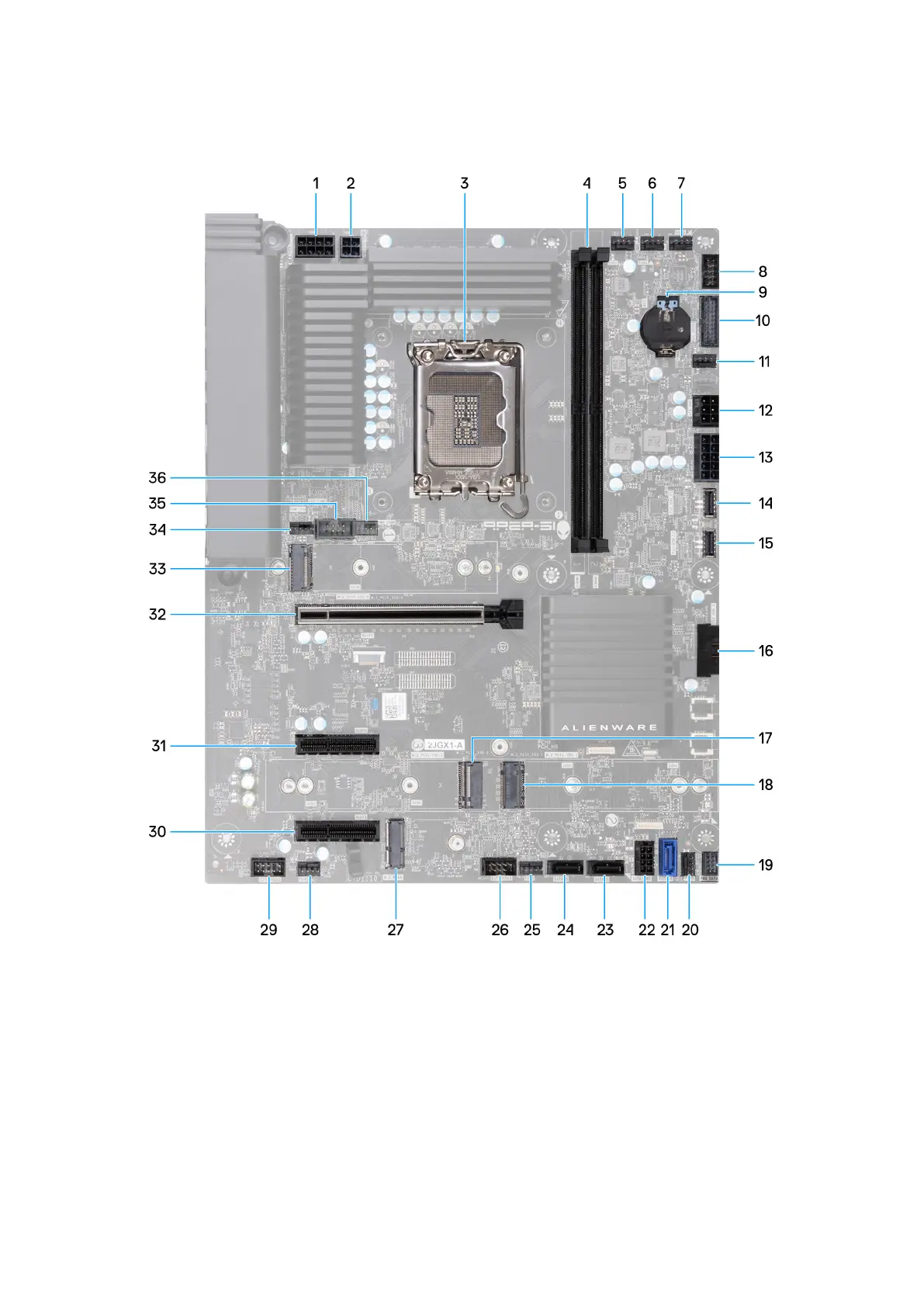

Figure 18. System-board components
1. Power-supply connector (ATX CPU1)
2. Power-supply connector (ATX CPU2)
3. Processor socket
4. Memory module (DIMM1 and DIMM2)
5. Top fan assembly cable connector (FAN1)
6. Top fan assembly cable connector (FAN2)
7. Top fan assembly cable connector (FAN3)
8. 9-pin USB header
9. Coin-cell battery socket (RTC)
10.AlienFX data connector (ELC_DATA1)
Working inside your computer 37
