Bottom fan
Removing the bottom fan
CAUTION: The information in this removal section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the left cover.
3. Remove the right cover.
4. Remove the power-supply unit cover.
About this task

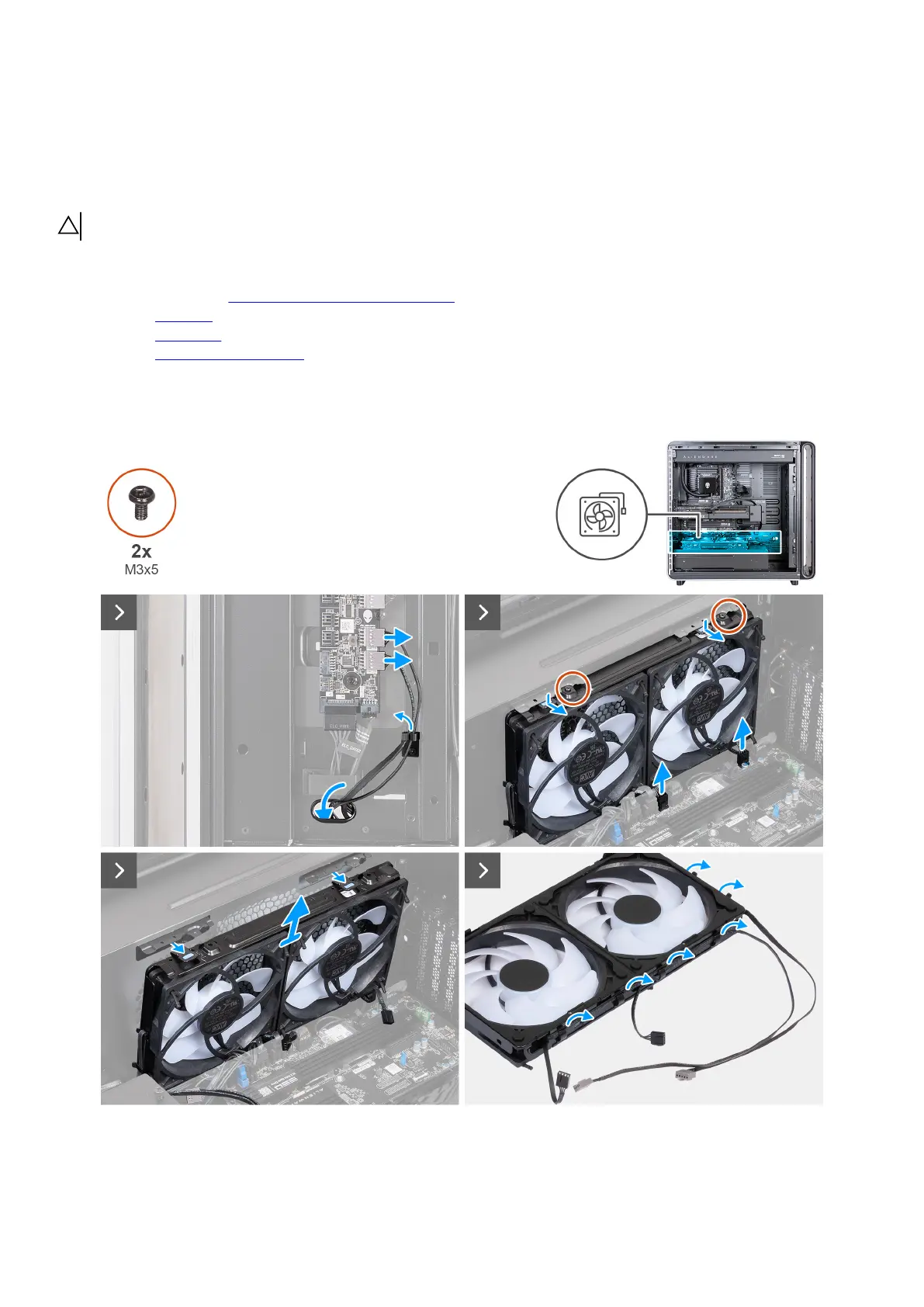

The following images indicate the location of the bottom fan and provide a visual representation of the removal procedure.
Figure 110. Removing the bottom fan
124 Removing and installing Field Replaceable Units (FRUs)
