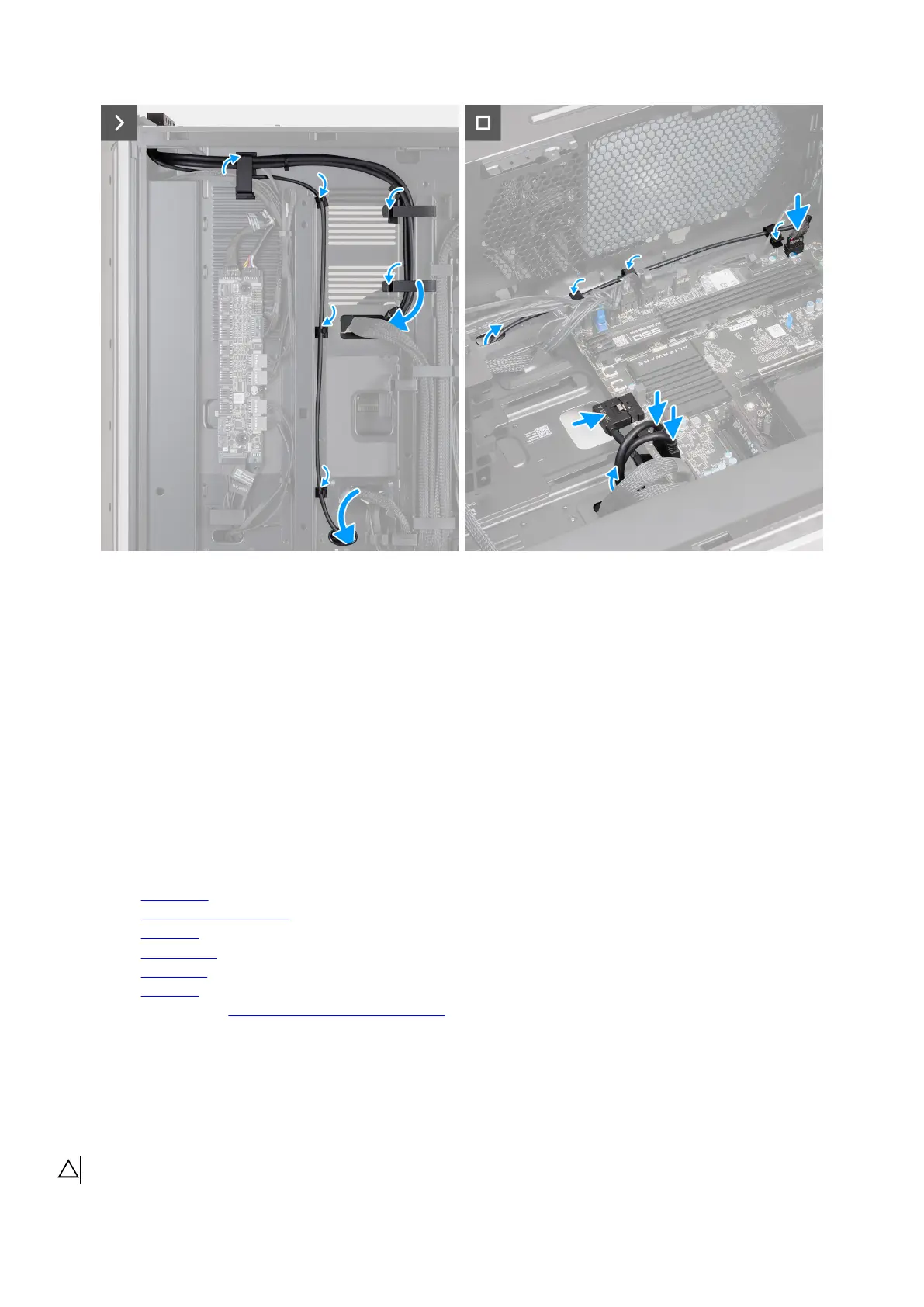

Figure 89. Installing the top I/O-panel
Steps
1. Align and slide the top I/O-panel through the opening on the chassis.
2. Replace the screw (#6-32) that secures the top I/O-panel to the chassis.
3. Insert the audio cable into the securing clip on the chassis and lock the securing clip to secure the audio cable.
4. Insert the USB cables into the securing clip and lock the securing clip to secure the USB cables.
5. Route the audio cable through the opening on the chassis.
6. Route the USB cables through the opening on the chassis.
7. Lay the computer on the right side.
8. Route the audio cable through the routing guides on the chassis.
9. Connect the audio cable to the audio cable connector (TIO AUDIO) on the system board.
10.Connect the USB cables to the USB cable connectors (TIO USB A, TIO USB C2, and TIO USB C2) on the system board.
Next steps
1. Install the bottom fan.
2. Install the power-supply unit cover.
3. Install the top cover.
4. Install the top fan filter.
5. Install the right cover.
6. Install the left cover.
7. Follow the procedure in After working inside your computer.
Front bezel
Removing the front bezel
CAUTION: The information in this removal section is intended for authorized service technicians only.
Removing and installing Field Replaceable Units (FRUs) 103
