Alienware Area-51 AAT2250

To Next Page

To Previous Page

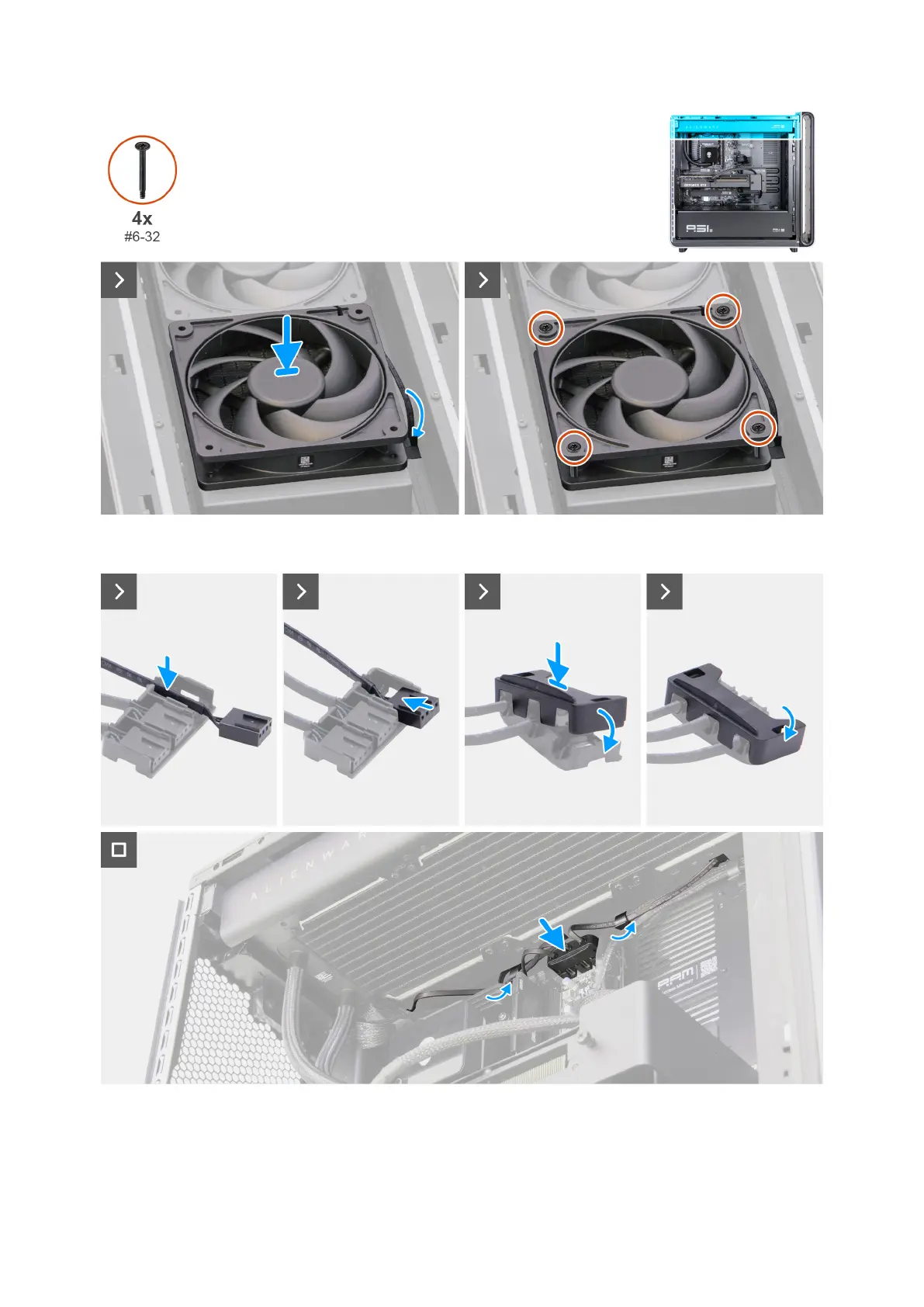

Figure 102. Installing the top fan

Figure 103. Installing the top fan

Steps

1. Align and place the top fan on the fan bracket.

116 Removing and installing Field Replaceable Units (FRUs)
