Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

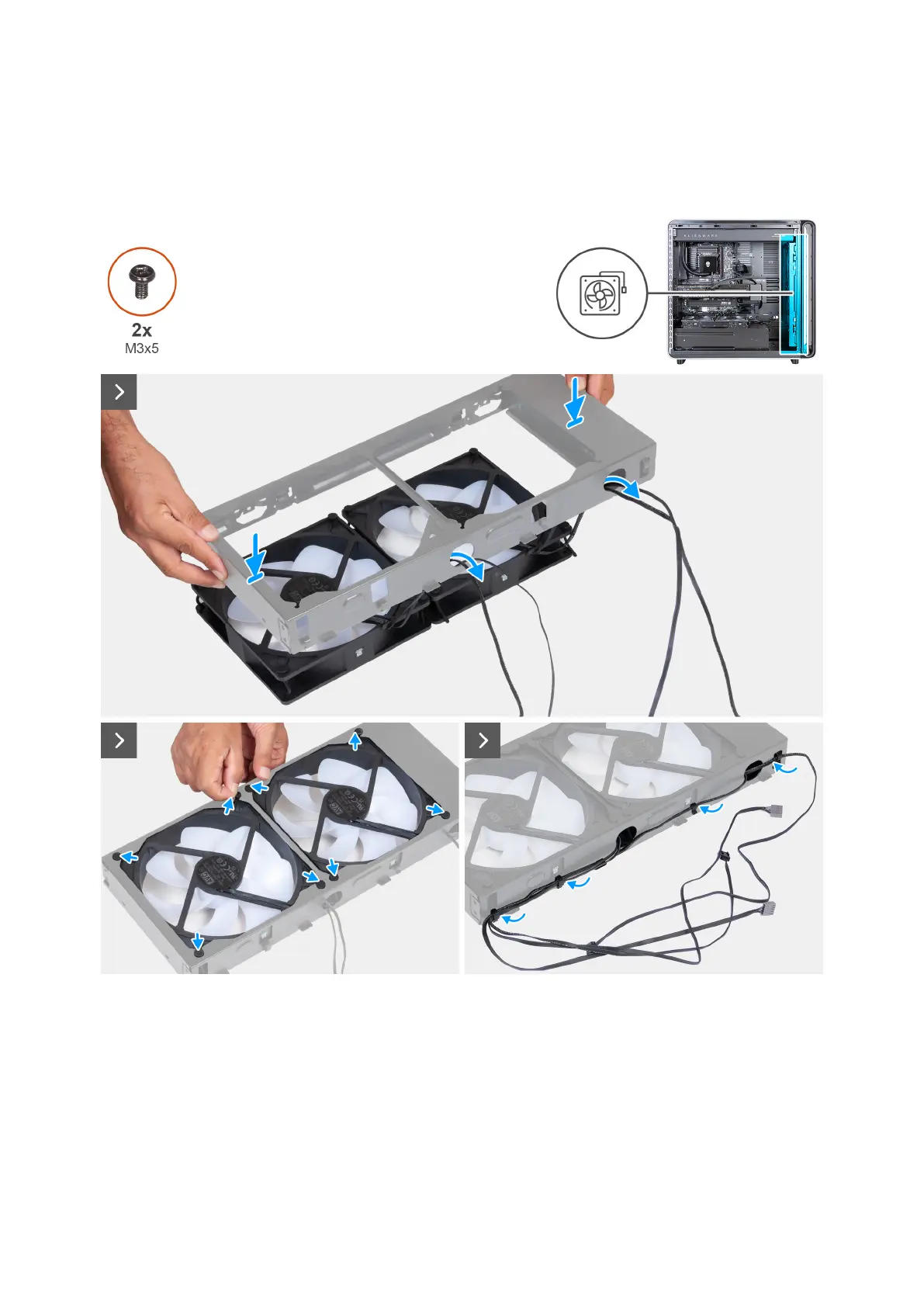

The following images indicate the location of the front fan and provide a visual representation of the installation procedure.

Figure 107. Installing the front fan

Removing and installing Field Replaceable Units (FRUs) 121
