This computer is shipped with an external puck antenna. Connect the external antenna during setup, to connect to WiFi and
Bluetooth. The external antenna is required to improve the wireless communication strength and stability, while setting up your
operating system. To connect the SMA cables, follow the below procedure:
a. Follow the procedure in Before working inside your computer.
b. Align and connect the SMA cables to the SMA connectors on the chassis.
c. Tighten the bolts to secure the SMA cables to the SMA connectors on the chassis.

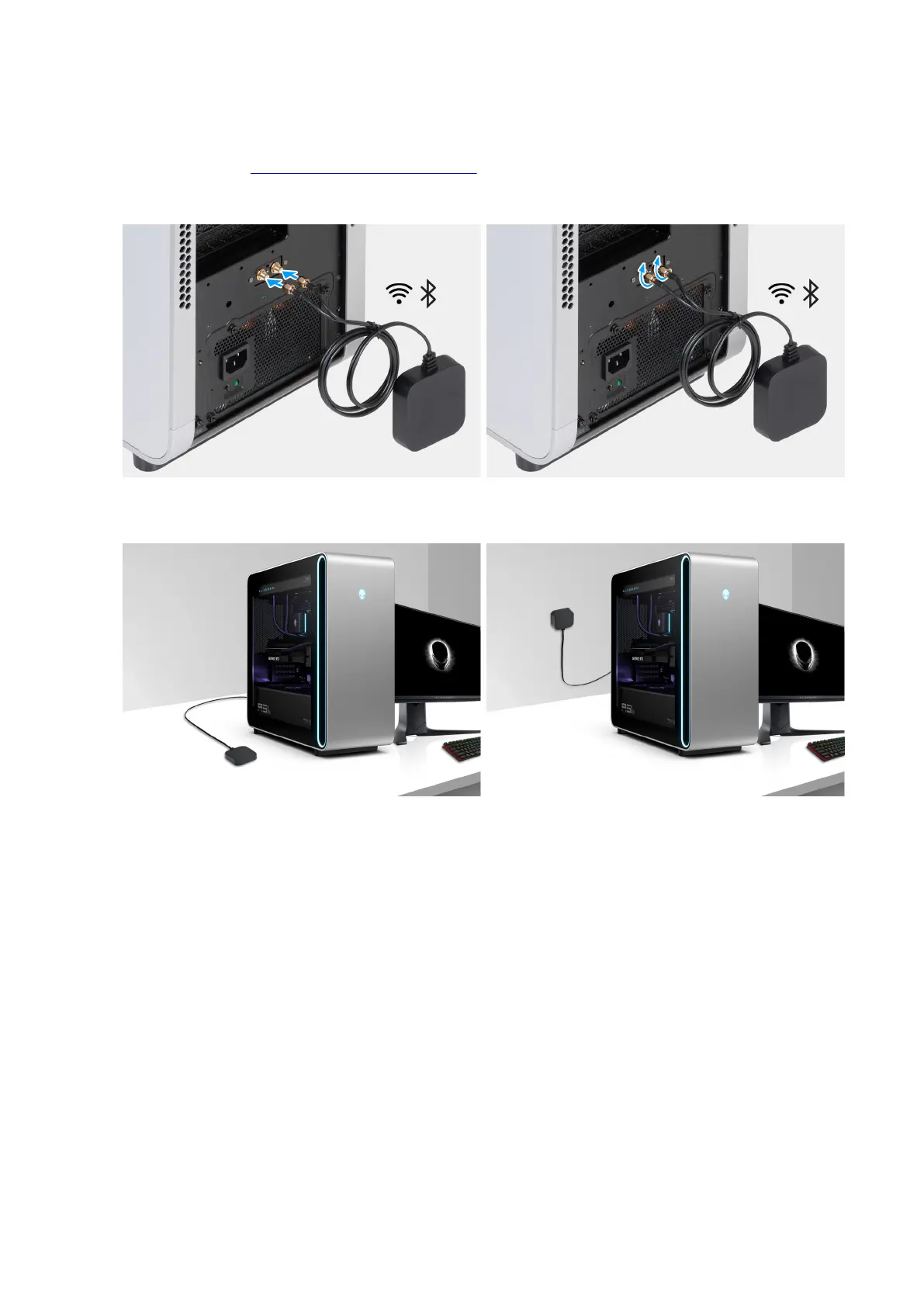

Figure 12. Connecting the external antenna
d. Place the antenna in a suitable location.
Figure 13. Placing the antenna in a suitable location
7. Connect the display. For more information about setting up the display, see the documentation that is shipped with your display.
Set up your Alienware Area-51 AAT2250 17
