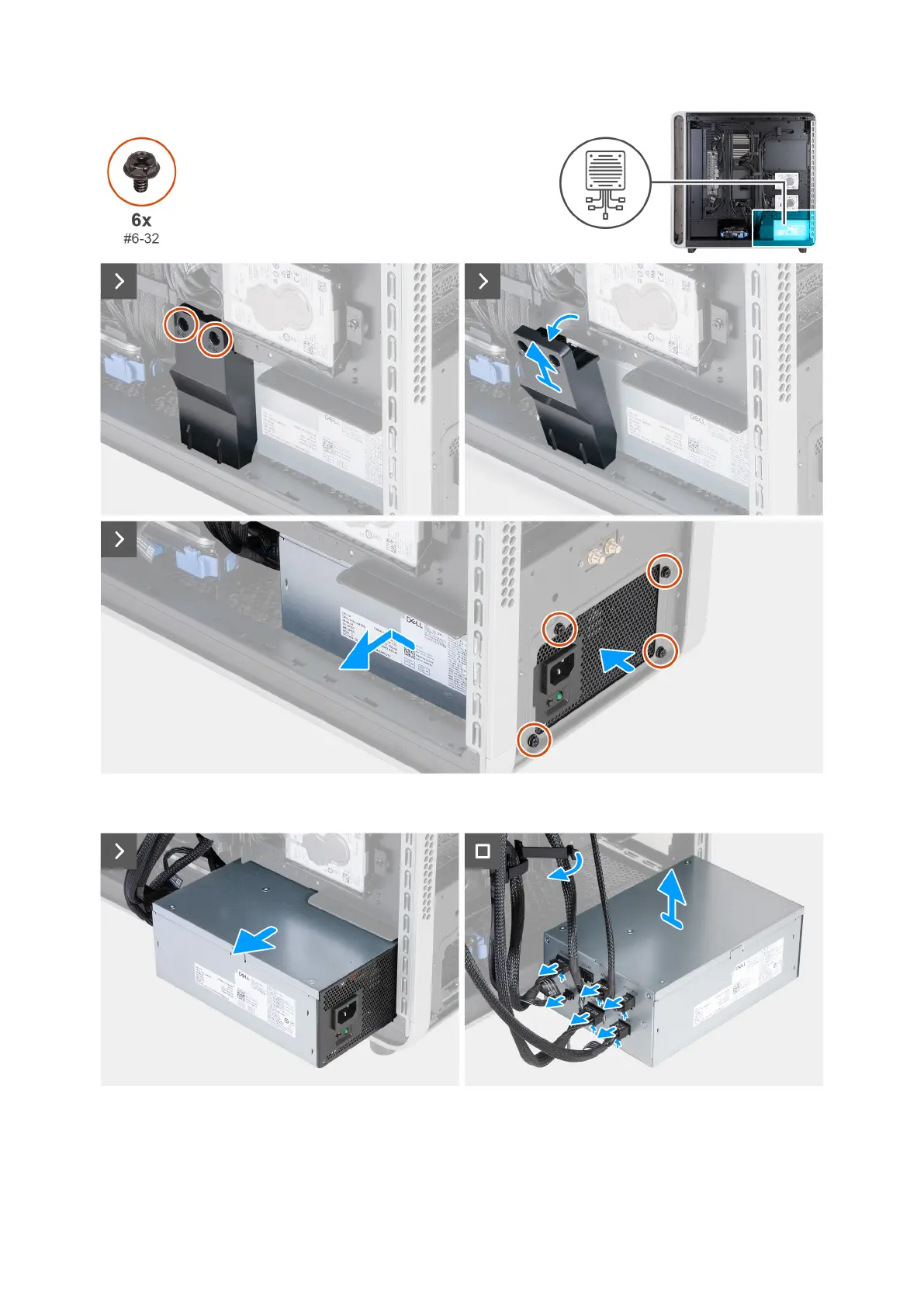

Figure 72. Removing the power-supply unit

Figure 73. Removing the power-supply unit

Steps

1. Remove the two screws (#6-32) that secure the power-supply unit holder to the chassis.
