Chapter 8 Elements of a Control Application
Programs
The controller operating system is a preemptive multitasking system that is in
compliance with IEC 1131-3. This system provides the following:
• Programs to group data and logic
• Routines to encapsulate executable code that is written in one
programming language
Each program contains the following:
•Local Tags
• Parameters
• A main executable routine
•Other routines
•An optional fault routine

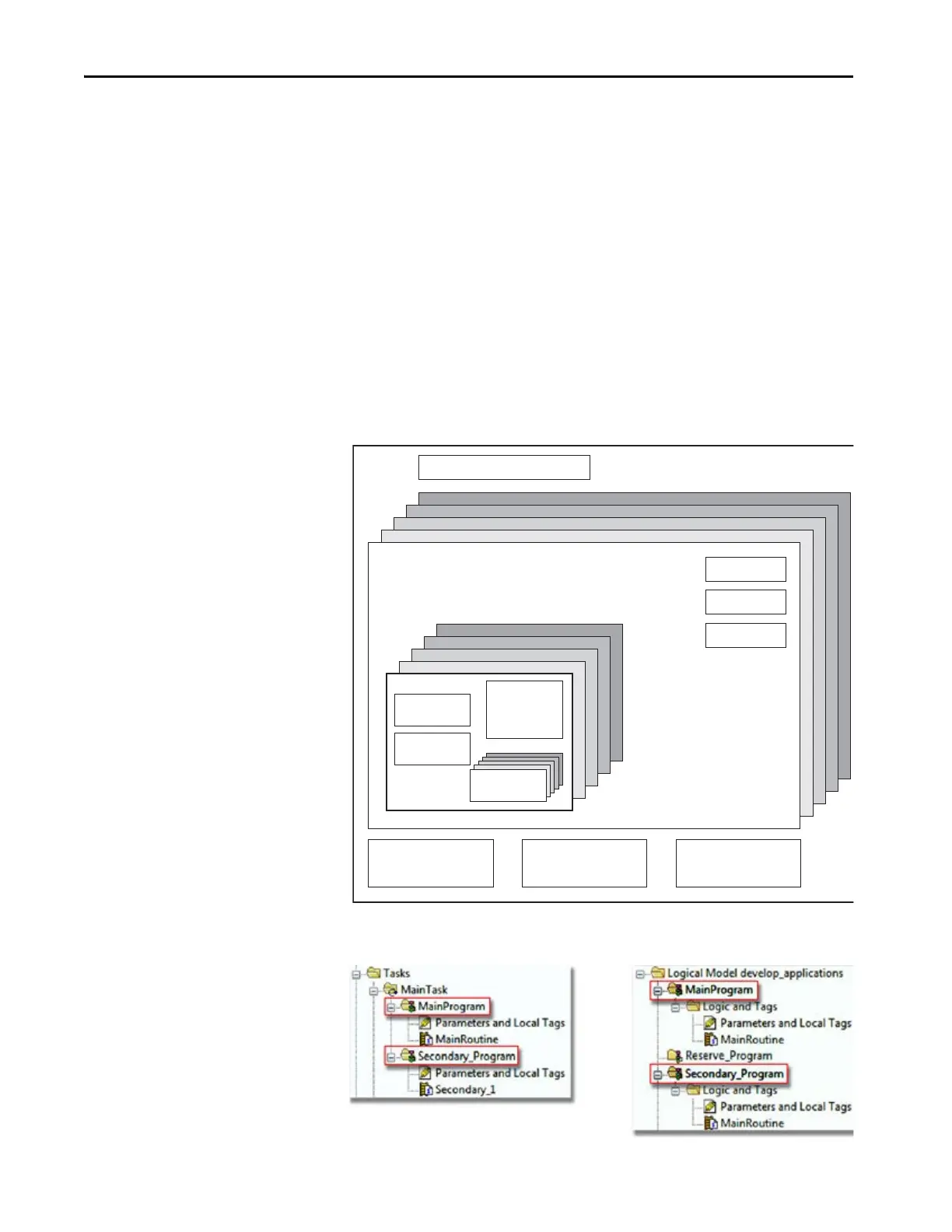

Figure 27 - Program in a Control Application
Figure 28 - Programs in Application
Task 32
Task 1
Configuration
Status
Watchdog
Program 100
Program 1
Main Routine
Fault Routine
Program
(Local Tags and
Parameters)
Other Routines
Controller (global) Tags I/O Data System-shared Data
Controller Fault Handler
Control Application
Controller Organizer Logical Organizer
