Chapter 6 Add and Configure Standard I/O Modules
Configure Standard
Distributed I/O Modules on
an EtherNet/IP Network
Your Compact GuardLogix 5370 controller system can use distributed I/O
modules on an EtherNet/IP network.
Complete these steps to configure distributed I/O modules on an EtherNet/IP
network.

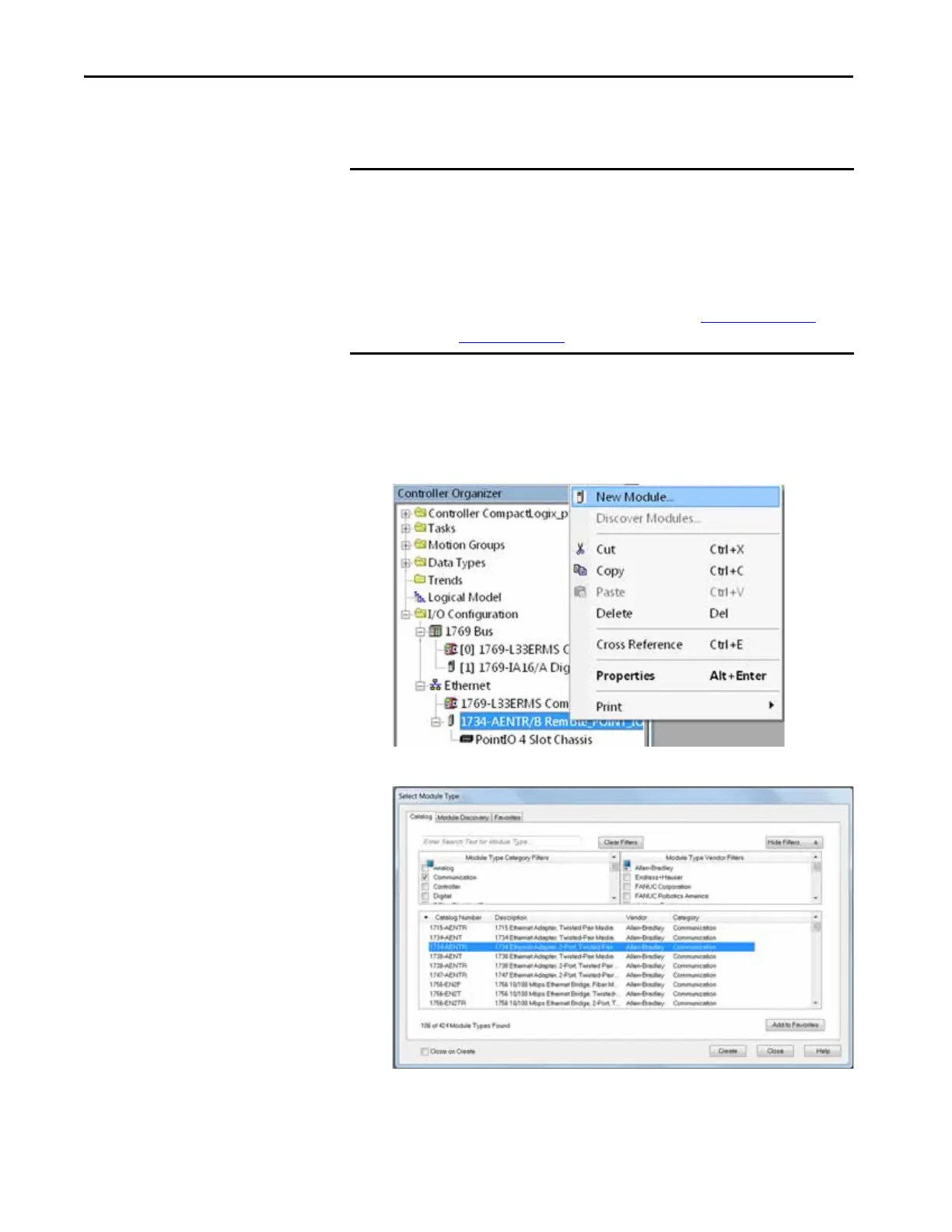

1. In the Controller Organizer, select and right-click the 1734-AENT
under Ethernet, and choose New Module.
2. Select the desired Ethernet adapter and click Create.
IMPORTANT When you add distributed I/O modules, remember to count the remote
Ethernet adapter to remain within the maximum number of EtherNet/IP
network nodes limitation for your controller.
The remote I/O modules that are connected to the controller via the
Ethernet adapter are not counted toward the maximum Ethernet node limit
for the controller.
For more information on node limitations, see Nodes on EtherNet/IP
Network on page 73.
