Add and Configure Standard I/O Modules Chapter 6
Monitor Standard
I/O Modules
With Compact GuardLogix 5370 controllers, you can monitor I/O modules
in the following ways:
• QuickView™ Pane below the Controller Organizer
• Connection tab in the Module Properties dialog box
• Programming logic to monitor fault data so you can act
When a fault occurs on an I/O module, a yellow triangle on the module listing
in the Controller Organizer alerts you to the fault.

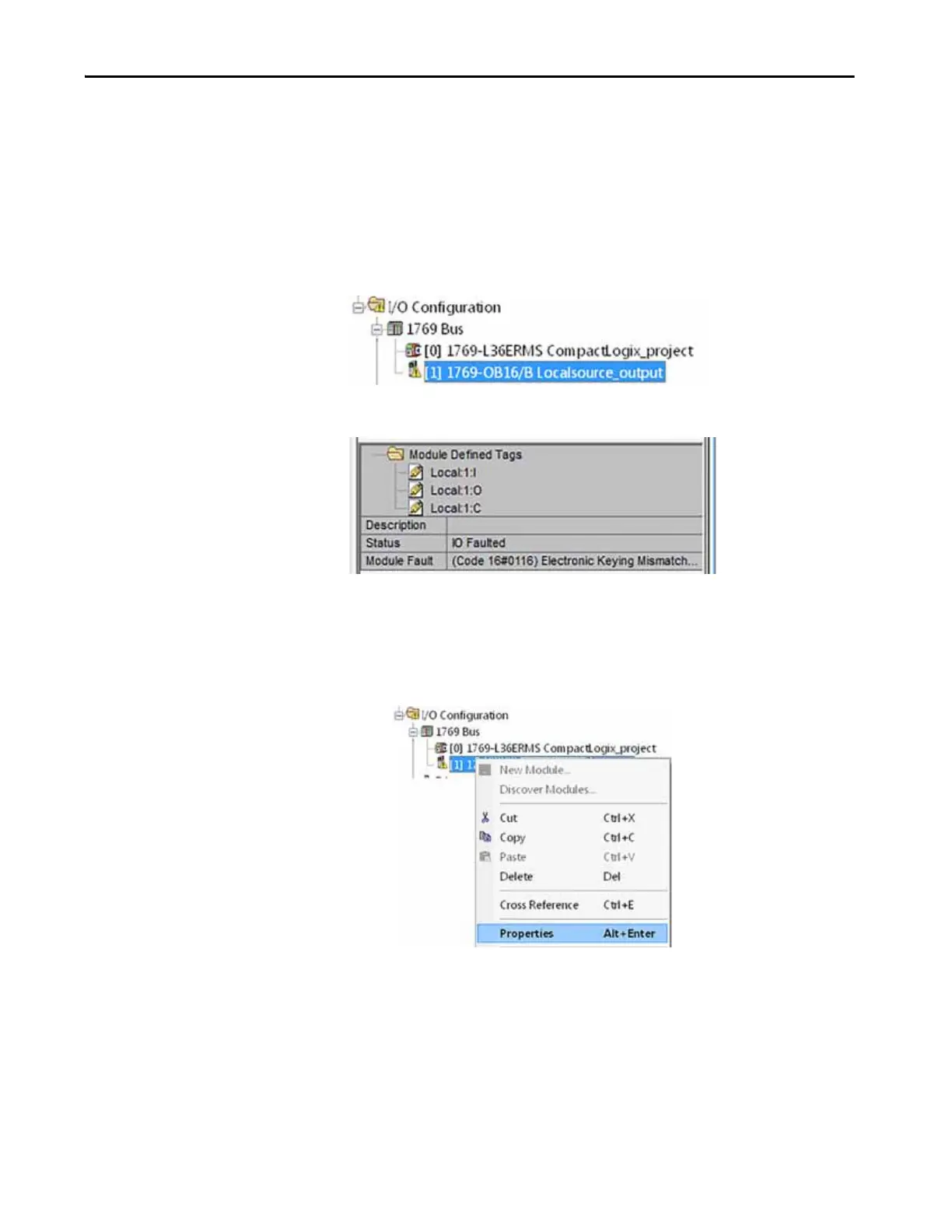

The following graphic shows the Quick View Pane, which indicates the fault type.
To see the fault description on the Connection tab in Module Properties dialog
box, complete these steps.
1. In the Controller Organizer, select and right-click the faulted I/O
module under I/O Configuration, and choose Properties.
