96 Rockwell Automation Publication 1769-UM022C-EN-P - June 2018

Chapter 6 Add and Configure Standard I/O Modules

Configure Standard I/O

Complete these steps to add a Compact I/O module to your Compact

GuardLogix 5370 controller system and configure it.

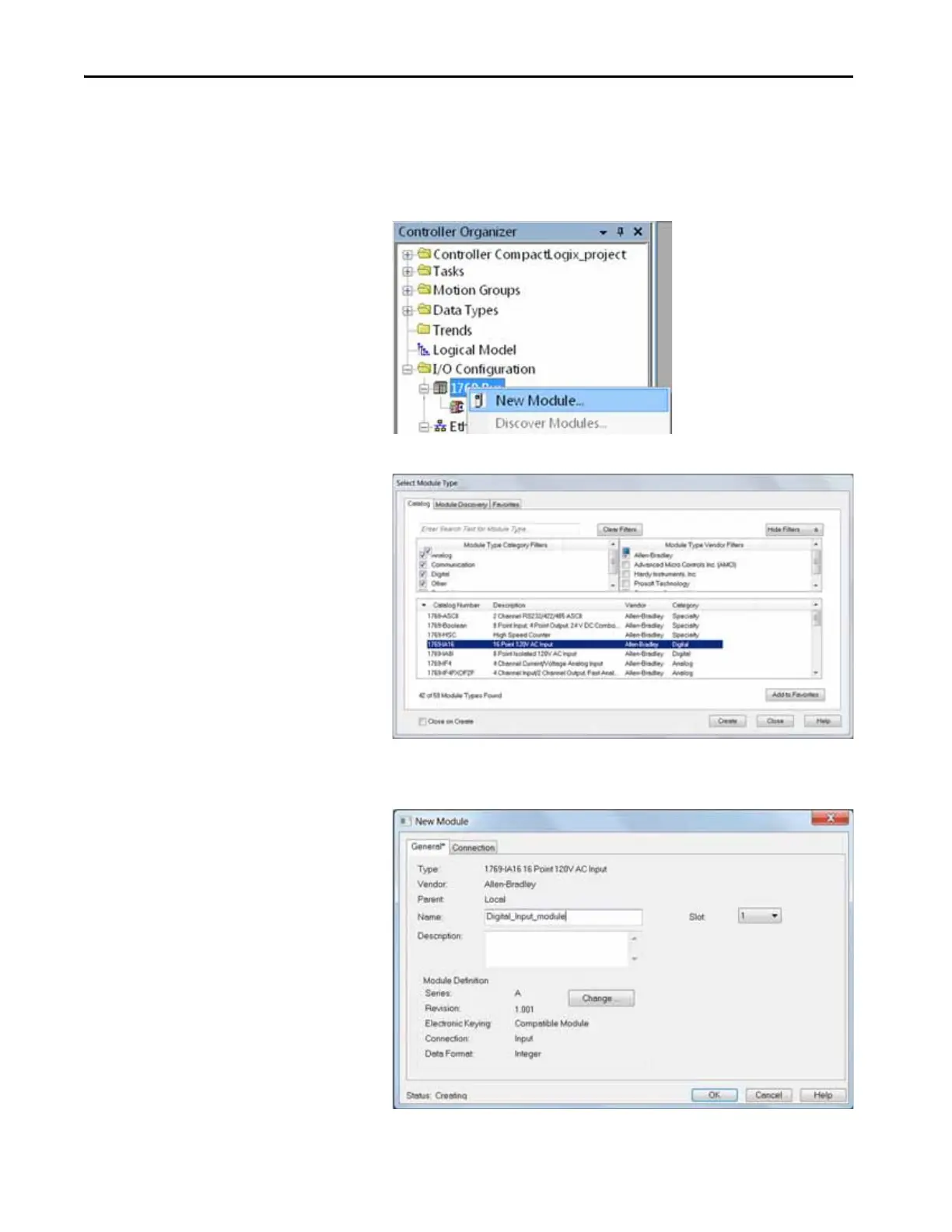

1. In the Controller Organizer, select and right-click the 1769 Bus under

I/O Configuration, and choose New Module.

2. Select the desired I/O module and click Create.

The New Module dialog box appears.

3. Configure the new I/O module as necessary and click OK.
