Rockwell Automation Publication 1769-UM022C-EN-P - June 2018 79
Communicate Over Networks Chapter 5
DeviceNet Network
Communication
The Compact GuardLogix 5370 controllers communicate with other devices
over the DeviceNet network via a Compact I/O™ 1769-SDN DeviceNet
scanner. The DeviceNet network uses the Common Industrial Protocol (CIP)
to provide the control, configuration, and data collection capabilities for
industrial devices.
Available Software
The software applications that are listed in this table are required when using a
Compact GuardLogix 5370 controller on a DeviceNet network.
Figure 12
shows an example 1769-L33ERMS control system with a DeviceNet
network.

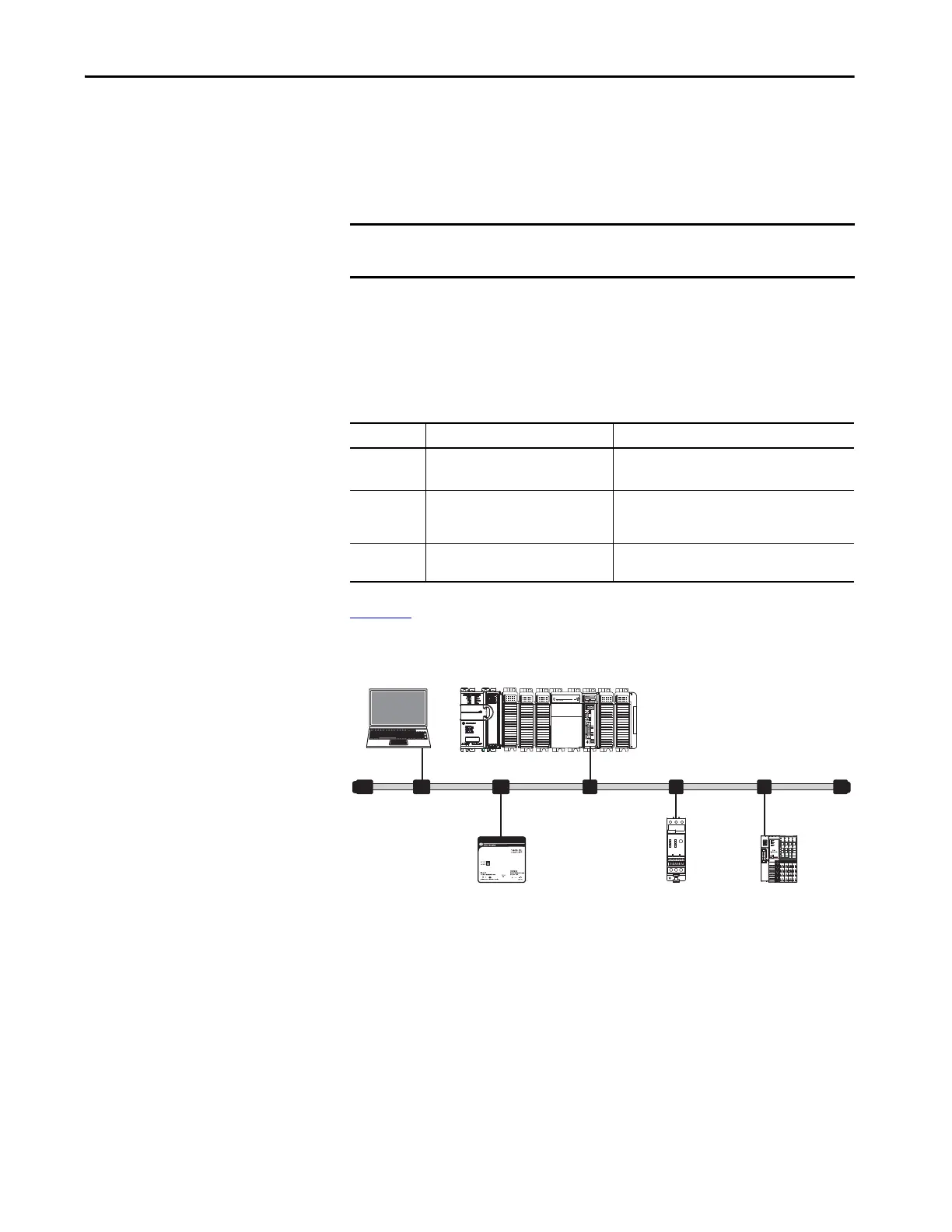

Figure 12 - Example 1769-L33ERMS Control System With a DeviceNet Network
IMPORTANT Compact GuardLogix controllers support standard connections to the
DeviceNet network. CIP Safety over DeviceNet networks is not supported.
Software Required Version Functions
Studio 5000
environment
28.00.00 or later Configure the CompactLogix project.
RSLinx Classic 3.80 or later • Configure communication devices
•Provide diagnostics
• Establish communication between devices
RSNetWorx™
for DeviceNet
25.00.00 or later if used with the Studio
5000 environment versions above
• Configure DeviceNet devices
• Define the scanlist for the DeviceNet network
1606-XLDNET E3 Overload Relay 1734-ADN POINT I/O
• 1769-L33ERMS
• 1769-SDN Scanner
