24 Rockwell Automation Publication 1769-UM022C-EN-P - June 2018
Chapter 2 Install the Controller
Install the Secure Digital (SD)
Card
Compact GuardLogix® 5370 controllers ship from the factory with the
1784-SD1 SD card installed.
Complete these steps to reinstall a removed SD card into the controller or to
install a new SD card into the controller.
We recommend that you leave the SD card in the controller, even when it is not
used. If the controller experiences a major non-recoverable fault, extended fault
information is saved to the card.
1. Verify that the SD card is locked or unlocked according to your
preference. Consider the following when deciding to lock the card
before installation:
– If the card is unlocked, the controller can write data to it or read data
from it.

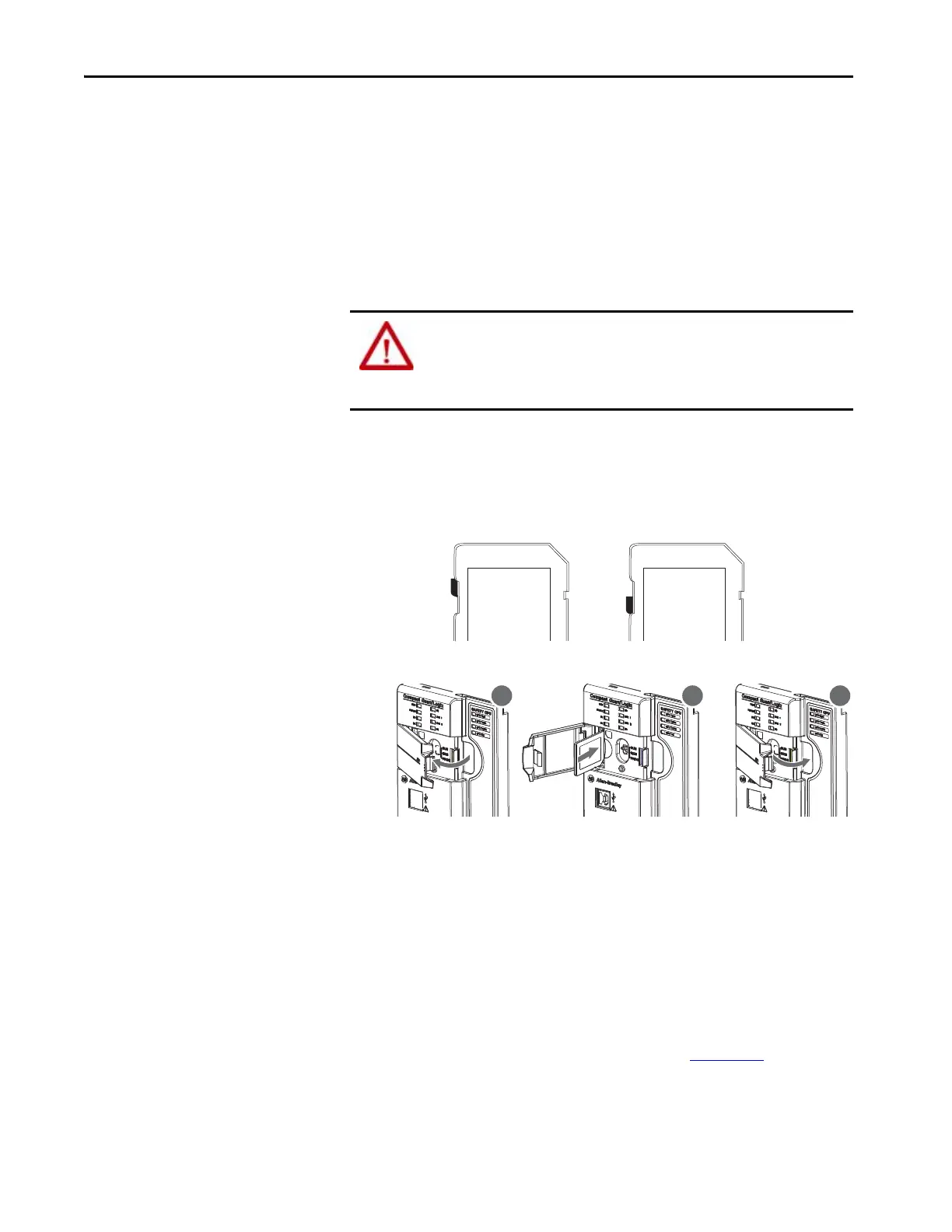

2. Open the door for the SD card (A).
3. Insert the SD card into the SD card slot.
You can install the SD card in only one orientation. The beveled corner
is at the top. An orientation logo is printed on the card.
If you feel resistance when inserting the SD card, pull it out and change
the orientation.
4. Gently press the card until it clicks into place (B).
5. Close the SD card door (C).
We recommend that you keep the SD card door closed during normal system
operation. For more information on the SD card, see Chapter 13
.
WARNING:
When you insert or remove the SD card while power is on, an
electrical arc can occur. This could cause an explosion in hazardous location
installations.
Be sure that power is removed or the area is nonhazardous before you proceed.
