Rockwell Automation Publication 1769-UM022C-EN-P - June 2018 31
Install the Controller Chapter 2
Connect Power to the Control
System
The way that you connect power to the Compact GuardLogix 5370 controller
system is based on the 1769 Compact I/O power supply that your application
uses. For more information on connecting power to your system, see the
Compact I/O Expansion Power Supplies Installation Instructions, publication
1769-IN028
.
Connect to the Controller
via a USB Cable
The Compact GuardLogix 5370 controller has a USB port that uses a Type B
receptacle. The port is USB 2.0-compatible and operates at 12 Mbps.
Use a USB cable to connect your computer to the USB port. With this
connection,
you can upgrade firmware and download programs to the
controller directly from your computer.

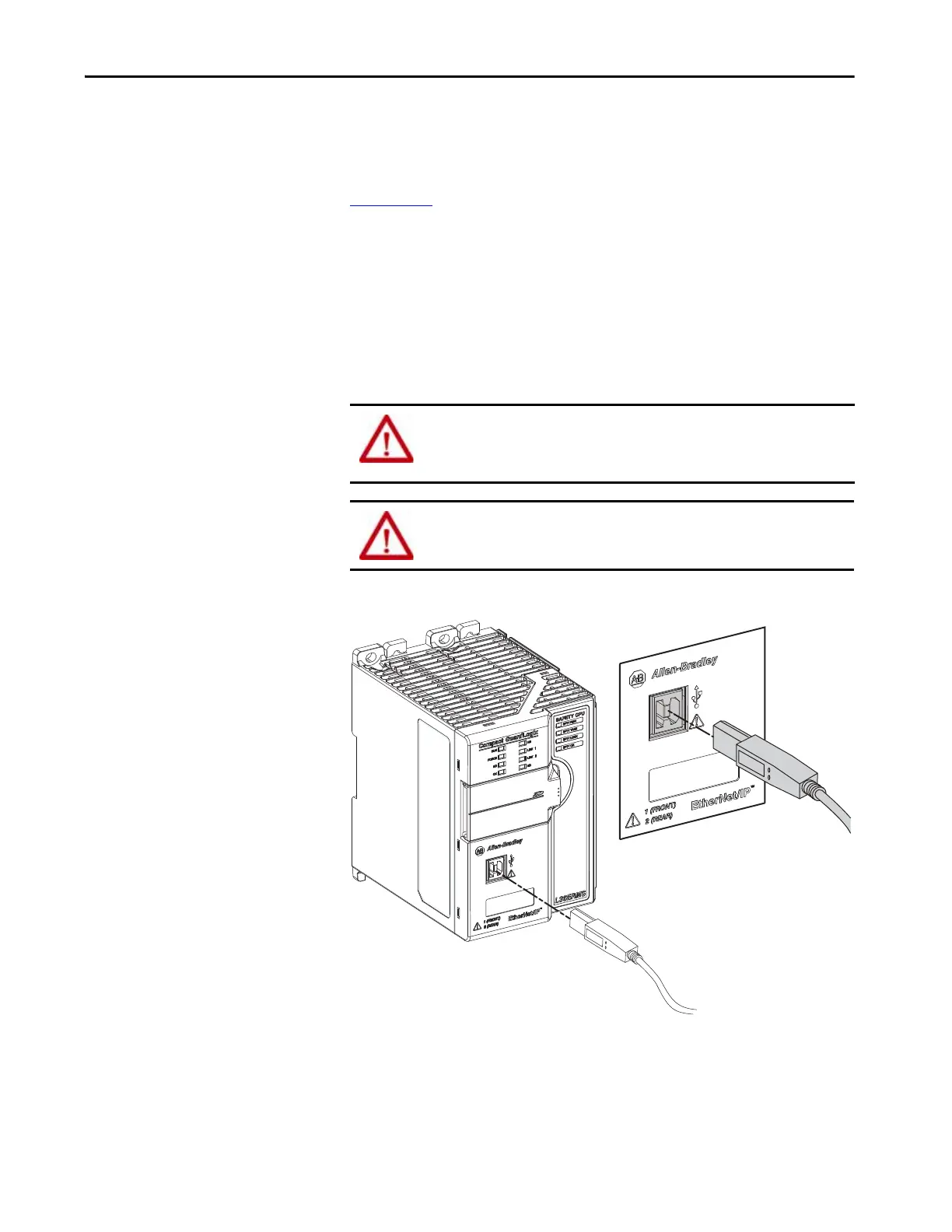

Plug the USB cable into the Compact GuardLogix 5370 controller as shown.
ATTENTION: The USB port is intended only for temporary local
programming purposes and not intended for permanent connection.
The USB cable is not to exceed 3.0 m (9.84 ft) and must not contain hubs.
WARNING: Do not use the USB port in hazardous locations.
