Install the Controller Chapter 2
Minimum Spacing
Maintain spacing from enclosure walls, wireways, and adjacent equipment.
Allow 50 mm (2 in.) of space on all sides, as shown. This spacing provides
ventilation and electrical isolation.

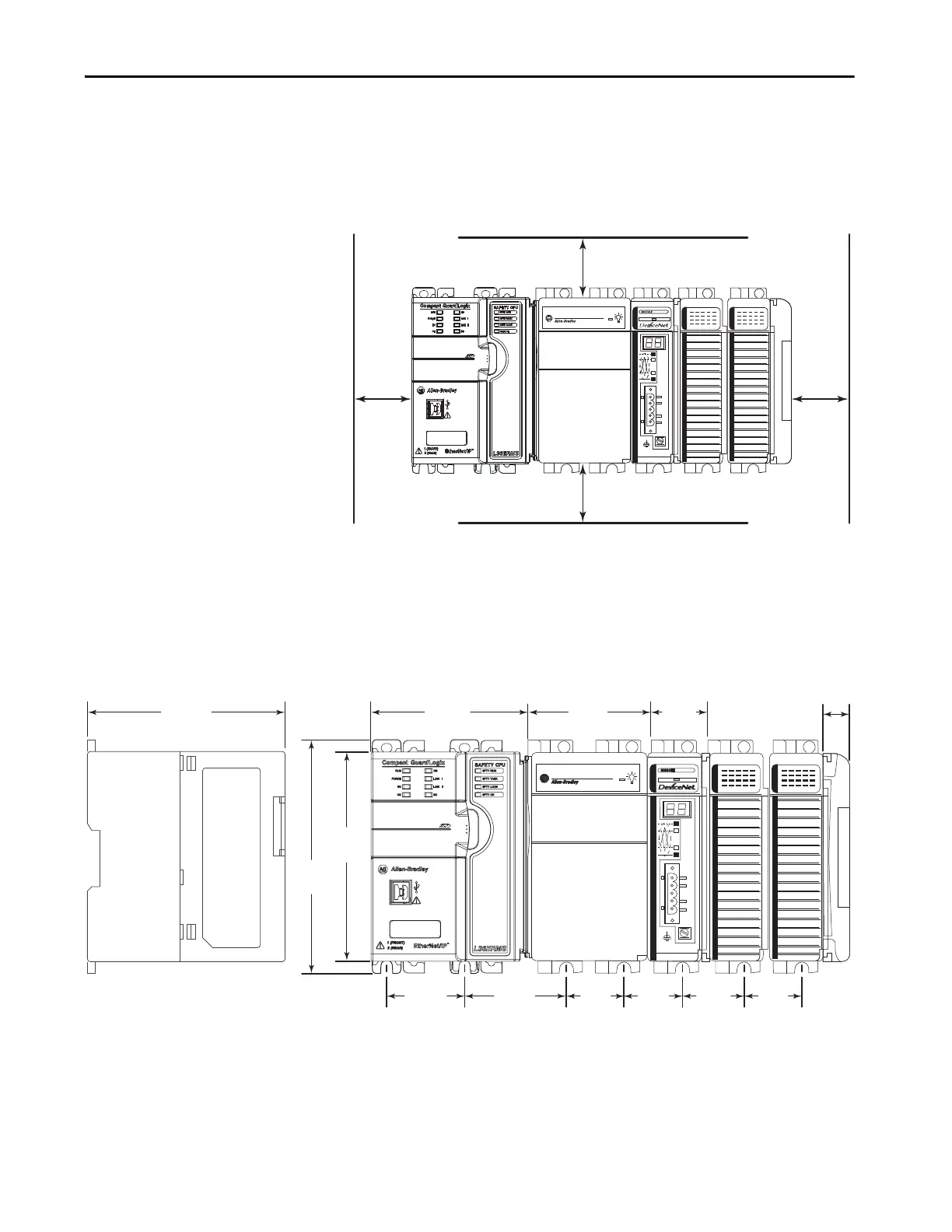

System Dimensions
This graphic shows the system dimensions.
50 mm
(2 in.)
50 mm
(2 in.)
50 mm
(2 in.)
50 mm
(2 in.)
132 mm
(5.20 in.)
118 mm
(4.65 in.)
89 mm
(3.5 in.)
70 mm
(2.76 in.)
35 mm
(1.38 in.)
35 mm
(1.38 in.)
44 mm
(1.74 in.)
114 mm
(4.49 in.)
18 mm
(0.71 in.)
35 mm
(1.38 in.)
35 mm
(1.38 in.)
35 mm
(1.38 in.)
Side View Front View
61 mm
(2.4 in.)
