Allen-Bradley ControlLogix User Manual

1756-6.5.3 - December 1999
Controlling I/O Over a ControlNet Network 10-9

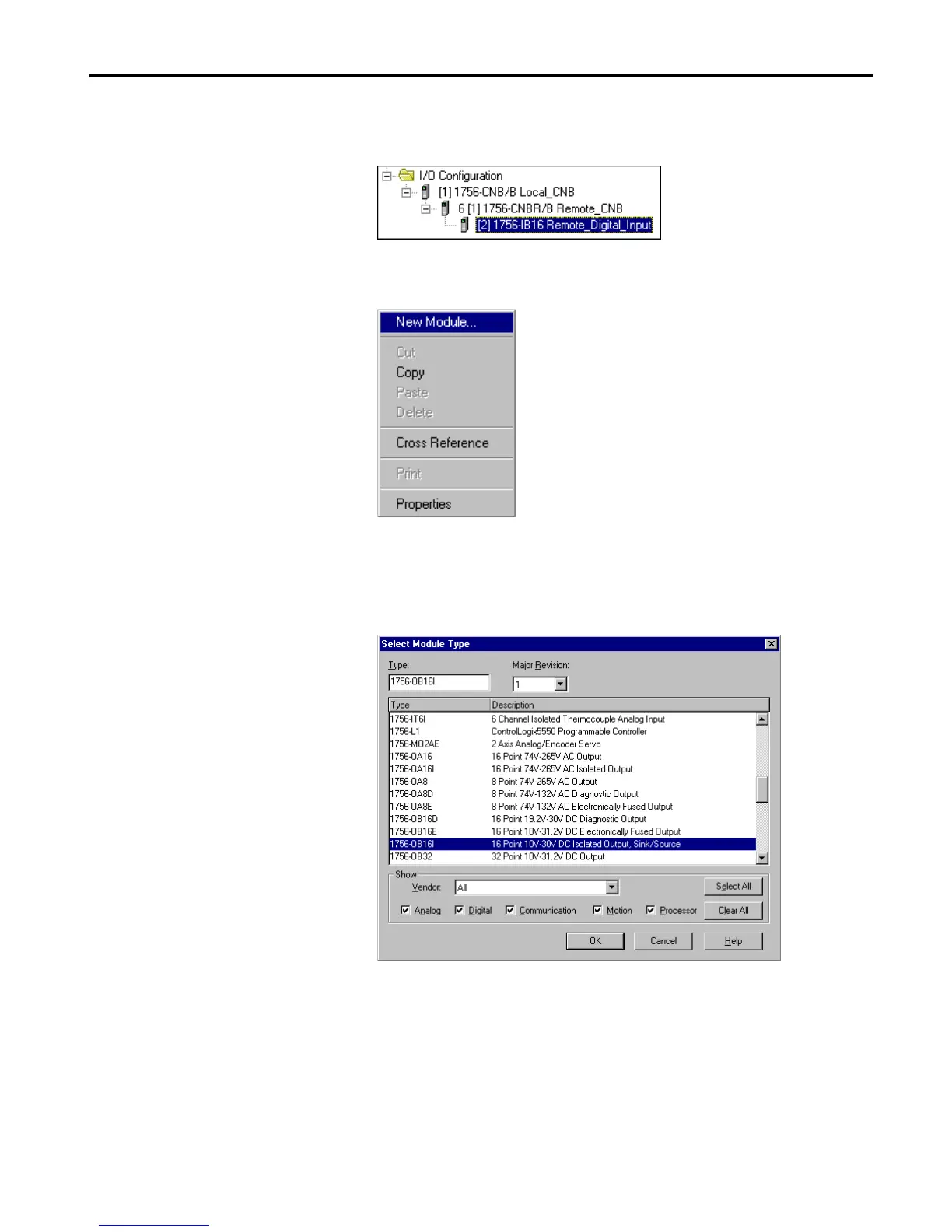

The digital input module will appear indented under the remote
1756-CNB module.
Add the Remote Digital Output Module
5. Right click on the remote 1756-CNB module and again select New
Module.
The Select Module Type window will appear.
6. Select the 1756-OB16I digital output module from the list.

Allen-Bradley ControlLogix Specifications

General

Communication	EtherNet/IP, ControlNet, DeviceNet, DH+
I/O Capacity	Up to 128, 000 I/O points (varies by configuration)
Redundancy	Supported (with specific modules)
Programming Software	Rockwell Automation Studio 5000 Logix Designer
Operating Temperature	0°C to 60°C (32°F to 140°F)
Programming Languages	Ladder Logic, Function Block Diagram, Structured Text, Sequential Function Chart
Modularity	Yes
Certifications	UL, CE
Processor Type	Multiple options available, including standard, safety, and extreme environment processors
Power Supply	Multiple options available, including standard and redundant power supplies with various voltage ranges (e.g., 24V DC, 120/240V AC)
