6-16 Logix5550 Controller to PLC-5C: Scheduled Communications

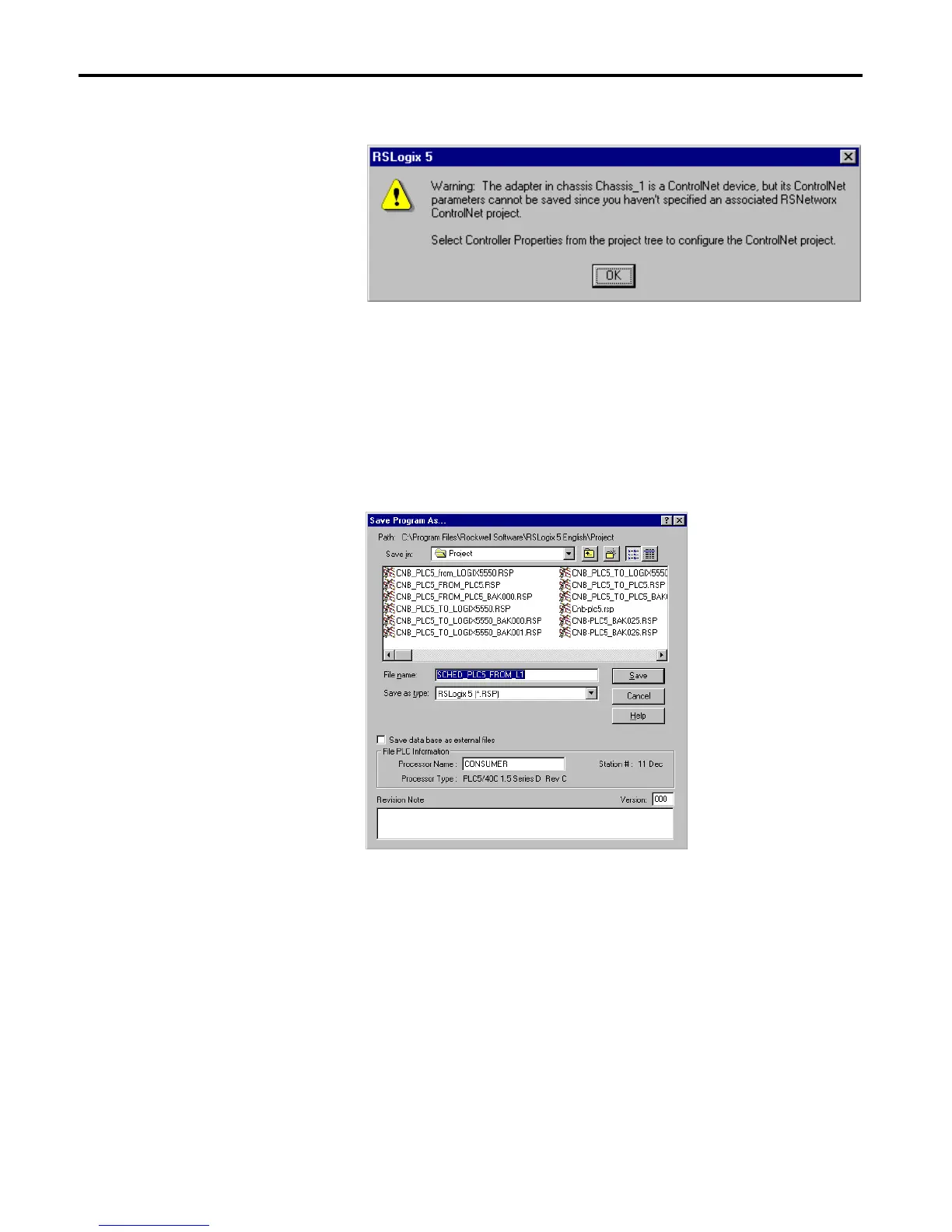

You you will receive the following warning:
This warning is telling you that you need to tell RSLogix5 which
RSNetWorx for ControlNet project file is associated with this PLC-5 so
that the two packages can exchange information about the I/O. You will
take care of this shortly.
7. Click on OK.
8. Save the program.
9. Enter an appropriate file name (e.g., “Sched_PLC5_from_L1”) and click
on Save.

Allen-Bradley ControlLogix Specifications

General

Communication	EtherNet/IP, ControlNet, DeviceNet, DH+
I/O Capacity	Up to 128, 000 I/O points (varies by configuration)
Redundancy	Supported (with specific modules)
Programming Software	Rockwell Automation Studio 5000 Logix Designer
Operating Temperature	0°C to 60°C (32°F to 140°F)
Programming Languages	Ladder Logic, Function Block Diagram, Structured Text, Sequential Function Chart
Modularity	Yes
Certifications	UL, CE
Processor Type	Multiple options available, including standard, safety, and extreme environment processors
Power Supply	Multiple options available, including standard and redundant power supplies with various voltage ranges (e.g., 24V DC, 120/240V AC)
