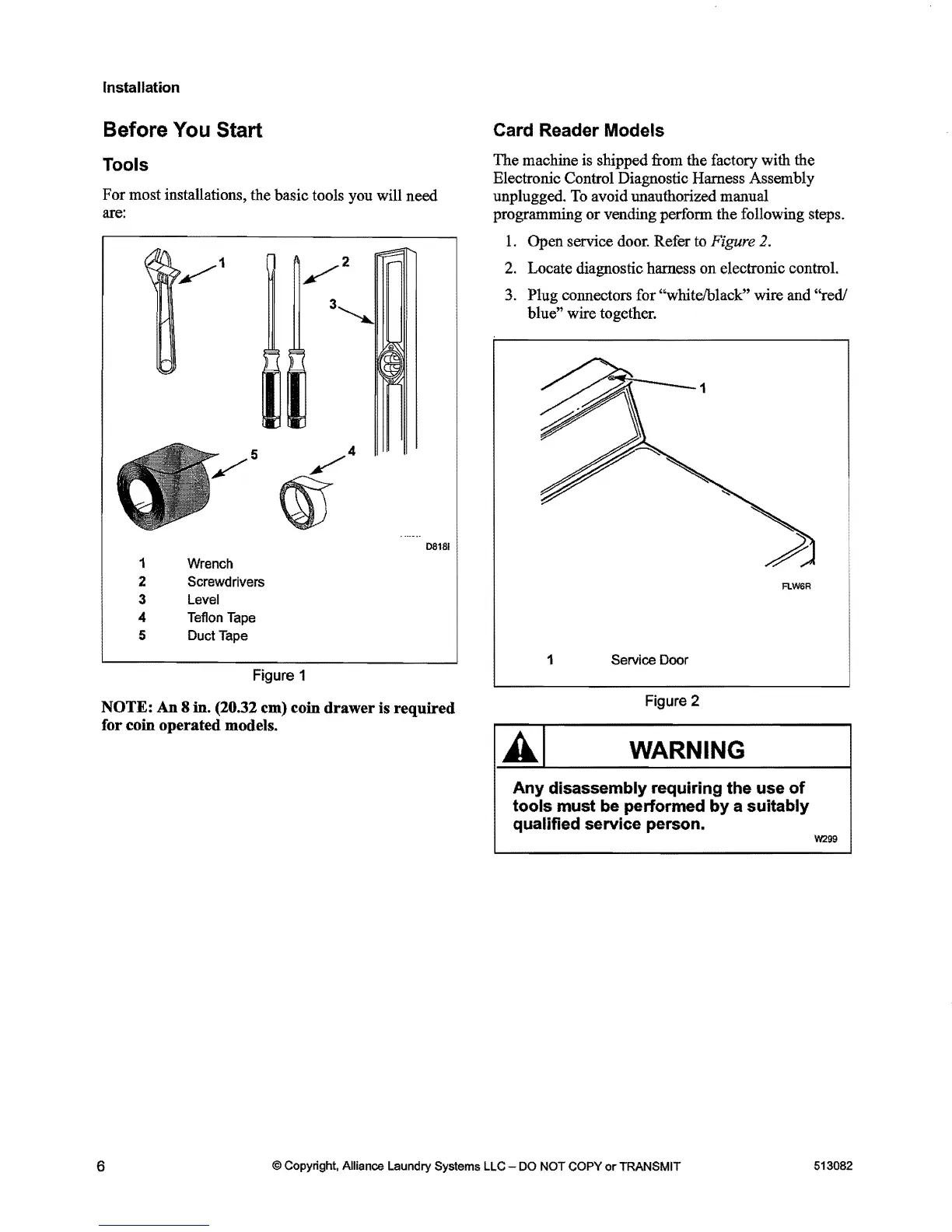

Alliance Laundry Systems FLW1526C - Before You Start; Tools; Card Reader Models

Installation
Before You Start
Tools
For most installations, the basic tools you will need
are:
08181
1
Wrench
2 Screwdrivers
3 Level
4 Teflon Tape
5
Duct Tape
Figure 1
NOTE:
An 8 in. (20.32 cm) coin drawer is required
for coin operated models.
Card Reader Models
The machine is shipped from the factory with the
Electronic Control Diagnostic Harness Assembly
unplugged.
To avoid unauthorized manual
programming
or vending perform the following steps.
1. Open service door. Refer to Figure 2.
2. Locate diagnostic harness on electronic control.
3. Plug connectors for "whitelblack" wire and "red!
blue" wire together.
FlW6R
1 Service Door
Figure 2
A.I
WARNING
Any disassembly requiring the use of
tools must be performed by a suitably
qualified service person.
