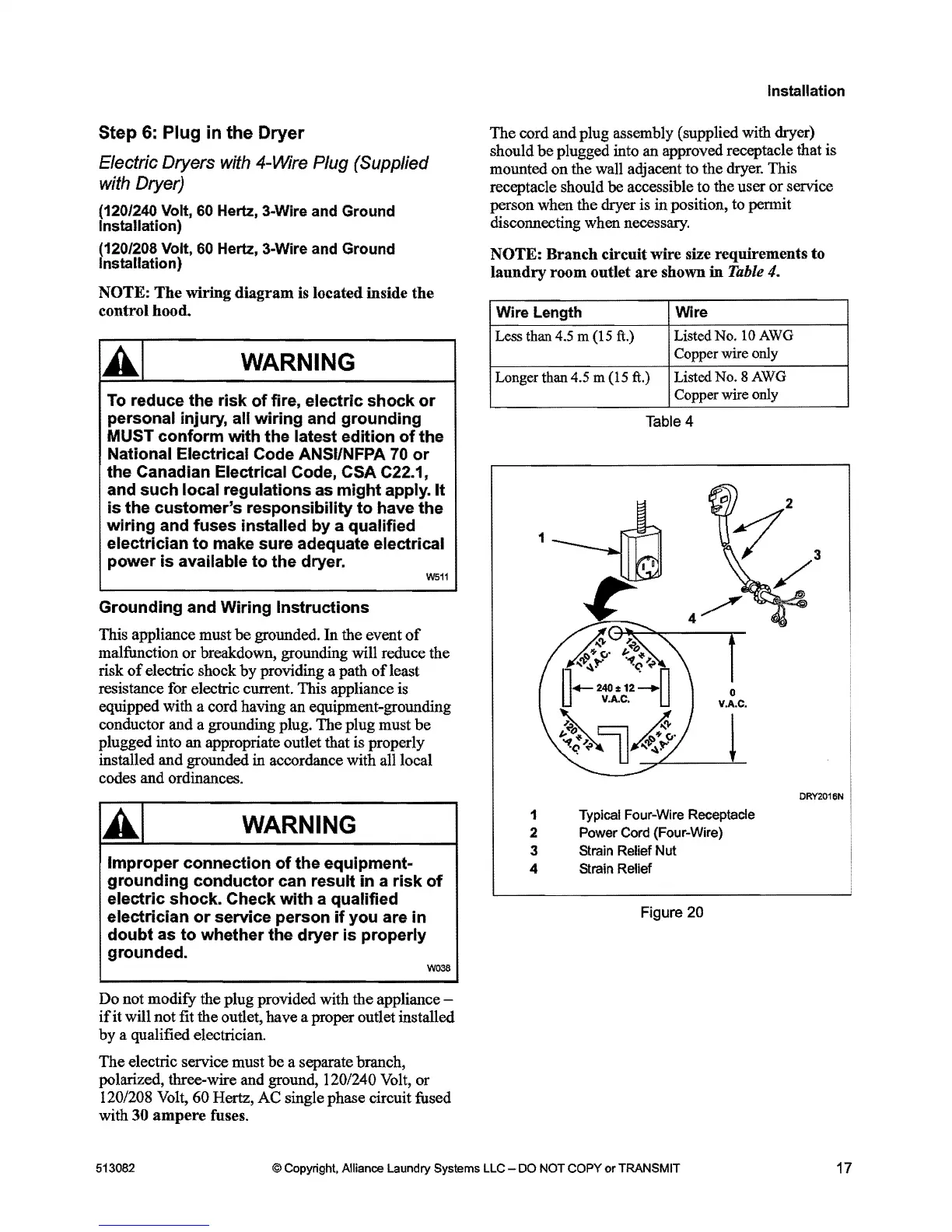

Step
6:
Plug in the Dryer
Electric Dryers with 4-Wire Plug (Supplied
with Dryer)
(120/240 Volt,
60
Hertz, 3-Wire and Ground
Installation)
(120/208 Volt, 60 Hertz, 3-Wire and Ground
fnstallation)
NOTE:
The
wiring
diagram
is located inside
the
control
hood.
.AI
WARNING
To
reduce the risk
of
fire, electric
shock
or
personal injury, all wiring and grounding
MUST
conform
with the latest edition
of
the
National Electrical Code ANSI/NFPA
70
or
the Canadian Electrical Code, CSA C22.1,
and
such
local regulations as
might
apply. It
is
the customer's responsibility
to
have
the
wiring
and fuses installed
by
a qualified
electrician
to
make sure adequate electrical
power
is
available
to
the
dryer.
W511
Grounding and Wiring Instructions
This appliance must
be
grounded. In the event
of
malfunction
or
breakdown, grounding will reduce the
risk
of
electric shock by providing a path
ofleast
resistance for electric current. This appliance is
equipped with a cord having an equipment-grounding
conductor and a grounding plug. The plug must
be
plugged into an appropriate outlet that is properly
installed and grounded in accordance with all local
codes and ordinances.
.AI
WARNING
Improper connection
of
the
equipment-
grounding
conductor
can result in a
risk
of
electric shock. Check
with
a qualified
electrician
or
service person
if
you are
in
doubt
as
to
whether the
dryer
is
properly
grounded.
W036
Do not modify the plug provided with the appliance -
if
it will not fit the outlet, have a proper outlet installed
by a qualified electrician.
The
electric service must
be
a separate branch,
polarized, three-wire and ground,
120/240
Volt, or
120/208
Volt, 60 Hertz,
AC
single phase circuit fused
with 30
ampere
fuses.
Installation
The cord and plug assembly (supplied with dryer)
should
be
plugged into an approved receptacle that is
mounted
on
the wall adjacent to the dryer. This
receptacle should
be
accessible to the user
or
service
person when the dryer is in position, to pennit
disconnecting when necessary.
NOTE:
Branch
circuit
wire
size
requirements
to
laundry
room
outlet
are
shown
in
Table 4.
Wire Length
Wire
Less than
4.5
m
(15
ft.)
Listed No.
10
AWG
Copper wire only
Longer than 4.5 m
(15
ft.)
Listed
No.8
AWG
Copper wire only
Table 4
o
V.A.C.
I
0RY2016N
1
2
3
Typical Four-Wire Receptacle
Power Cord (Four-Wire)
Strain Relief Nut
4
Strain Relief
Figure 20
513082
® Copyright, Alliance Laundry Systems LLC - DO NOT
COPY
or
TRANSMIT
17
