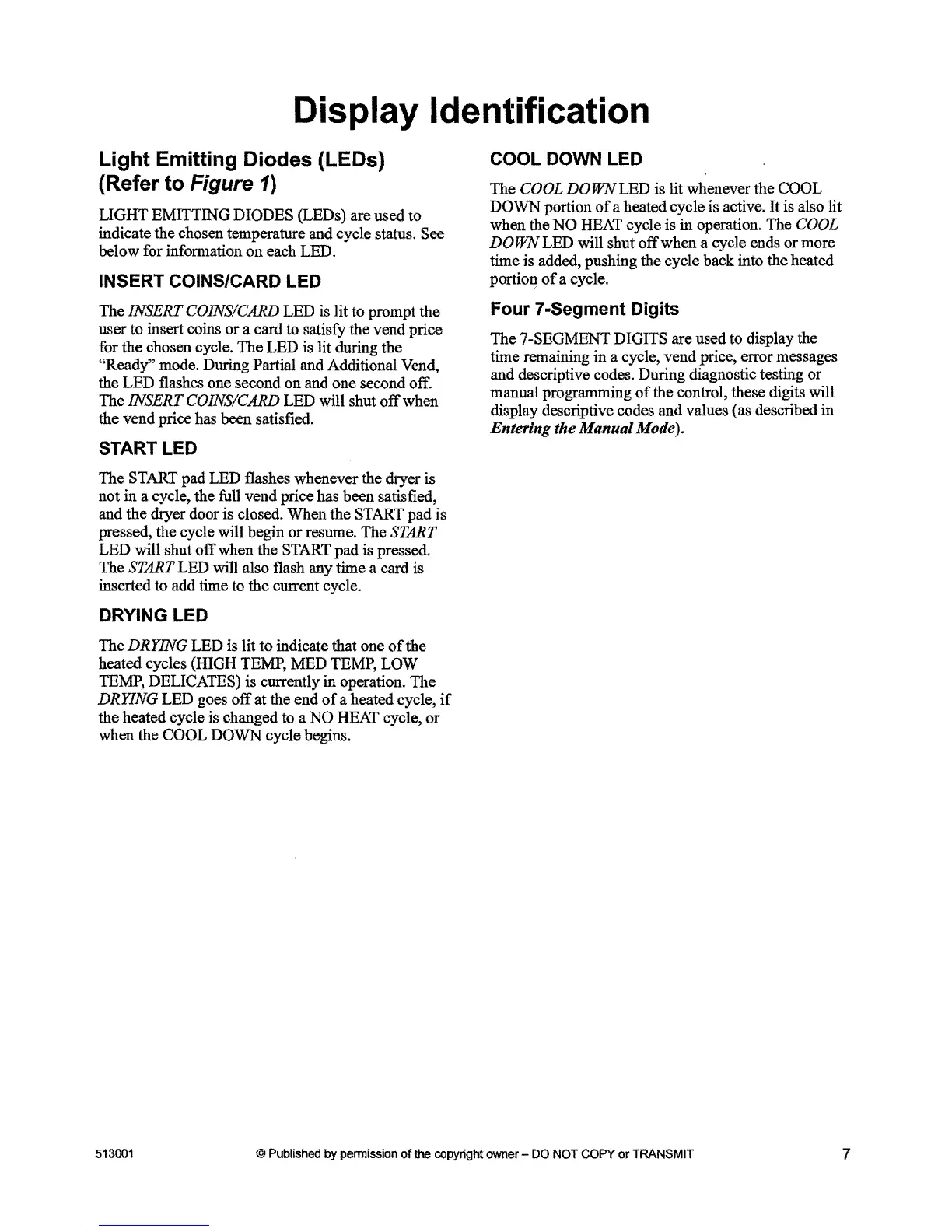

Display Identification
Light Emitting Diodes (LEOs)
(Refer to
Figure
1)
LIGHT EMITTING DIODES (LEDs) are used to
indicate the chosen temperature and cycle status. See
below for information
on
each LED.
INSERT COINS/CARD LED
The INSERT
COINS/CARD
LED is lit to prompt the
user to insert coins or a card
to
satisfy the vend price
for the chosen cycle. The LED
is
lit during the
"Ready" mode. During Partial and Additional Vend,
the LED flashes one second on and one second off.
The
INSERT COINS/CARD LED will shut
offwhen
the vend price has been satisfied.
STARTLED
The
START pad LED flashes whenever the dryer is
not in a cycle, the full vend price has been satisfied,.
and the dryer door is closed. When the START pad
1S
pressed, the cycle will begin or resume. The START
LED will shut
off
when the START pad is pressed.
The
START LED will also flash any time a card
is
inserted to add time to the current cycle.
DRYING LED
The
DRYING LED is lit
to
indicate that one
of
the
heated cycles (HIGH TEMP, MED TEMP, LOW
TEMP DELICATES) is currently in operation.
The
DRYING LED goes
off
at
the end
of
a heated cycle,
if
the heated cycle is changed to a
NO
HEAT cycle,
or
when the COOL DOWN cycle begins.
COOL DOWN LED
The
COOL
DOWN LED is lit whenever the COOL
DOWN portion
of
a heated cycle is active. It is also lit
when the
NO
HEAT cycle is in operation. The
COOL
DOWN LED will shut
offwhen
a cycle ends or more
time is added, pushing the cycle back into the heated
portion
of
a cycle.
Four 7·Segment Digits
The 7-SEGMENT DIGITS are used to display the
time remaining in a cycle, vend price, error messages
and descriptive codes. During diagnostic
tes~g
or.
manual programming
of
the control, these
dl~ts
w~ll
display descriptive codes and values (as descnbed
ill
Entering the Manual Mode).
