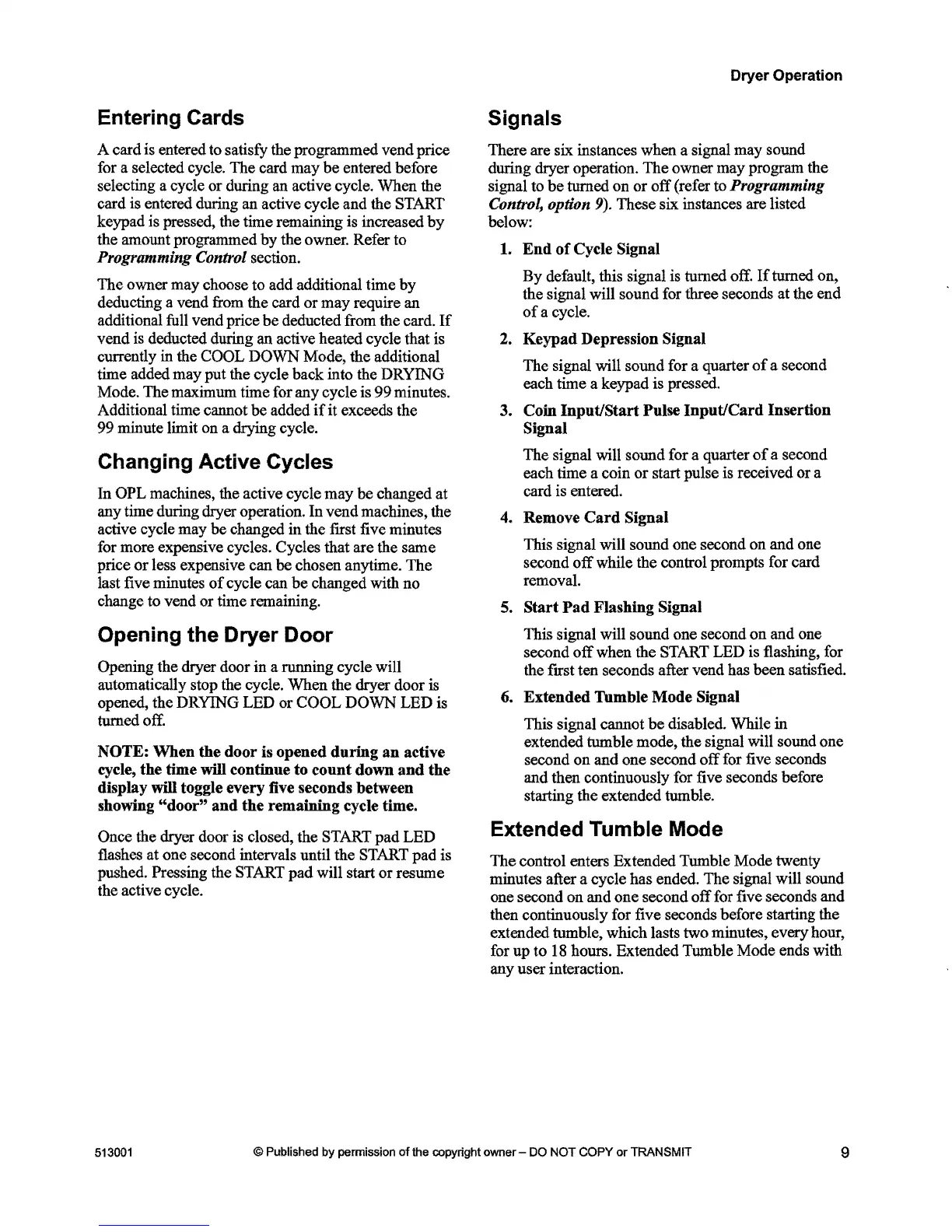

Dryer Operation
Entering Cards
A card is entered to satisfy the programmed vend price
for a selected cycle. The card may
be
entered before
selecting a cycle or during an active cycle. When the
card is entered during an active cycle and the START
keypad is pressed, the time remaining is increased
by
the amount programmed by the owner. Refer to
Programming Control section.
The
owner may choose to add additional time by
deducting a vend from the card or may require an
additional full vend price
be
deducted from the card.
If
vend
is
deducted during an active heated cycle that is
currently in the COOL DOWN Mode, the additional
time added may put the cycle back into the DRYING
Mode. The maximum time for any cycle is
99
minutes.
Additional time cannot
be added
if
it
exceeds the
99 minute limit on a drying cycle.
Changing Active Cycles
In
OPL machines, the active cycle may be changed at
any time during dryer operation. In vend machines, the
active cycle may
be changed in the first five minutes
for more expensive cycles. Cycles that are the same
price
or
less expensive can be chosen anytime. The
last five minutes
of
cycle can
be
changed with no
change to vend
or
time remaining.
Opening the Dryer Door
Opening the dryer door in a running cycle will
automatically stop the cycle. When the dryer door
is
opened, the DRYING LED or COOL DOWN LED is
turned off.
NOTE:
When
the
door
is
opened
during
an
active
cycle,
the
time
will
continue
to
count
down
and
the
display
will
toggle every five seconds between
showing
"door"
and
the
remaining
cycle time.
Once the dryer door is closed, the START
pad
LED
flashes at one second intervals until the START
pad
is
pushed. Pressing the START
pad
will start or resume
the active cycle.
Signals
There are six instances when a signal may sound
during dryer operation. The owner may program the
signal to
be
turned on or
off
(refer to Programming
Control,
option 9). These six instances are listed
below:
1.
End
of
Cycle Signal
By
default, this signal is turned off.
If
turned on,
the signal will sound for three seconds at the end
ofa
cycle.
2.
Keypad
Depression Signal
The signal will sound for a quarter
of
a second
each time a keypad is pressed.
3. Coin
Input/Start
Pulse
Input/Card
Insertion
Signal
The signal will sound for a quarter
of
a second
each time a coin or start pulse is received
or
a
card is entered.
4. Remove
Card
Signal
This signal will sound one second on and one
second
off
while the control prompts for card
removal.
5.
Start
Pad
Flashing
Signal
This signal will sound one second
on
and one
second
off
when the START LED is flashing, for
the first ten seconds after vend has been satisfied.
6.
Extended
Tumble
Mode
Signal
This signal cannot
be
disabled. While in
extended tumble mode, the signal will sound one
second on
and
one second
off
for five seconds
and then continuously for five seconds before
starting the extended tumble.
Extended Tumble Mode
The control enters Extended Tumble Mode twenty
minutes after a cycle has ended. The signal will sound
one second on and
one
second
off
for five seconds and
then continuously for five seconds before starting the
extended tumble, which lasts two minutes, every hour,
for up
to
18
hours. Extended Tumble Mode ends with
any user interaction.
513001
© Published
by
permission
of
the
copyright
owner
- DO
NOT
COPY
or
TRANSMIT
9
