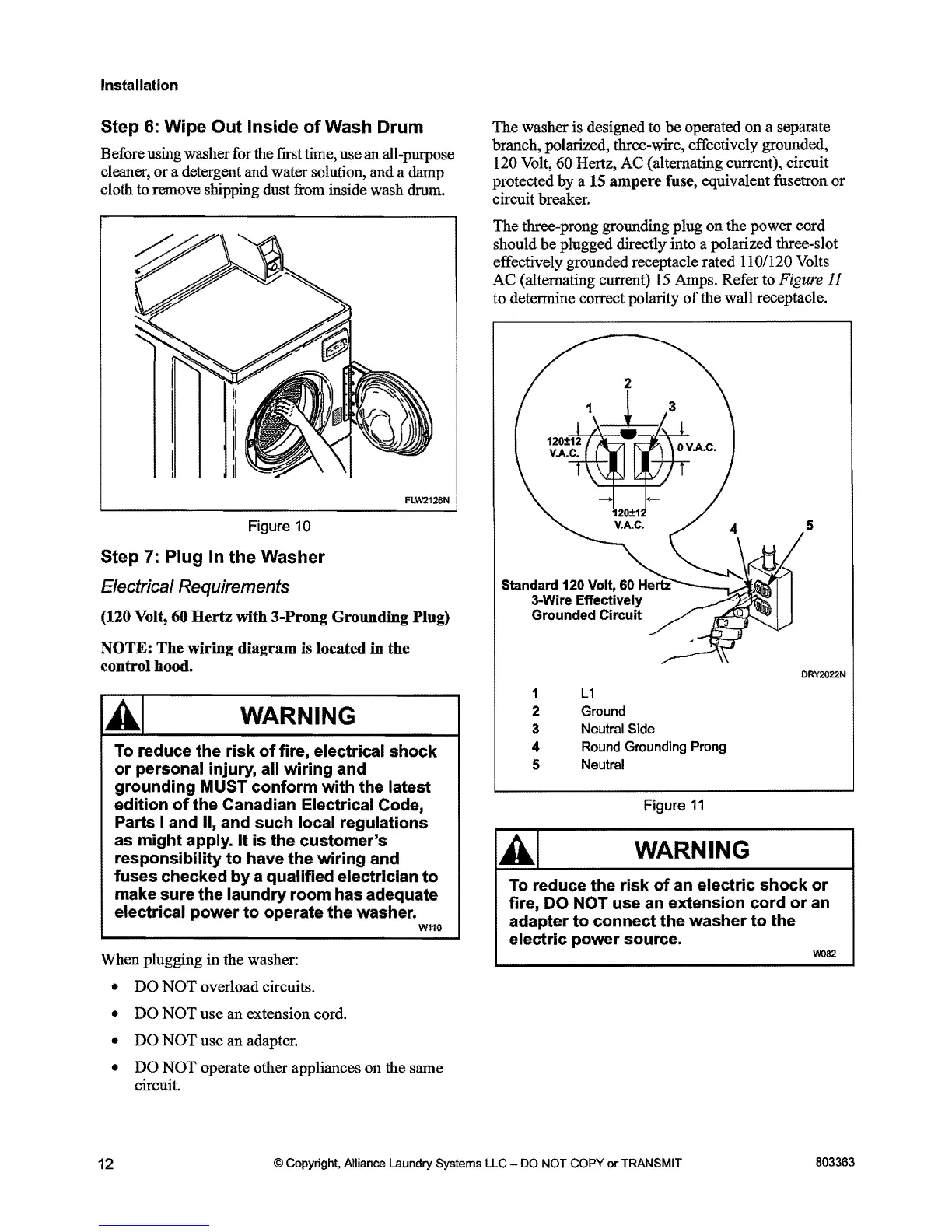

Installation
Step
6:
Wipe Out Inside
of
Wash Drum
Before using washer for the frrst time, use an all-purpose
cleaner,
or
a detergent and water solution, and a damp
cloth to remove shipping dust from inside wash drum.
FLW2126N
Figure 10
Step 7: Plug In the Washer
Electrical Requirements
(120 Volt,
60
Hertz
with
3-Prong
Grounding
Plug)
NOTE:
The
wiring
diagram
is
located
in
the
control
hood.
AI
WARNING
To
reduce the
risk
of
fire, electrical
shock
or
personal injury, all
wiring
and
grounding MUST
conform
with
the latest
edition
of
the Canadian Electrical Code,
Parts I and II, and
such
local regulations
as
might
apply.
It
is
the customer's
responsibility
to
have the
wiring
and
fuses checked
by
a qualified electrician
to
make sure the
laundry
room
has adequate
electrical
power
to
operate the washer.
W110
When plugging
in
the washer:
•
DO
NOT
overload circuits.
•
DO
NOT
use
an extension cord.
•
DO
NOT
use
an adapter.
•
DO
NOT
operate other appliances
on
the same
circuit.
The washer is designed to
be
operated
on
a separate
branch, polarized, three-wire, effectively grounded,
120 Volt, 60 Hertz,
AC
(alternating current), circuit
protected
by
a
15
ampere
fuse, equivalent fusetron
or
circuit breaker.
The
three-prong grounding plug
on
the power cord
should
be
plugged directly into a polarized three-slot
effectively grounded receptacle rated 1101120 Volts
AC
(alternating current)
15
Amps. Refer to Figure
11
to
determine correct polarity
of
the wall receptacle.
Standard 120 Volt,
60
Hertz
3-Wire Effectively
Grounded Circuit
ORY2022N
1
L1
2
Ground
3 Neutral Side
4
Round
Grounding
Prong
5 Neutral
Figure
11
AI
WARNING
To reduce the risk
of
an electric
shock
or
fire,
DO
NOT use an extension
cord
or
an
adapter
to
connect the washer
to
the
electric power source.
W082
12
© Copyright, Alliance Laundry Systems
LLC
-
