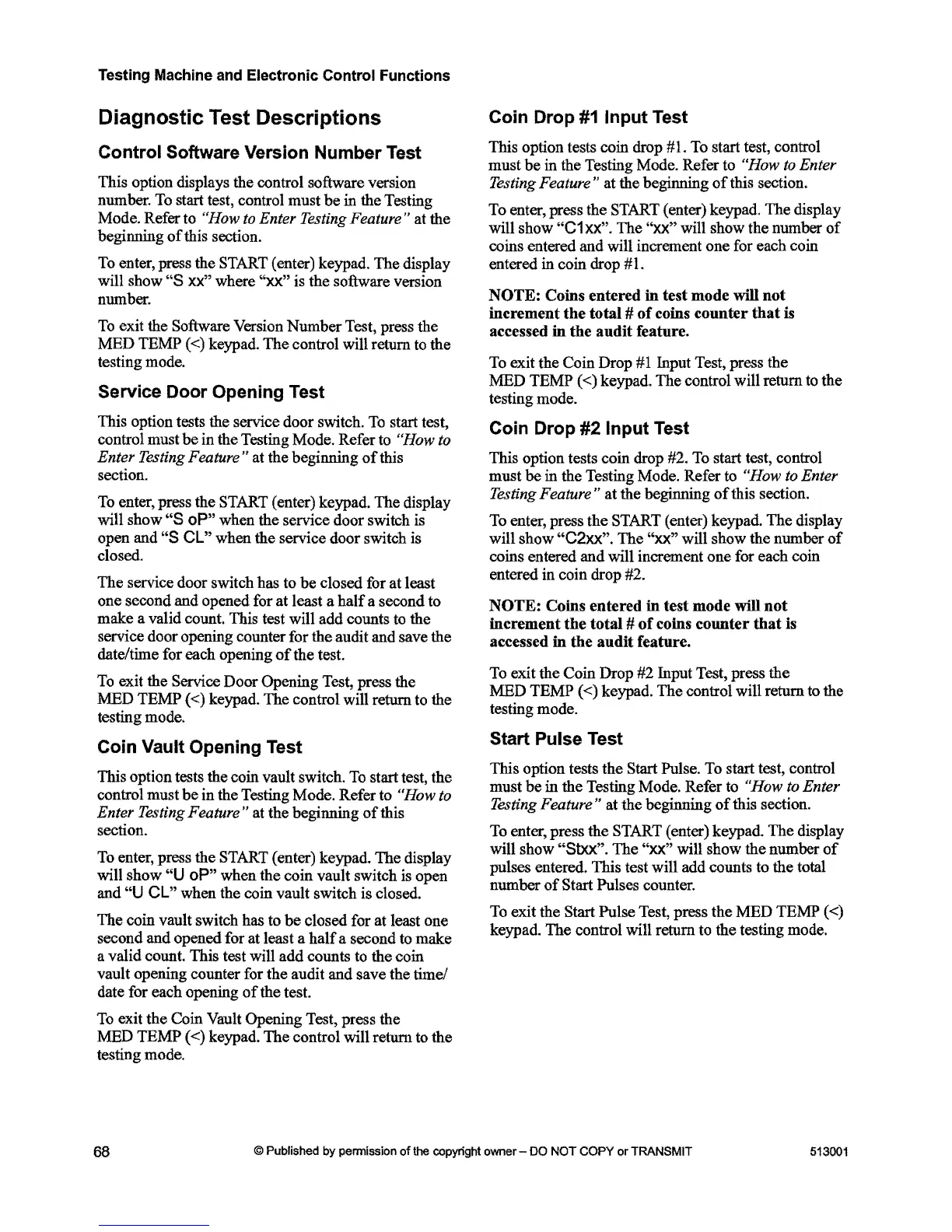

Testing Machine and Electronic Control Functions
Diagnostic Test Descriptions
Control Software Version Number Test
This option displays the control software version
number.
To
start test, control must
be
in the Testing
Mode. Refer to
"How
to
Enter Testing Feature" at the
beginning
of
this section.
To
enter, press the START ( enter) keypad. The display
will show
"S xx" where ''xx'' is the software version
number.
To
exit the Software Version Number Test, press the
MED
TEMP
«)
keypad.
The
control will return to the
testing mode.
Service Door Opening Test
This option tests the service door switch.
To
start test,
control must
be
in the Testing Mode. Refer
to
"How to
Enter Testing Feature"
at the beginning
of
this
section.
To
enter, press the START (enter) keypad. The display
will show
"S
oP"
when the service door switch is
open and
"S
CL"
when the service door switch is
closed.
The service door switch has to
be
closed for at least
one second and opened for at least a
half
a second to
make a valid count. This test will add counts to the
service door opening counter for the audit and save the
date/time for each opening
of
the test.
To exit the Service Door Opening Test, press the
MED TEMP
«)
keypad. The control will return to the
testing mode.
Coin Vault Opening Test
This option tests the coin vault switch.
To
start test, the
control must
be
in the Testing Mode. Refer to "How to
Enter Testing Feature"
at the beginning
of
this
section.
To enter, press the
START (enter) keypad. The display
will show
"U
oP"
when the coin vault switch is open
and "U
CL"
when the coin vault switch is closed.
The coin vault switch has to
be
closed for at least one
second and opened for at least a
half
a second to make
a valid count. This test will
add
counts
to
the coin
vault opening counter for the audit and save the time!
date for each opening
of
the test.
To
exit the Coin Vault Opening Test, press the
MED TEMP
«)
keypad. The control will return
to
the
testing mode.
Coin Drop
#1
Input Test
This option tests coin drop
#1.
To start test, control
must
be
in the Testing Mode. Refer to "How
to
Enter
Testing Feature"
at the beginning
of
this section.
To enter, press the START (enter) keypad. The display
will show "C1xx". The "xx" will show the number
of
coins entered and will increment
one
for each coin
entered in coin drop
#1.
NOTE: Coins entered in test mode will not
increment the total
#
of
coins counter
that
is
accessed in the audit feature.
To
exit the Coin Drop
#1
Input Test, press the
MED TEMP
«)
keypad. The control will return
to
the
testing mode.
Coin Drop #2 Input Test
This option tests coin drop #2. To start test, control
must
be
in the Testing Mode. Refer to "How to Enter
Testing Feature"
at
the beginning
of
this section.
To
enter, press the START (enter) keypad.
The
display
will show
"C2xx".
The "xx" will show the number
of
coins entered and will increment
one
for each coin
entered in coin drop #2.
NOTE: Coins entered in test mode
will
not
increment the total #
of
coins counter
that
is
accessed in the audit feature.
To
exit the Coin Drop #2 Input Test, press
the
MED TEMP
«)
keypad. The control will return to the
testing mode.
Start Pulse Test
This option tests the Start Pulse. To start test, control
must
be
in the Testing Mode. Refer to "How to Enter
Testing Feature"
at the beginning
of
this section.
To enter, press the START (enter) keypad.
The
display
will show
"Stxx". The "xx" will show the number
of
pulses entered. This test will add counts to the total
number
of
Start Pulses counter.
To exit the Start Pulse Test, press the MED TEMP
«)
keypad. The control will return to the testing mode.
