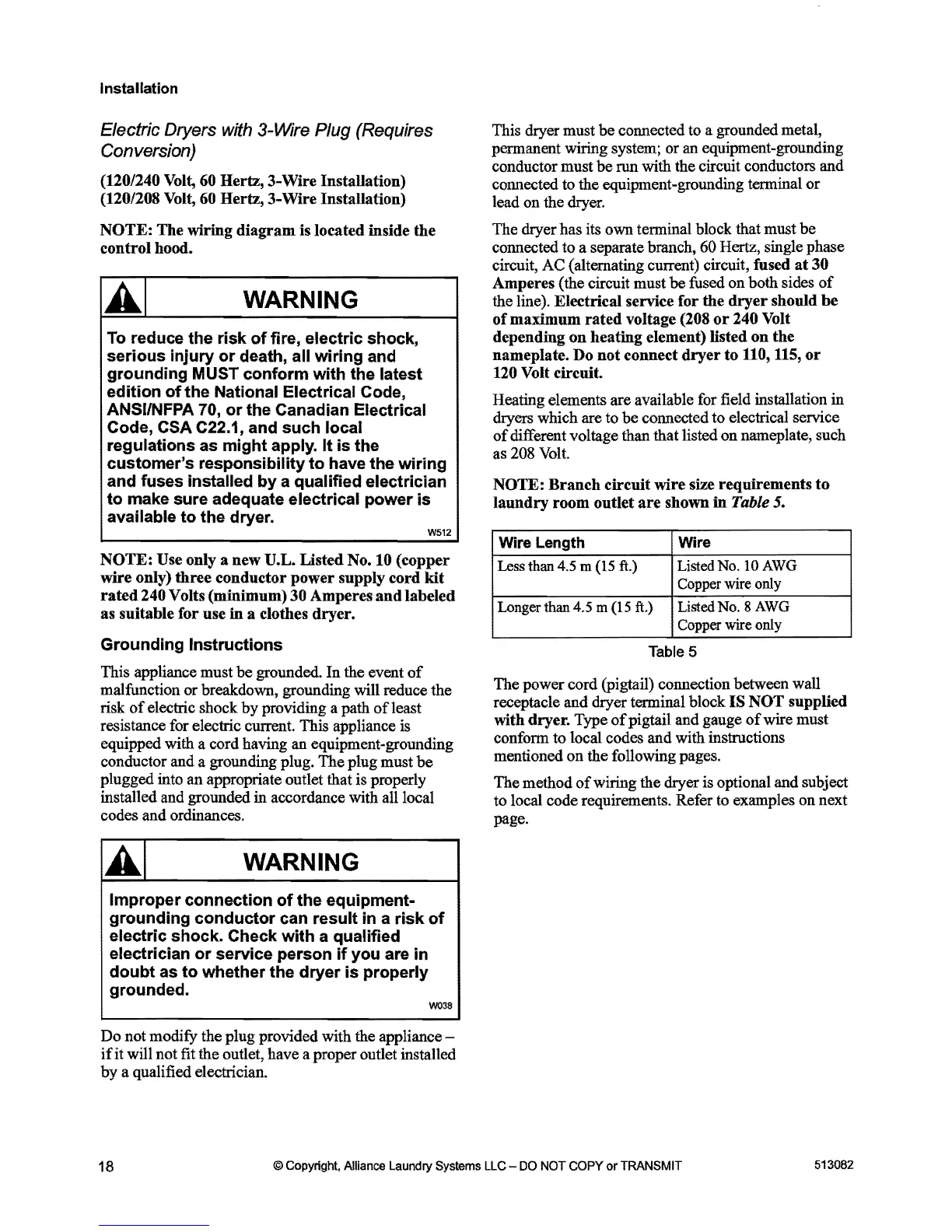

Installation
Electric Dryers with 3-Wire Plug (Requires
Conversion)
(120/240 Volt, 60
Hertz,
3-
Wire
Installation)
(120/208 Volt, 60
Hertz,
3-
Wire
Installation)
NOTE:
The
wiring
diagram
is located inside
the
control
hood.
AI
WARNING
To reduce the
risk
of
fire, electric shock,
serious
injury
or
death, all wiring and
grounding MUST conform with the latest
edition
of
the National Electrical Code,
ANSI/NFPA
70,
or
the Canadian Electrical
Code, CSA C22.1, and
such
local
regulations as
might
apply.
It
is
the
customer's responsibility
to
have the
wiring
and fuses installed
by
a qualified electrician
to
make sure adequate electrical power
is
available
to
the dryer.
W512
NOTE:
Use
only
a
new
U.L.
Listed
No. 10
(copper
wire
only)
three
conductor
power
supply
cord
kit
rated
240 Volts
(minimum)
30
Amperes
and
labeled
as
suitable
for
use
in
a clothes
dryer.
Grounding Instructions
This appliance must
be
grounded. In the event
of
malfunction or breakdown, grounding will reduce the
risk
of
electric shock
by
providing a path
ofleast
resistance for electric current. This appliance is
equipped with a cord having an equipment-grounding
conductor and a grounding plug.
The
plug must
be
plugged into an appropriate outlet that is properly
installed and grounded in accordance with all local
codes and ordinances.
This dryer must
be
connected to a grounded metal,
permanent wiring system; or an equipment-grounding
conductor must
be
run with the circuit conductors and
connected to the equipment-grounding terminal
or
lead on the dryer.
The dryer has its own terminal block that must
be
connected to a separate branch,
60
Hertz, single phase
circuit, AC (alternating current) circuit,
fused
at
30
Amperes
(the circuit must
be
fused on both sides
of
the line).
Electrical
service
for
the
dryer
should
be
of
maximum
rated
voltage (208
or
240 Volt
depending
on
heating
element) listed
on
the
nameplate.
Do
not
connect
dryer
to
110, 115,
or
120 Volt circuit.
Heating elements are available for field installation in
dryers which are to
be
connected to electrical service
of
different voltage than that listed on nameplate, such
as
208
Volt.
NOTE:
Branch
circuit
wire
size
requirements
to
laundry
room
outlet
are
shown
in
Table
5.
Wire Length
Wire
Less than 4.5 m (15 ft.) Listed No. 10 AWG
Copper wire only
Longer than 4.5 m (15
ft.)
I
~~~~
No.8
AWG
Copper wire only
Table
5
The power cord (pigtail) connection between wall
receptacle and dryer terminal block
IS
NOT
supplied
with
dryer.
Type
of
pigtail and gauge
of
wire must
conform to local codes and with instructions
mentioned
on
the following pages.
The
method
of
wiring the dryer is optional and subject
to local code requirements. Refer to examples on next
page.
AI
WARNING
Improper connection
of
the equipment-
grounding
conductor
can result in a
risk
of
electric shock. Check
with
a qualified
electrician
or
service person
if
you are in
doubt
as
to
whether the
dryer
is
properly
grounded.
woos
Do
not modify the plug provided with the appliance
if
it will not fit the outlet, have a proper outlet installed
by
a qualified electrician.
18
@ Copyright, Alliance Laundry Systems LLC - DO NOT
COpy
or
TRANSMIT
513082
