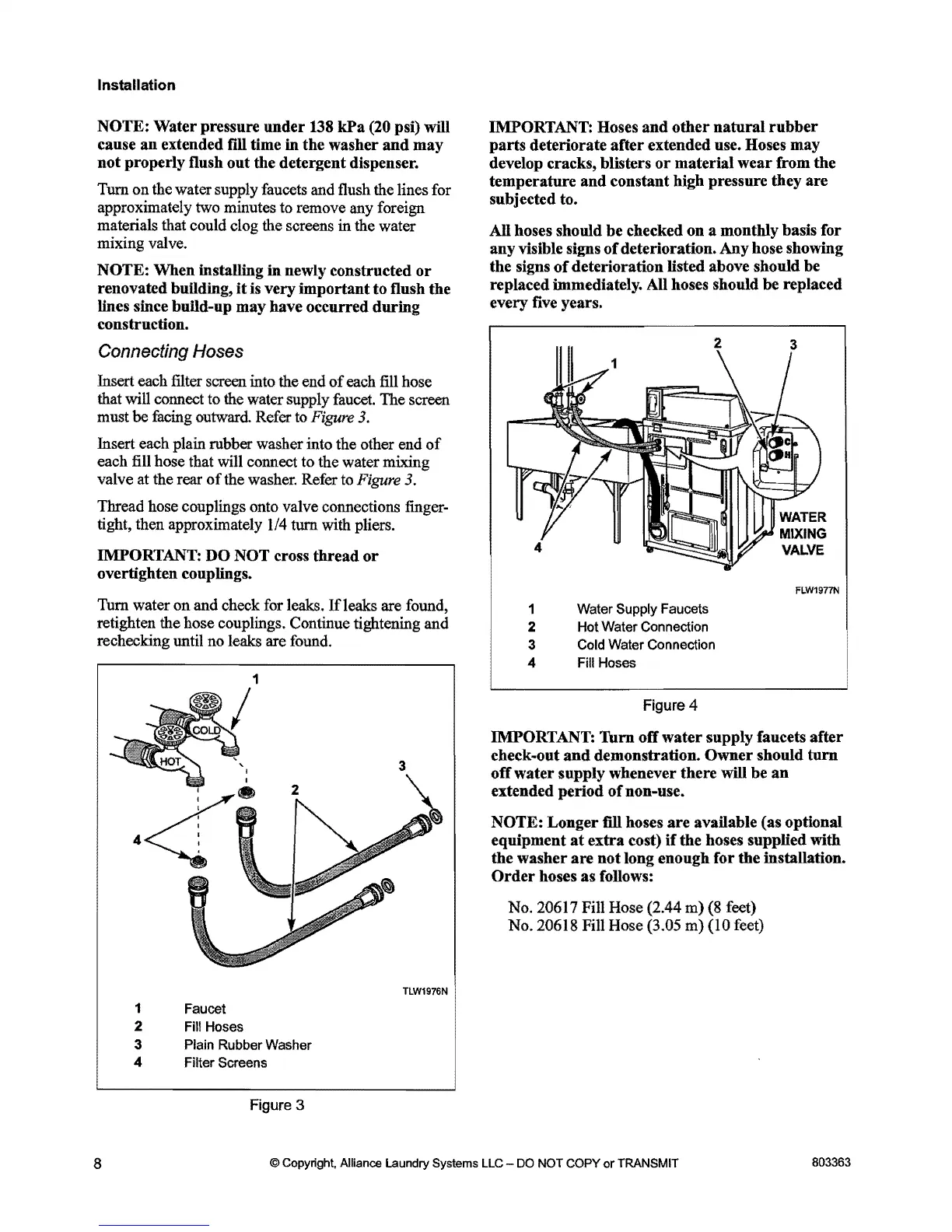

Installation
NOTE:
Water
pressure
under
138
kPa
(20 psi)
will
cause
an
extended
fill
time in the washer
and
may
not
properly flush
out
the detergent dispenser.
Tum on the water supply faucets and flush the lines for
approximately two minutes to remove any foreign
materials that could clog the screens in the water
mixing valve.
NOTE:
When
installing
in
newly constructed
or
renovated building,
it
is
very
important
to
flush the
lines since build-up
may
have
occurred
during
construction.
Connecting Hoses
Insert each filter screen into the end
of
each fill hose
that will connect to the water supply faucet. The screen
must be facing outward. Refer to
Figure 3.
Insert each plain rubber washer into the other end
of
each fill hose that will connect to the water mixing
valve at the rear
of
the washer. Refer to Figure 3.
Thread hose couplings onto valve connections finger-
tight, then approximately
114
turn with pliers.
IMPORTANT:
DO
NOT
cross
thread
or
overtighten couplings.
Tum water on and check for leaks.
If
leaks are found,
retighten the hose couplings. Continue tightening and
rechecking until no leaks are found.
1
TLW1976N
1 Faucet
2
Fill
Hoses
3 Plain Rubber Washer
4 Filter Screens
Figure 3
IMPORTANT: Hoses
and
other
natural
rubber
parts
deteriorate
after
extended use. Hoses
may
develop cracks, blisters
or
material
wear
from the
temperature
and
constant high pressure they
are
subjected to.
All hoses should
be
checked
on
a monthly basis for
any
visible signs
of
deterioration. Any hose showing
the signs
of
deterioration listed above should be
replaced immediately. All hoses should be replaced
every five years.
1
2
3
4
2
Water Supply Faucets
Hot Water Connection
Cold
Water Connection
Fill Hoses
3
FLW1977N
Figure 4
IMPORTANT:
Tum
off
water
supply faucets
after
check-out
and
demonstration.
Owner
should
turn
off
water
supply whenever there
will
be
an
extended
period
of
non-use.
NOTE:
Longer
fill
hoses
are
available (as optional
equipment
at
extra
cost)
if
the hoses supplied with
the
washer
are
not
long
enough
for
the installation.
Order
hoses
as
follows:
No. 20617 Fill Hose (2.44 m) (8 feet)
No. 20618 Fill Hose (3.05 m) (10 feet)
8
@ Copyright. Alliance
laundry
Systems LLC - DO NOT COPY
or
TRANSMIT
803363
