Allied Telesis AlliedWare Plus GS980MX Series User Manual

Chapter 5: Installing the Switch in an Equipment Rack
114

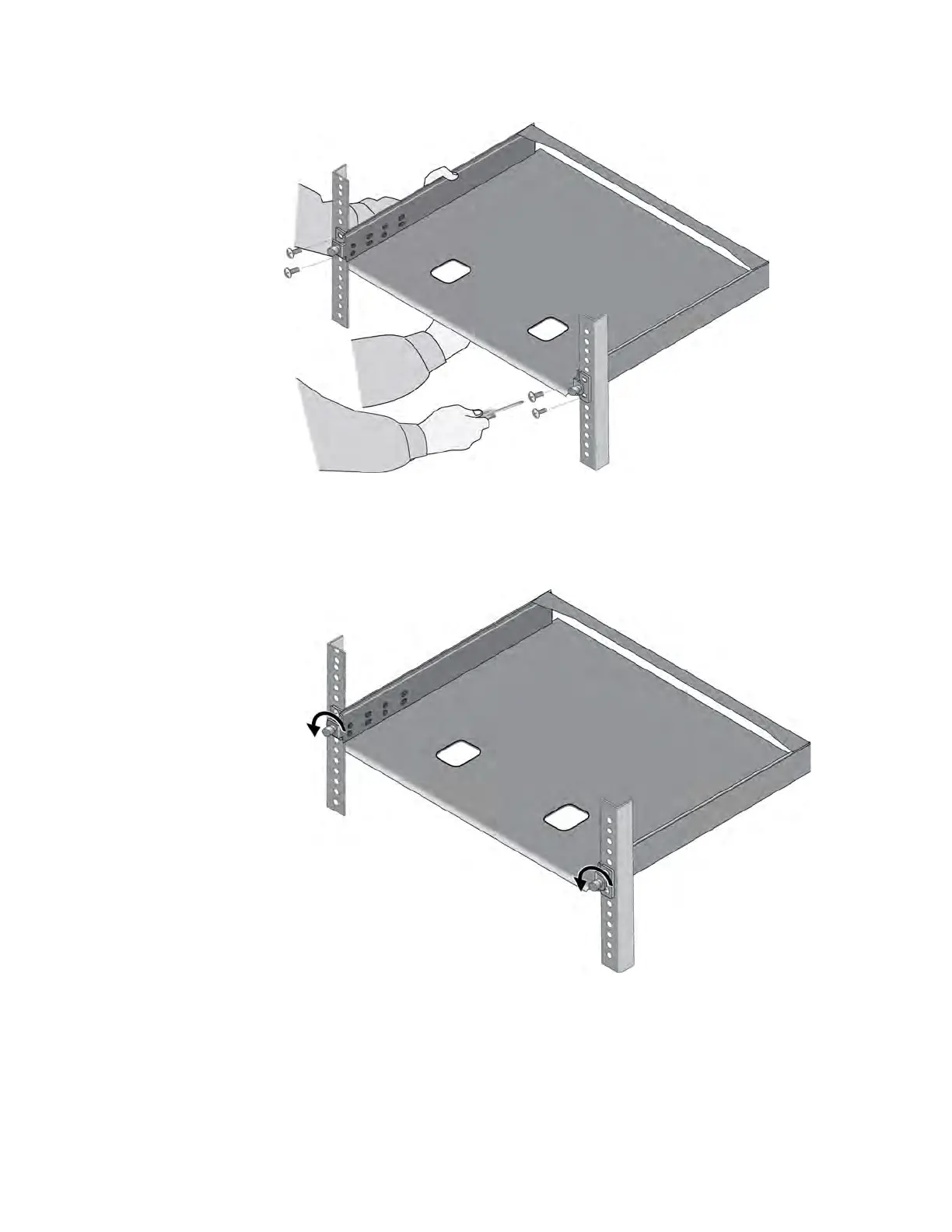

Figure 57. Installing the RKMT-J15 Bracket in the Equipment Rack
2. Loosen the two thumbscrews on the front of the bracket. Refer to
Figure 58.
Figure 58. Loosening the Two Thumbscrews on the Front of the RKMT-
J15 Bracket
3. Slide out the bracket tray. Refer to Figure 59.
