Note
If you are ready to attach the fiber optic cable to the transceiver,
continue with the next step. Otherwise, repeat steps 1 through 5 to
install the remaining transceivers in the switch.
5. Verify the position of the handle on the transceiver. If the transceiver is
in a top port, the handle must be in the upright position, as shown in
Figure 92. If the transceiver is in a bottom port, the handle must be in
the down position.

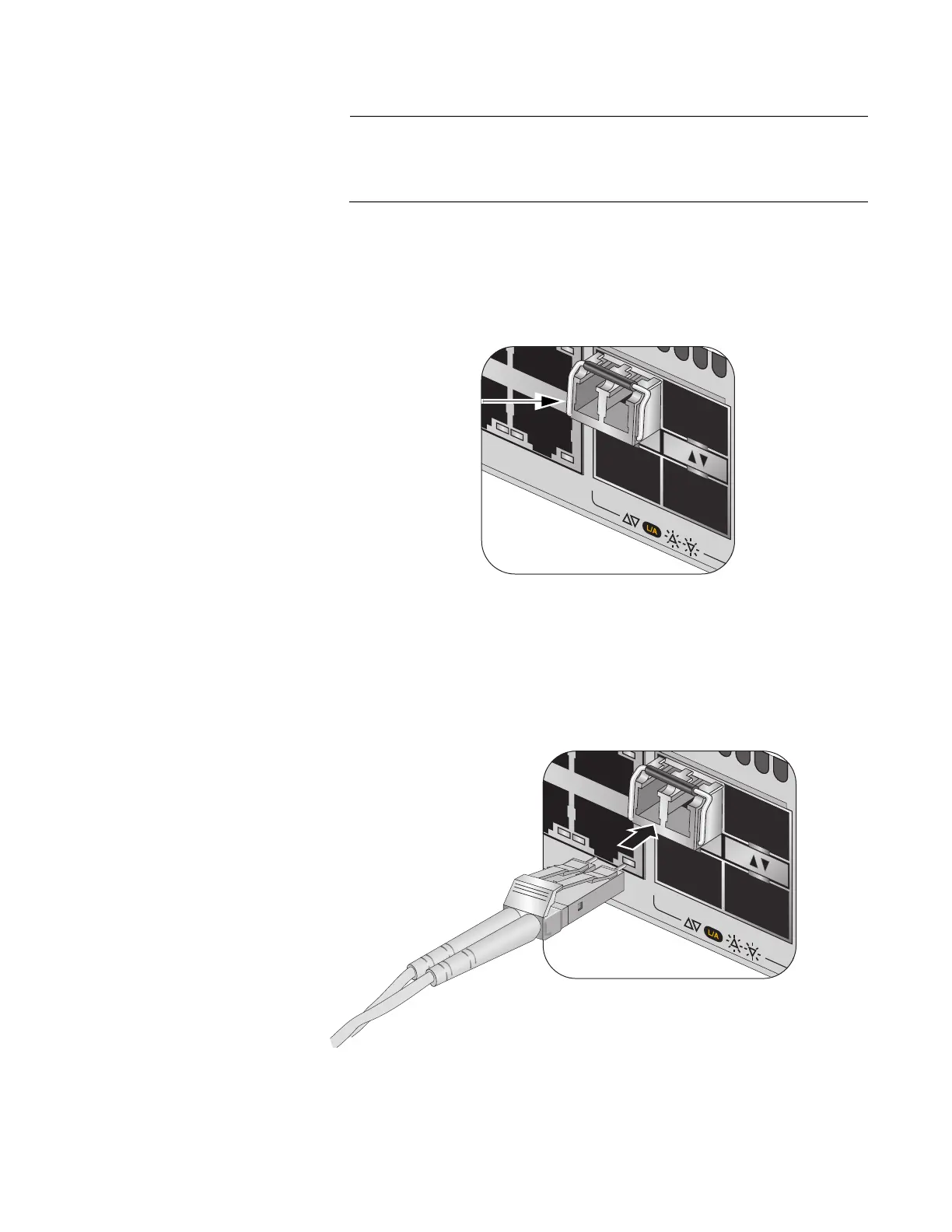

Figure 92. Positioning the SFP or SFP+ Handle in the Upright Position
6. Connect the fiber optic cable to the transceiver, as shown in Figure 93.
The connector on the cable must fit snugly into the port, and the tab
must lock the connector into place.
Figure 93. Connecting a Fiber Optic Cable to an SFP or SFP+ Transceiver
7. Repeat this procedure to install additional transceivers.
27/S1
25 SFP+
26
10G/1G
2
5G/2.5G/1G/100
4576
SFP Handle
27/S1
25 SFP+
26
10G/1G
2
5G/2.5G/1G/100
4577
