You can use the different sets of holes on the switch to install the switch in
the equipment rack in a variety of orientations. You can install it with the
front panel flush with, extending in front of, or recessed behind the front of
the equipment rack. Refer to Figure 65.

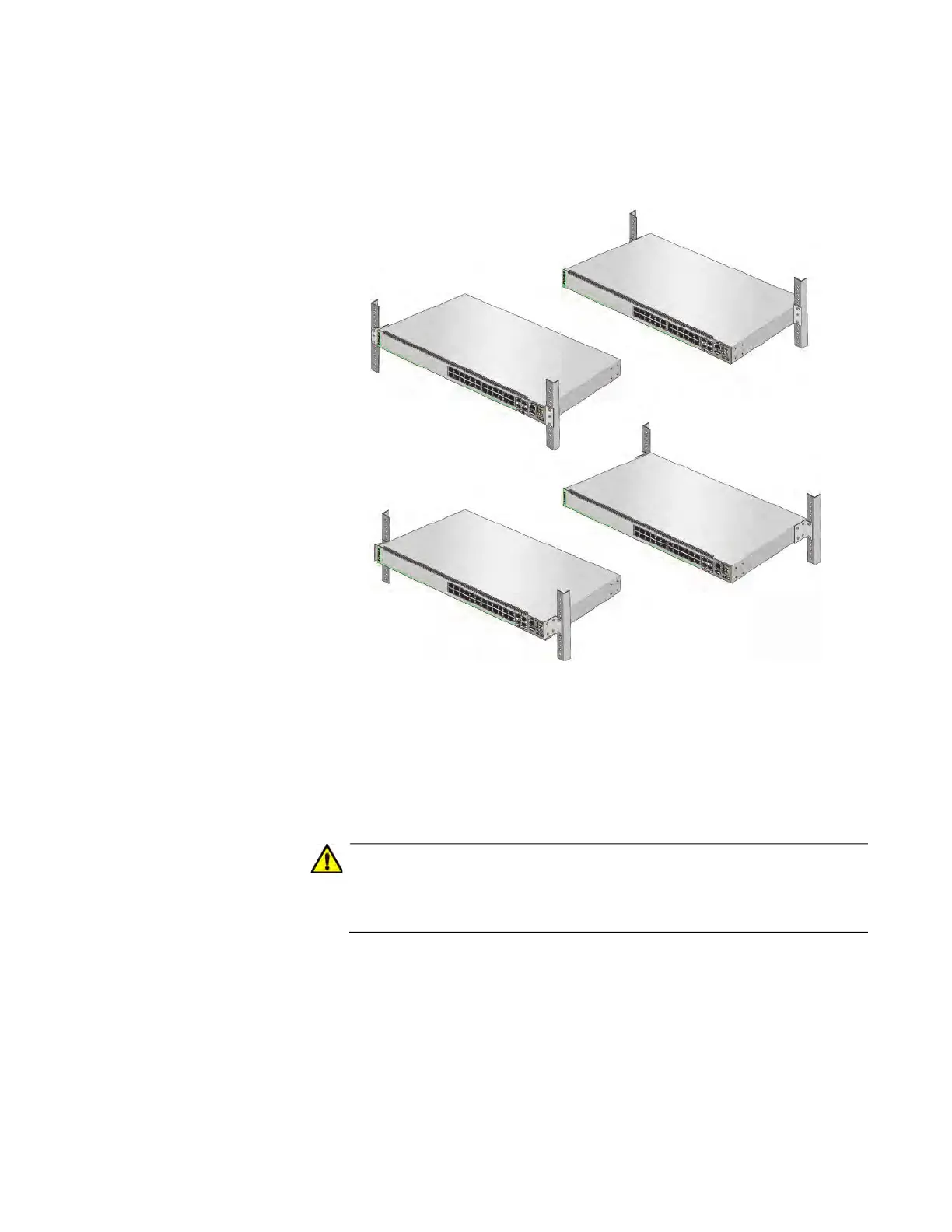

Figure 65. Switch Orientations in an Equipment Rack
Installing the
Switch
If you have not chosen an orientation for the switch in the equipment rack,
review “Switch Orientations in the Equipment Rack” on page 118.
Please review the installation guidelines in “Choosing a Site for the Switch”
on page 93 before installing the switch in an equipment rack.
Caution
The chassis can be heavy and awkward to lift. Allied Telesis
recommends that you get assistance when mounting the chassis in
an equipment rack. E28
