SFP+ Transceiver Ports
1Gbps/10Gbps
SFP or SFP+
Transceivers
The following ports support 1Gbps/10Gbps SFP or SFP+ transceivers:
GS980MX/10HSm switch has two ports (ports 9-10)
GS980MX/18HSm switch has two ports (ports 17 - 18)
GS980MX/28 and GS980MX/28PSm switches have four ports
(ports 25-28)
GS980MX/52 and GS980MX/52PSm switches have four ports
(ports 49-52)
See “SFP Transceiver Ports” on page 25 for a description and guidelines
of the SFP+ transceivers.
Note
SFP or SFP+ transceivers must be purchased separately. For a list
of supported transceivers, refer to the product data sheet on the
Allied Telesis web site.
LEDs Each transceiver port has one LED. The LEDs are located between the
ports. Refer to Figure 18.

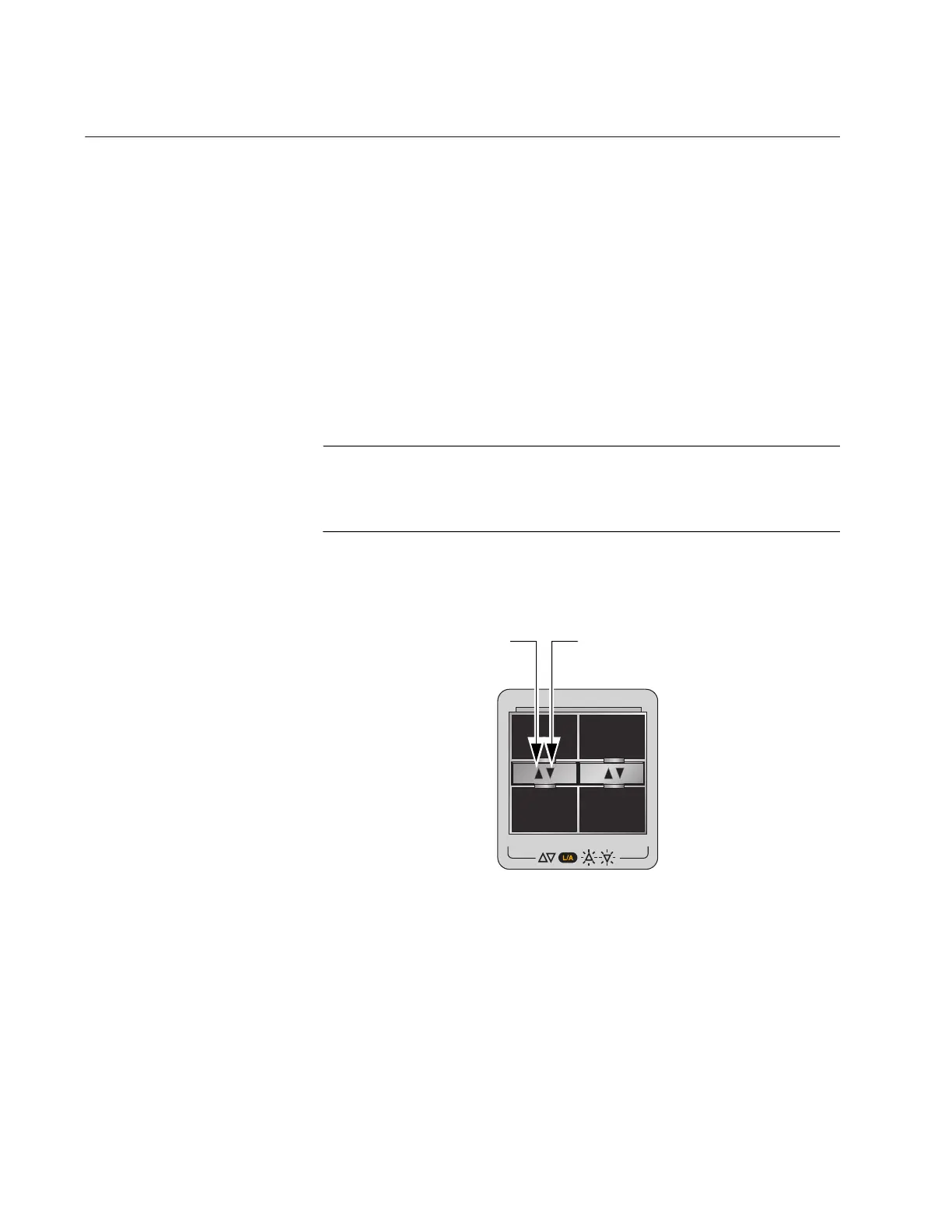

Figure 18. Link and Activity LEDs for the 1Gbps SFP/10Gbps SFP+ Ports
27/S1
28/S2
25 SFP+
26
10G/1G
4566
Top Transceiver Port LED Bottom Transceiver Port LED
