Chapter 3: Beginning the Installation
98
Figure 39 lists the items in the accessory kit. Contact your Allied Telesis
sales representative for assistance if any item is missing or damaged.

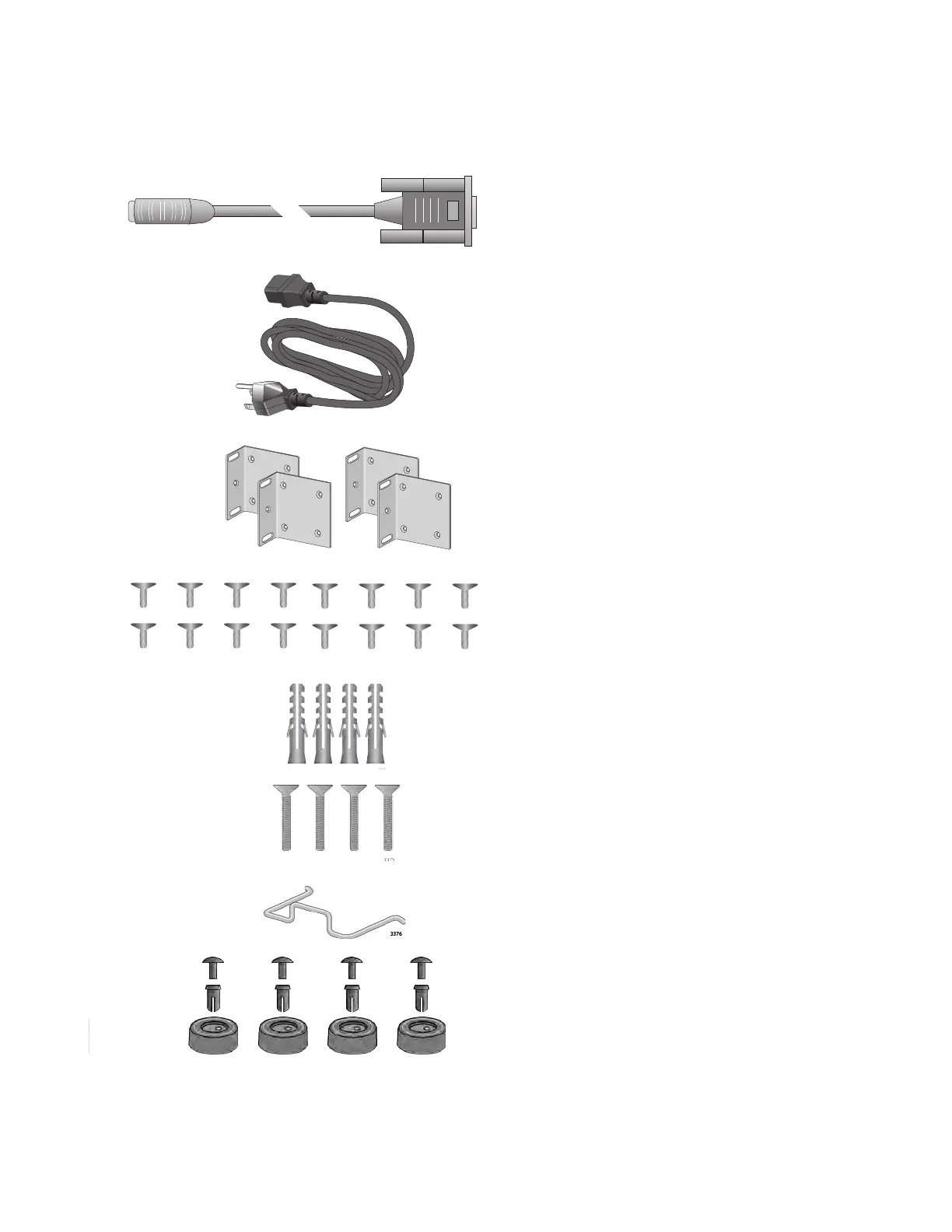

Figure 39. GS980MX/18HSm Switch Accessory Kit
2047
One 2m (6.6 ft) local management
cable with RJ-45 (8P8C) and DB-9 (D-
sub 9-pin) connectors.
Sixteen screws for attaching the
wall/equipment rack brackets to the
switch.
Length: 6.0mm (0.2 in.)
Diameter: 4.0mm (0.2 in.)
One regional AC power cord
Four anchors for concrete walls:
Length: 29.6mm (1.2 in.)
Diameter: 6.0mm (0.2 in.)
Four screws for wood or concrete
walls:
Length: 32mm (1.3 in.)
Diameter: 4mm (0.2 in.)
Power cord retaining clip
1417
1570
Four wall mounting brackets
Four rubber bumper feet
1947
1947
2047
