GS980MX/28PSm
The GS980MX/28PSm LEDs indicate Link/Activity (L/A) and PoE
(PD ON/PD ERR/MAX CURRENT) information. These LEDs are shown in
Figure 15.

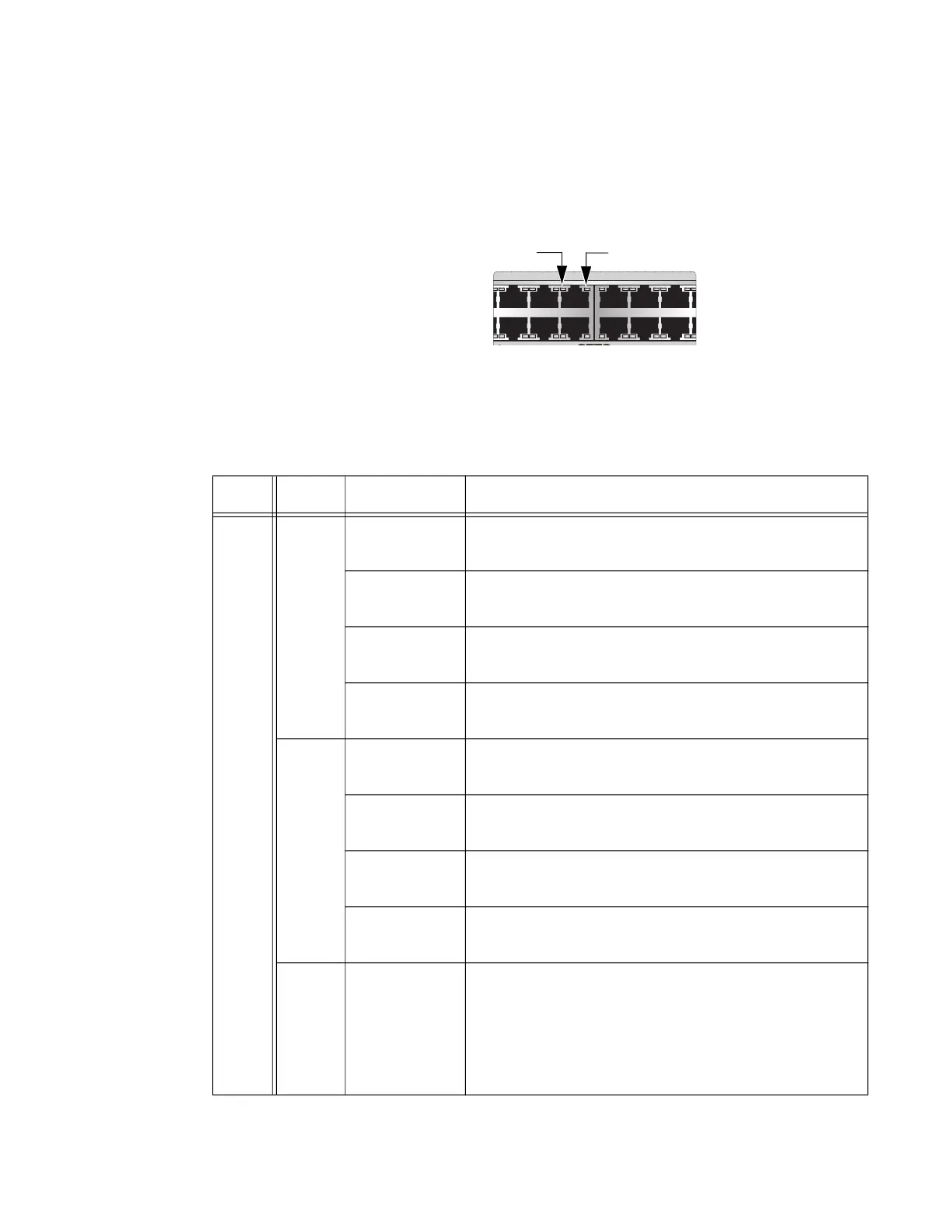

Figure 15. GS980MX/28PSm Twisted Pair Ports 1-24 LEDs
The states of the GS980MX/28PSm LEDs are described in Table 11.
7 9 11 13 15 17
16 1814
81012
OS
L/A LED PoE LED
Table 11. GS980MX/28PSm Twisted Pair Ports 1-24 LED Functions
LED Ports State Description
L/A
1-20
Solid Green The port has established a 1Gbps link to a network
device.
Flashing
Green
The port is transmitting or receiving data at 1Gbps.
Solid Amber The port has established a 10Mbps or 100Mbps link
to a network device.
Flashing
Amber
The port is transmitting or receiving data at 10Mbps
or 100Mbps.
21-24
Solid Green The port has established a 1/2.5/5Gbps link to a
network device.
Flashing
Green
The port is transmitting or receiving data at
1/2.5/5Gbps.
Solid Amber The port has established a 100Mbps link to a
network device.
Flashing
Amber
The port is transmitting or receiving data at
100Mbps.
Off Possible causes of this state are:
- The port has not established a link with another
network device.
- The LEDs are turned off. To turn on the LEDs, use
the eco-friendly button.
