GS980MX Series Installation Guide for Virtual Chassis Stacking
133

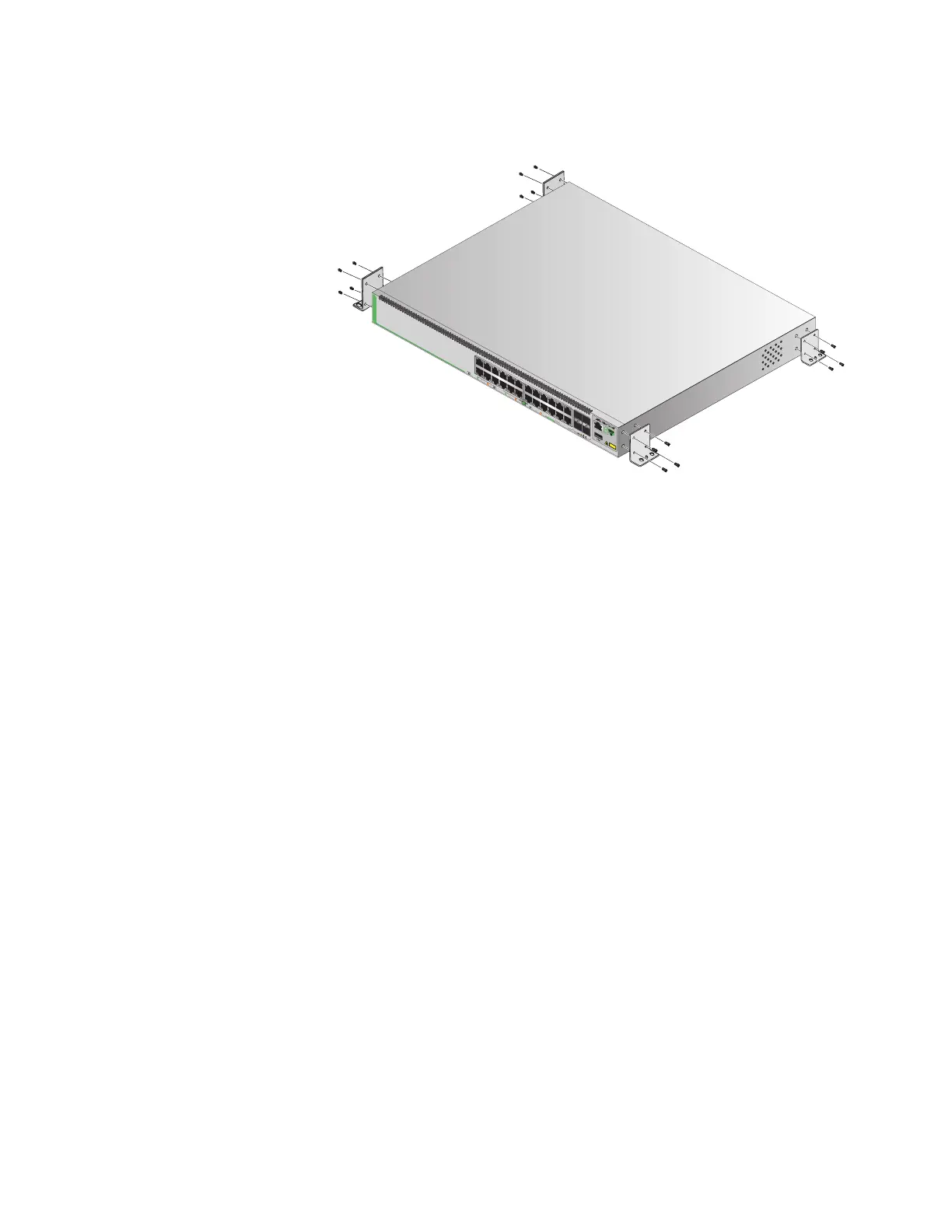

Figure 73. Installing Four Brackets on the GS980MX/10HSm, GS980MX/
18HSm, GS980MX/52 or GS980MX/52PSm Switch
3. After attaching the brackets, have another person hold the switch
on the plywood base on the wall while you secure it with the
M4x32.3mm screws included with the switch. Refer to Figure 74 on
page 134 for the GS980MX/28 or GS980MX/28PSm switch or Figure
75 on page 135 for the GS980MX/10HSm, GS980MX/18HSm,
GS980MX/52 or GS980MX/52PSm switch.
Follow these guidelines as you position the switch on the wall:
Position it so that the front panel is facing left or right. Refer to
Figure 68. Do not install it with the front panel facing up or down.
Provide sufficient space from other devices or walls so that you can
access the front and back panels, and for adequate air flow for
ventilation.
