Allied Telesis AlliedWare Plus GS980MX Series User Manual

Chapter 5: Installing the Switch in an Equipment Rack
116
5. Install two M4x6mm screws included with the RKMT-J15 using the first
set of holes to secure the switch to the bracket. Refer to Figure 61.

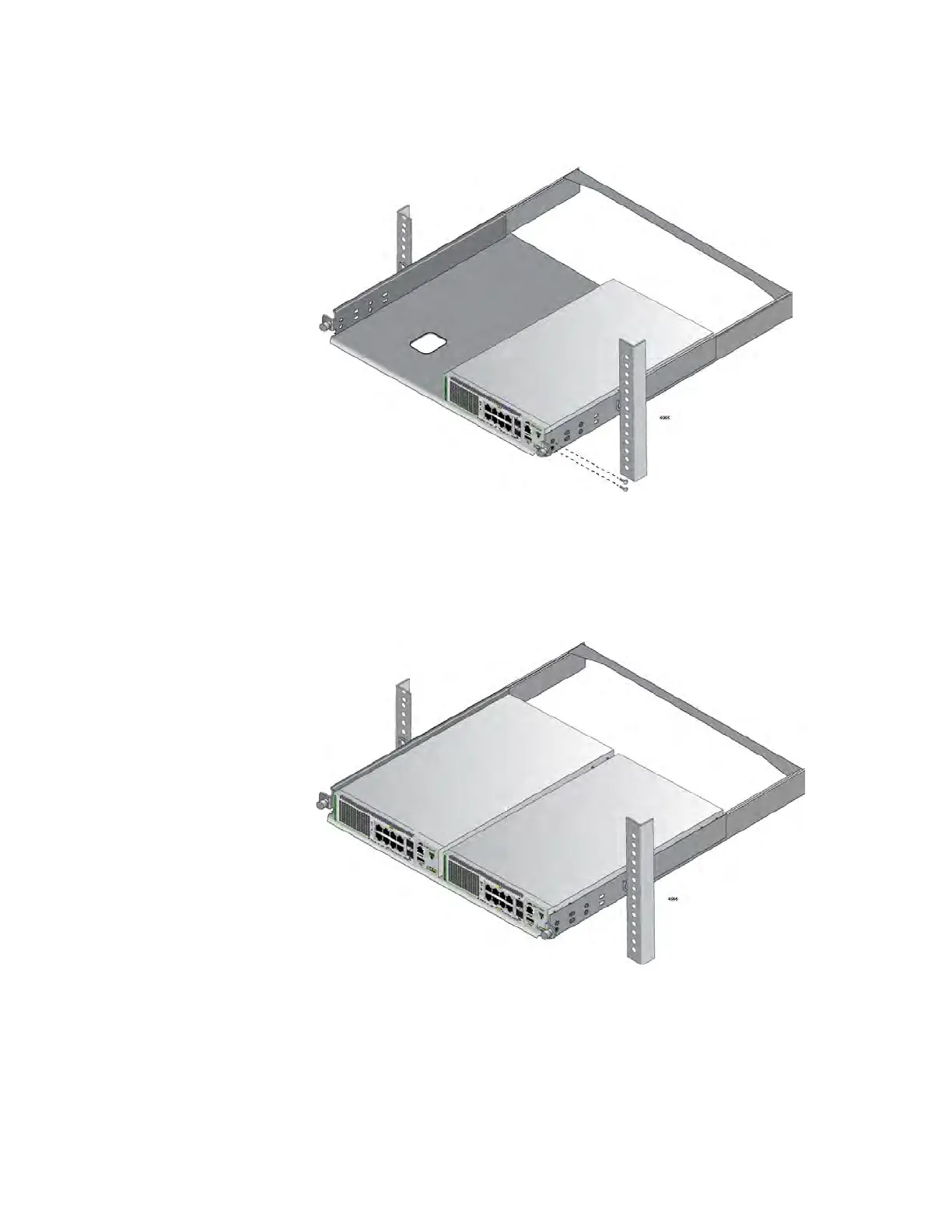

Figure 61. Securing the GS980MX/10HSm Switch to the RKMT-J15
Bracket
6. To install a second switch in the bracket, repeat steps 4 and 5.
7. Slide in the bracket tray. Refer to Figure 62.
Figure 62. Sliding in the Bracket
8. Tighten the two thumbscrews to secure the bracket to the rack. Refer
to Figure 63.
