Chapter 5: Installing the Switch in an Equipment Rack
120
To install the switch in a 19-inch equipment rack, perform the following
procedure:
1. Place the switch on a level, secure surface.
2. Attach the two brackets to the sides of the switch in the selected
position, using the eight M4x6mm screws supplied with the unit. The
illustration in Figure 66 shows the installation of the brackets such that
the front panel of the switch is even with the front of the equipment
rack.

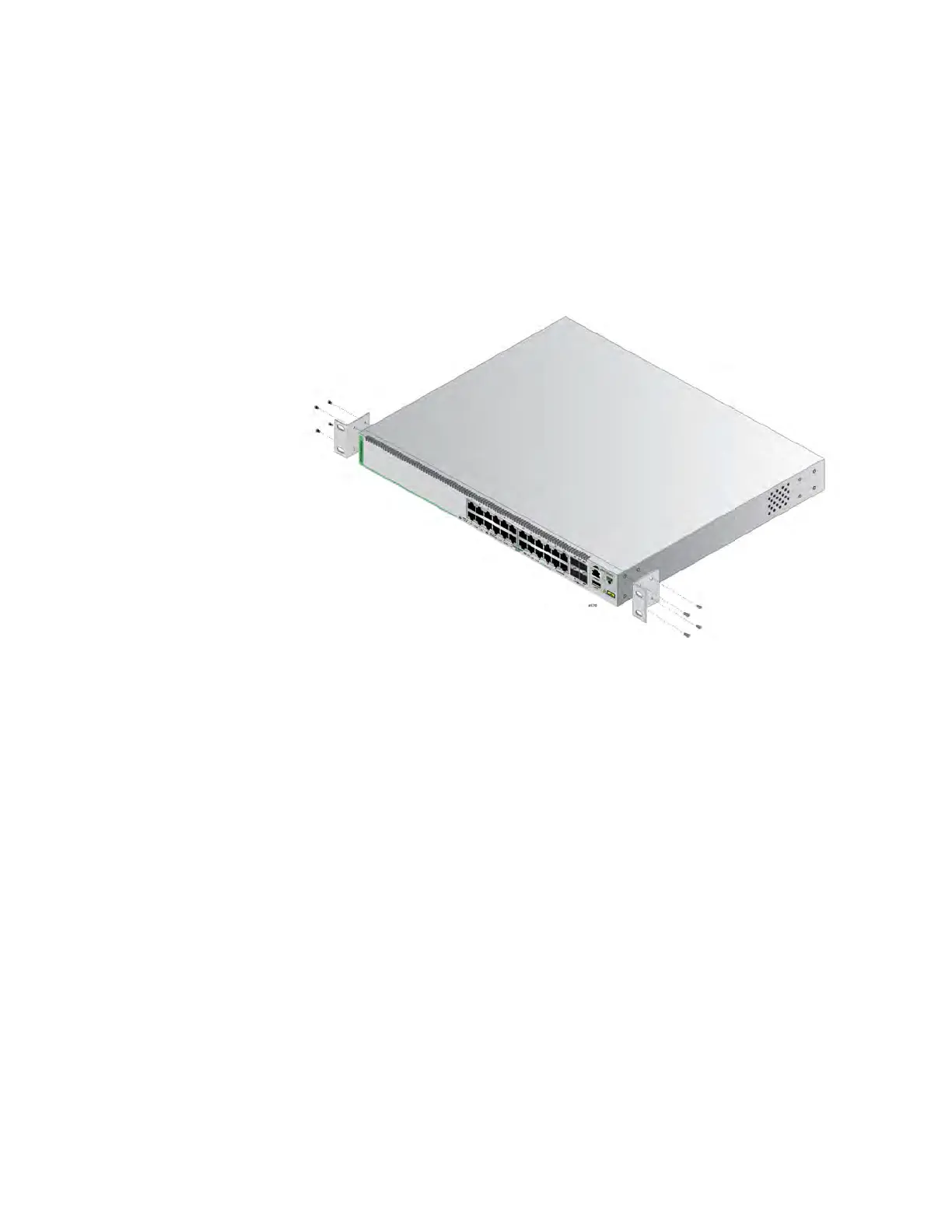

Figure 66. Example of Attaching the Brackets to the Switch
