GS980MX Series Installation Guide for Virtual Chassis Stacking
145
2. Power on the switch you want assigned ID number 1 by connecting its
power cord to the AC connector on the back panel and to an
appropriate power source. Refer to Figure 79.

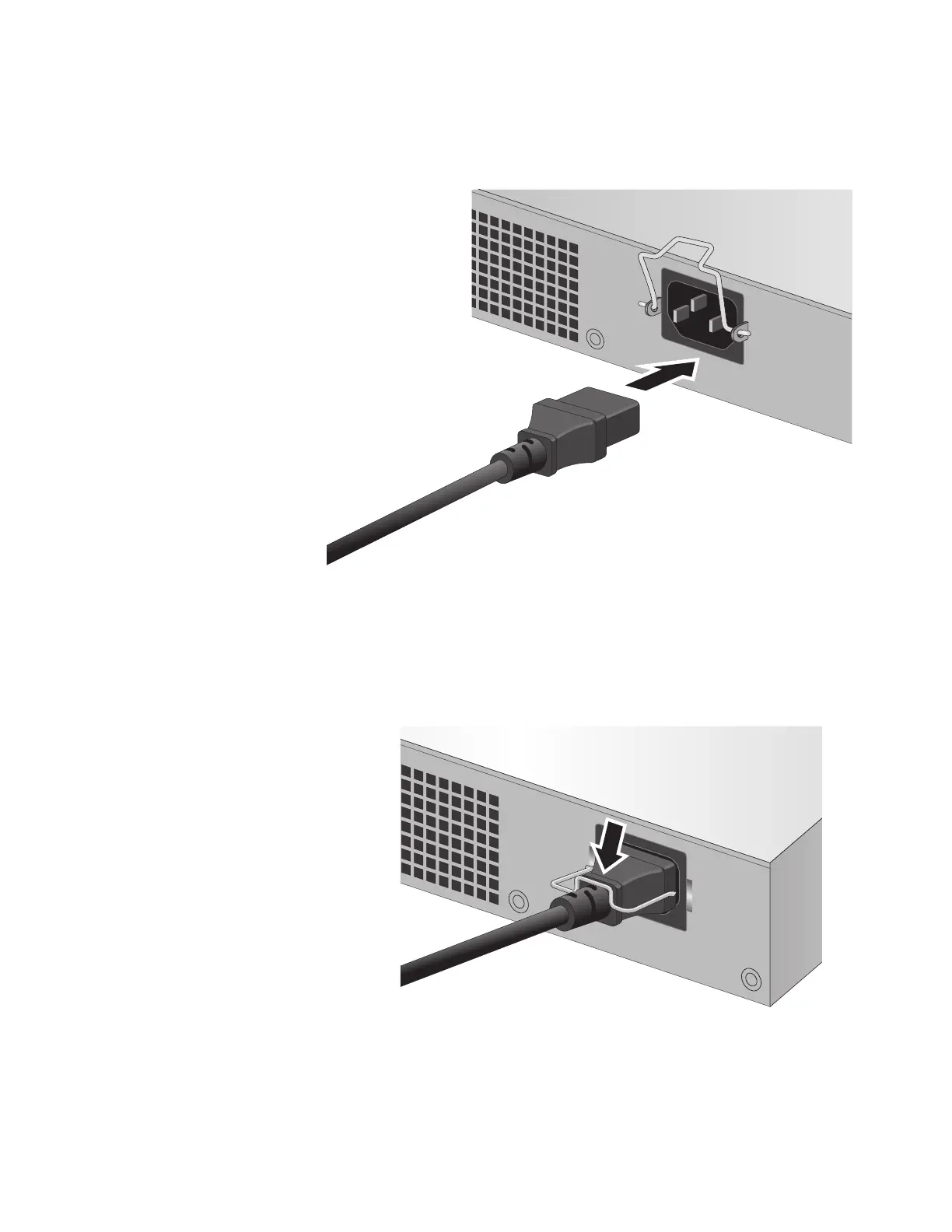

Figure 79. Plugging in the AC Power Cord to the Switch
3. Lower the power cord retaining clip to secure the cords to the switch.
Refer to Figure 80.
Figure 80. Lowering the Power Cord Retaining Clip
100-240 VAC~
4589
100-240 VAC~
4590
