Chapter 5: Installing the Switch in an Equipment Rack
118
Installing the GS980MX/18HSm, GS980MX/28, GS980MX/28PSm,
GS980MX/52, or GS980MX/52PSm Switch in an Equipment Rack
This section contains the procedure for installing the GS980MX/18HSm,
GS980MX/28, GS980MX/28PSm, GS980MX/52, or GS980MX/52PSm
switch in a standard 19-inch equipment rack using the brackets supplied
with the unit.
Required Items The following items are required to install the switch in an equipment rack:
Two equipment rack brackets (included with the switch)
Eight M4x6mm bracket screws (included with the switch)
Cross-head screwdriver (not provided)
Four standard equipment rack screws (not provided)
Switch
Orientations in
the Equipment
Rack
The switch has two sets of four screw holes on the left and right sides, for
attaching the brackets. Refer to Figure 64.

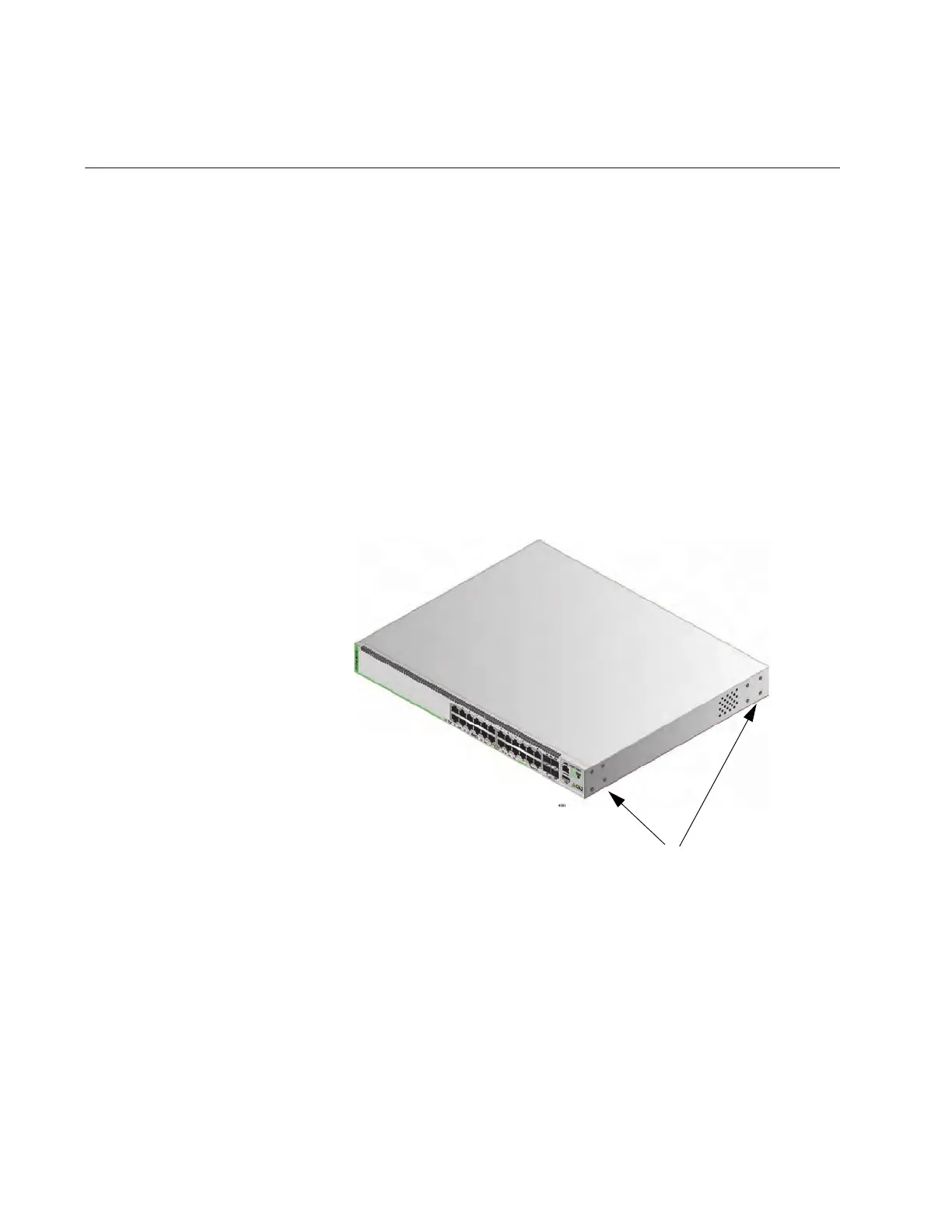

Figure 64. Bracket Holes on the Switch
Bracket Holes
To Next Page
