GS980MX Series Installation Guide for Virtual Chassis Stacking
35
LEDs Each twisted pair port has two LEDs that display the port status.
GS980MX/10HSm
The LEDs indicate Link/Activity (L/A) and PoE (PD ON/PD ERR/MAX
CURRENT) information. These LEDs are shown in Figure 12.

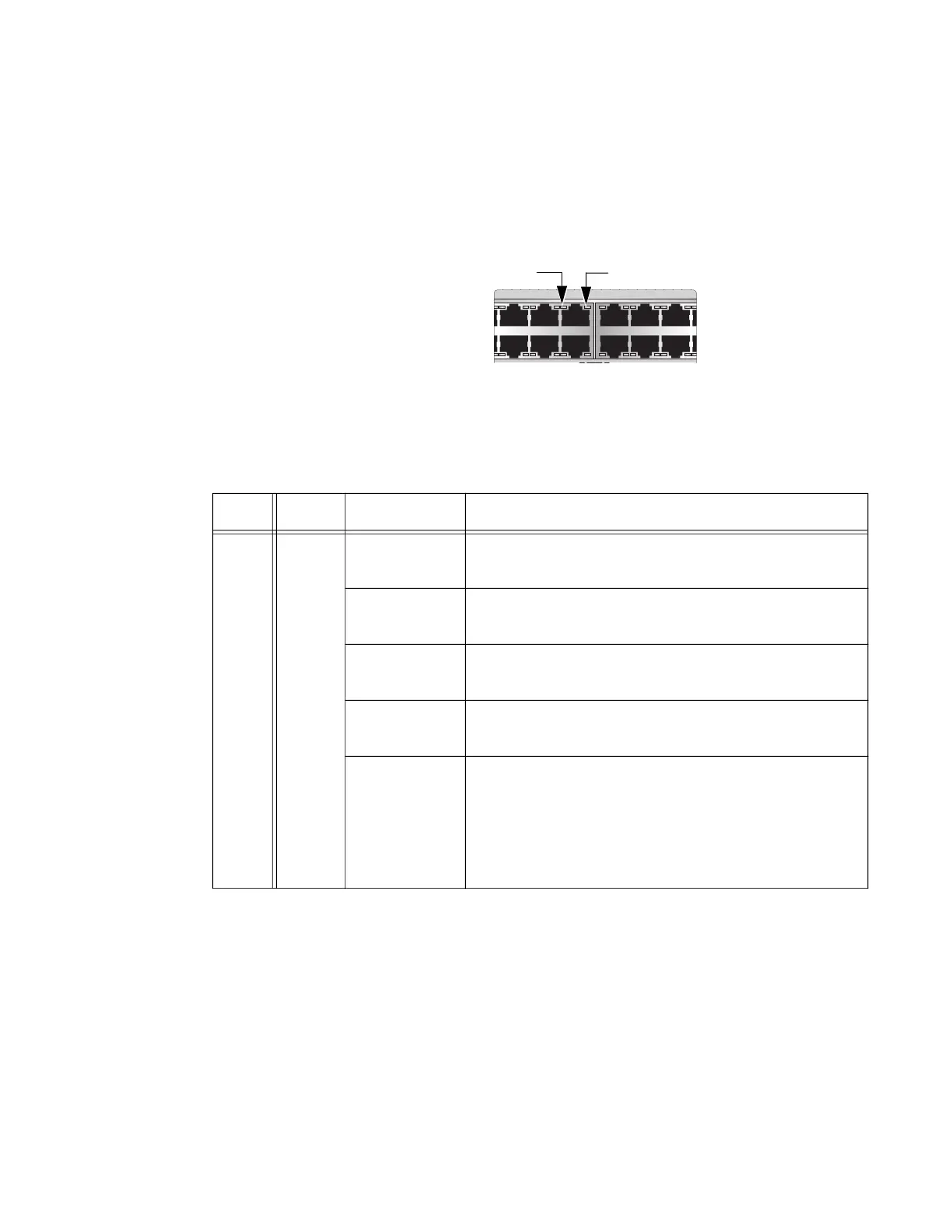

Figure 12. GS980MX/10HSm Twisted Pair Ports
The states of the GS980MX/10HSm LEDs are described in Table 8.
7 9 11 13 15 17
16 1814
81012
L/A LED PoE LED
Table 8. GS980MX/10HSm Twisted Pair Ports 1-8 LED Functions
LED Ports State Description
L/A 1-8
Solid Green The port has established a 1/2.5/5Gbps link to a
network device.
Flashing
Green
The port is transmitting or receiving data at
1/2.5/5Gbps.
Solid Amber The port has established a 100Mbps link to a
network device.
Flashing
Amber
The port is transmitting or receiving data at
100 Mbps.
Off Possible causes of this state are:
- The port has not established a link with another
network device.
- The LEDs are turned off. To turn on the LEDs, use
the eco-friendly button.
